Model:
|
IR-Sensor-V03-S
|
|
Application:
|

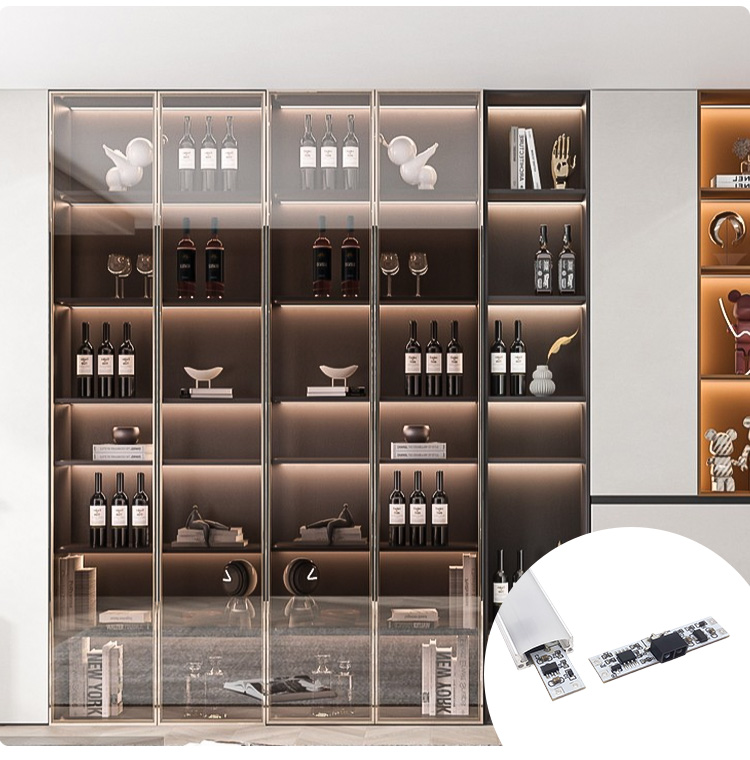

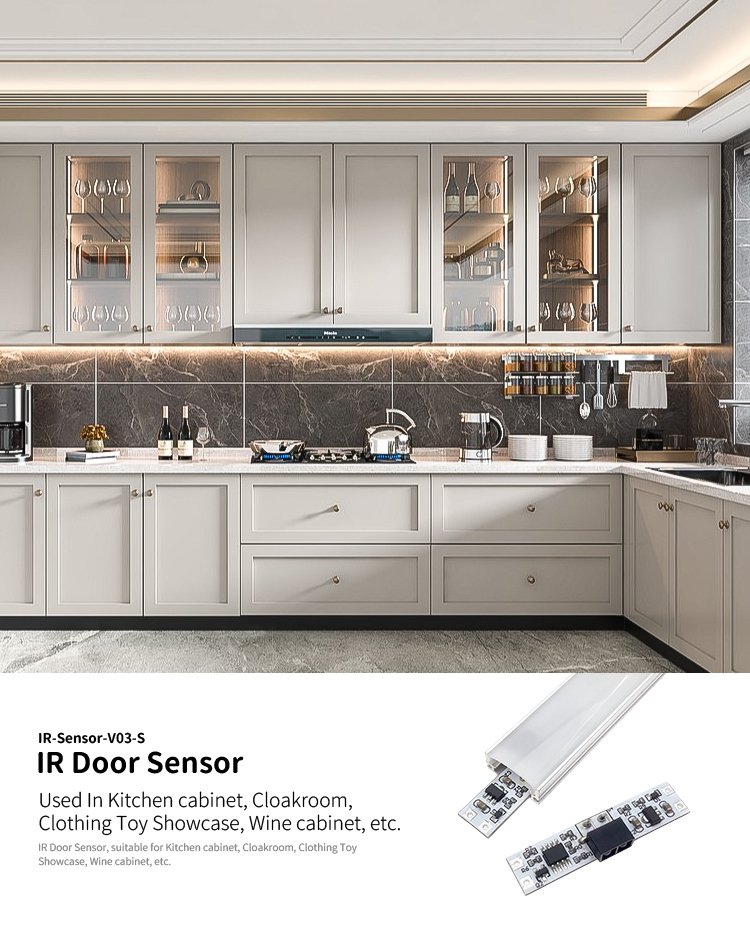

Kitchen cabinet, Cloakroom, Clothing Toy Showcase, Wine cabinet
|
|
Features :
|
With blocking sensor
|
|
Voltage:
|
DC12V-24V
|
|
Power:
|
36W
|
|
Current:
|
3A
|
|
Delay time:
|
3sec
|
|

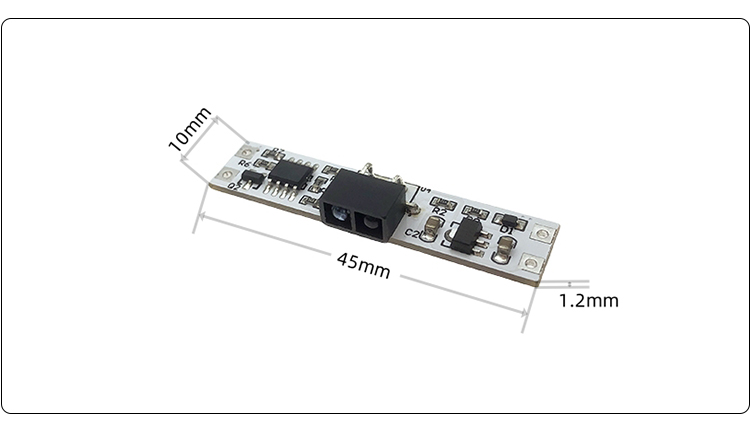

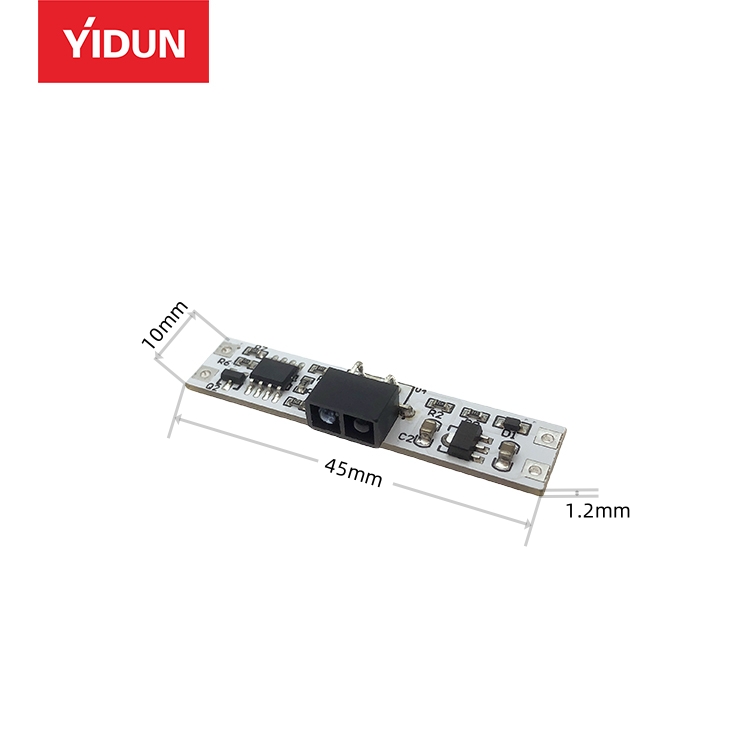

Size:
|
45*10*1.2mm
|
|
Material :
|
PCB
|
|

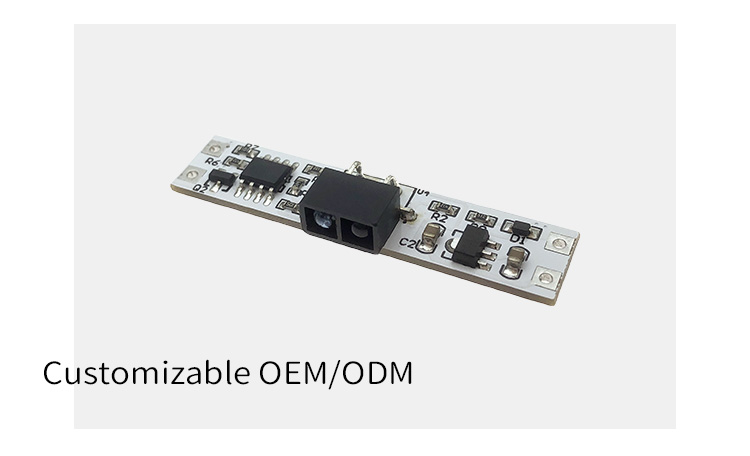

Customizable
|
Support
|
Detailed Description
-
Product Definition

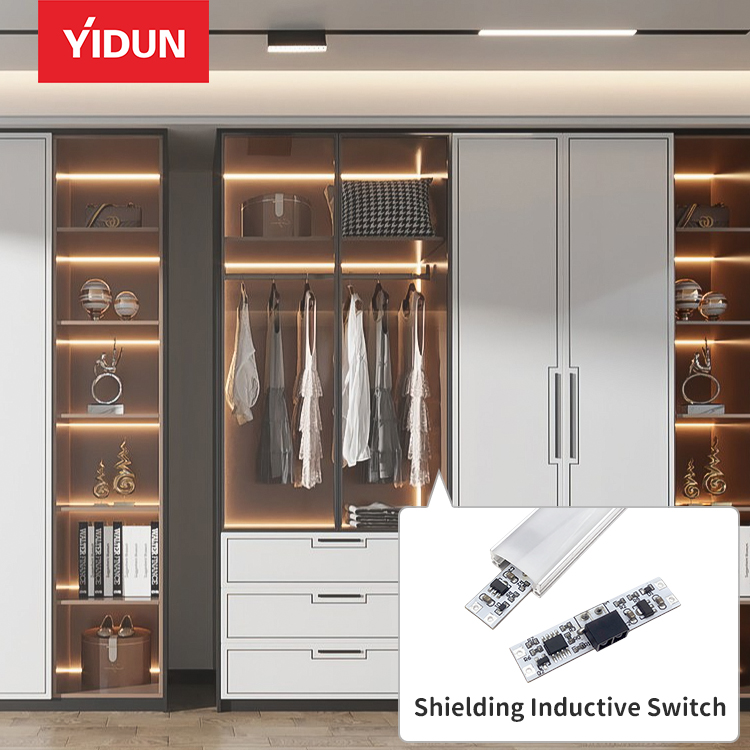

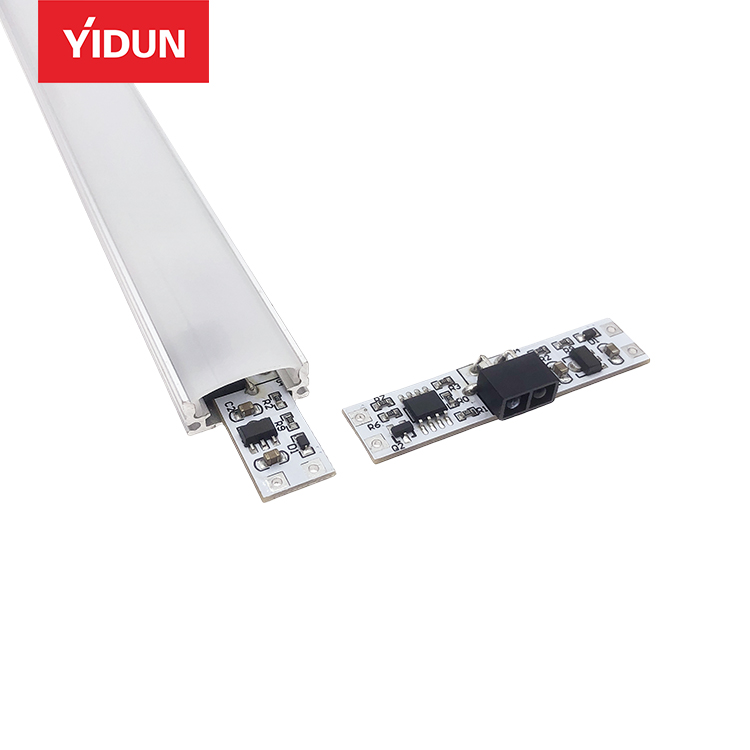

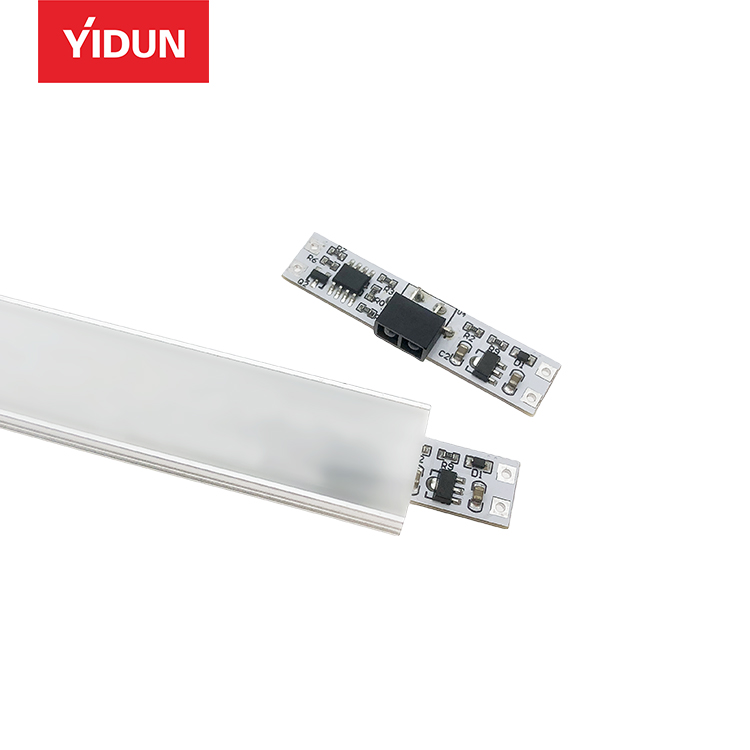

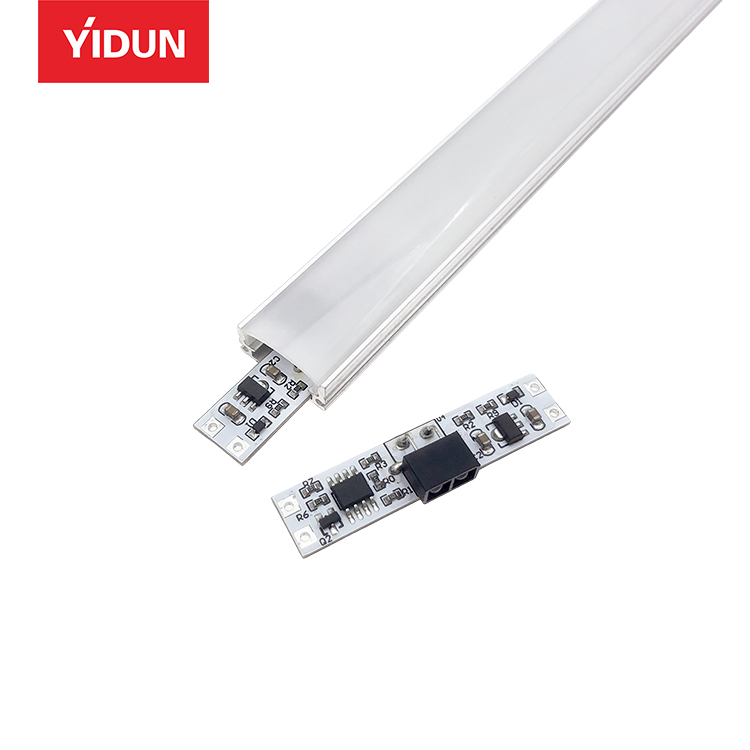

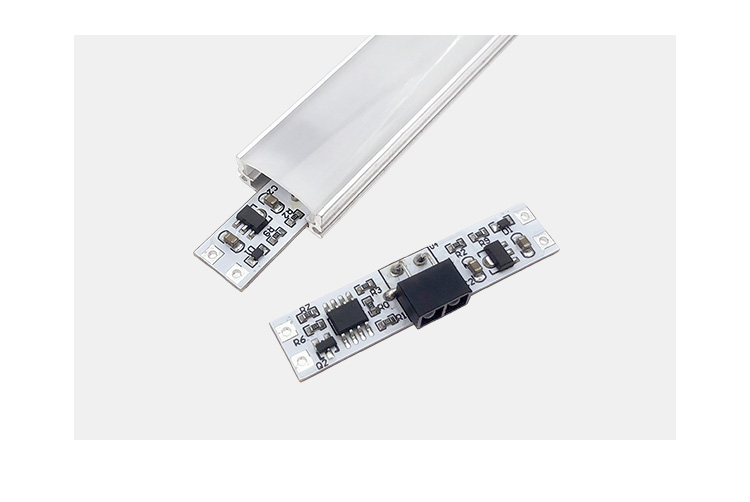

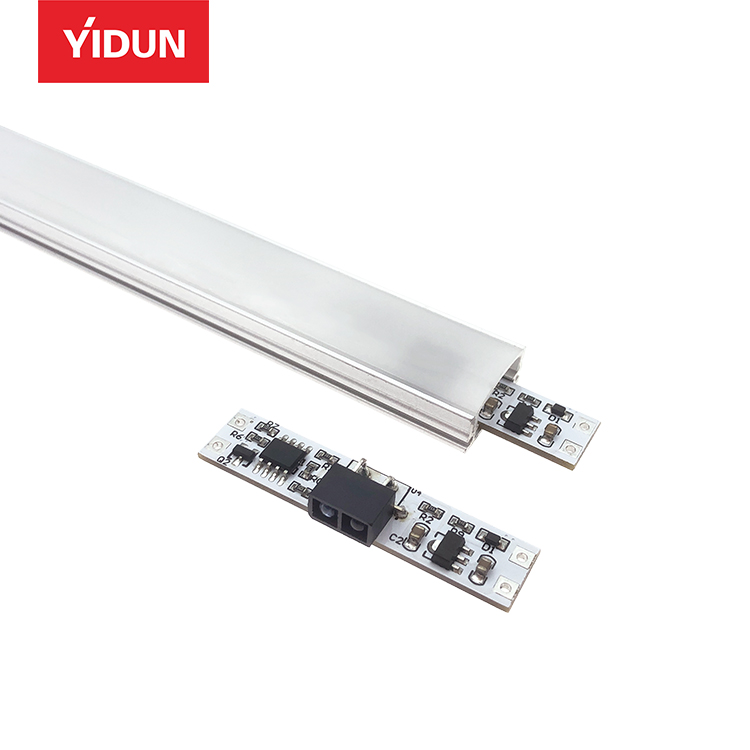

The LED IR door control switch (model IRSensorSD-5A-238) is a lighting control device designed for DC12V/24V LED systems. It uses infrared sensing to detect door movement, automatically switching LED lights on when the door opens and off when it closes, providing convenient hands-free operation and energy savings.
-
Key Features
• Infrared detection of door movement for automatic LED switching
• Compatible with DC12V or DC24V LED lighting systems
• Max. current handling up to 5A for typical LED loads

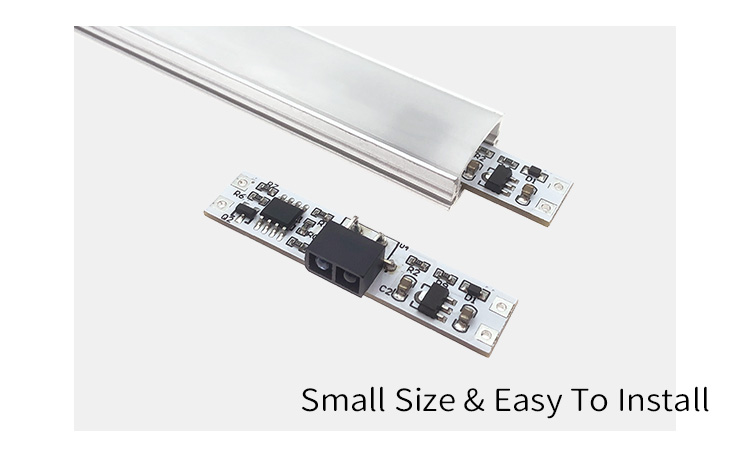

• Compact, easy installation in cabinets or wardrobes
• Energy-saving, hands-free control
-
Typical Applications

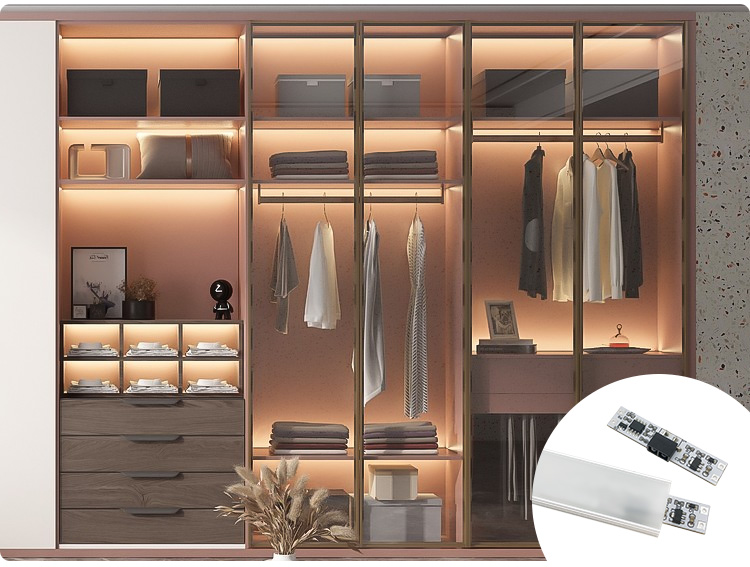

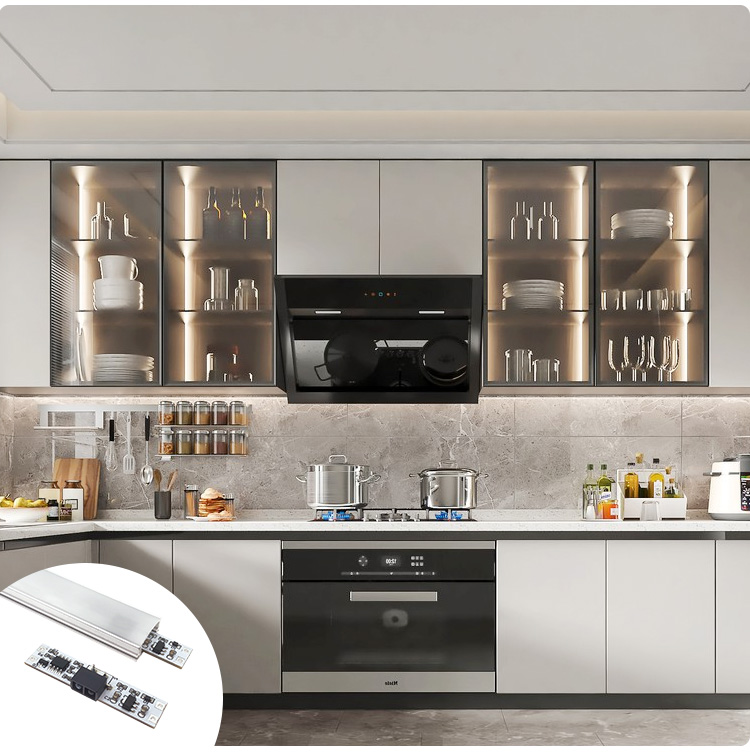

• Cabinet and wardrobe LED lighting control
• Under-shelf or display case LED systems
• Corridor or closet lighting automation
• Furniture integrated lighting control
-
Working Principle

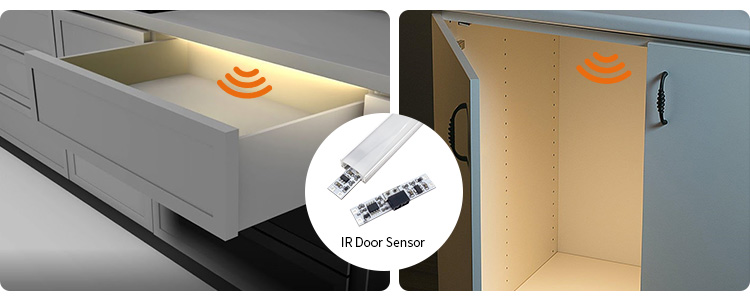

The built-in IR sensor monitors changes in infrared energy when a door is opened or closed. When the sensor detects movement within the activation range, it triggers the LED lights to turn on. Once the door closes or no movement is detected, the lights turn off automatically to save power.
-
Installation & Usage Notes
• Connect only to a suitable DC12V/24V LED power supply — do NOT connect directly to high-voltage mains.
• Install the sensor so that it can reliably detect the door’s motion.
• Confirm wiring polarity and secure connections for stable operation.
-
Summary
The IRSensorSD-5A-238 LED IR door control switch offers smart automatic control for low-voltage LED lighting, enhancing convenience, safety, and energy efficiency in cabinet, wardrobe, or similar indoor lighting applications.
To meet your needs for cabinet and wardrobe lighting, we offer a range of smart LED switches suitable for both 12V and 24V power sources. Whether it's an LED cabinet light or an LED wardrobe light, our switch designs cover various operating methods, ensuring your lighting experience is more convenient and flexible.
LED Cabinet Light Switch Series:
LED Cabinet Switch: Specifically designed for 12V and 24V, providing reliable power control for your cabinets to ensure bright illumination.
LED Cabinet Light Hand Sweep Switch: Utilizing advanced hand sweep technology, a gentle sweep easily lights up the LED cabinet light, offering simple operation.
LED Cabinet Light Touch Switch: Modern touch-sensitive design, a light touch achieves the on/off control of the LED cabinet light, providing a convenient user experience.
LED Cabinet Light Motion Sensor Switch: Integrated with motion sensor technology, intelligently sensing your presence to offer smart lighting control for your cabinet.
LED Cabinet Light Radar Sensor Switch: Incorporating radar sensor technology for quicker, more precise detection of environmental changes, creating a more efficient lighting system for your cabinet.
LED Wardrobe Light Switch Series:
LED Wardrobe Switch: Suitable for both 12V and 24V, providing reliable power control for wardrobe lighting, showcasing your clothing in bright illumination.
LED Wardrobe Light Hand Sweep Switch: Advanced hand sweep technology instantly adds brightness to your wardrobe, unique and convenient.
LED Wardrobe Light Touch Switch: Modern touch-sensitive design for easy control of wardrobe lighting, creating a stylish clothing display space.
LED Wardrobe Light Motion Sensor Switch: Integrated with motion sensor technology, intelligently sensing your needs and providing thoughtful lighting for your wardrobe.
LED Wardrobe Light Radar Sensor Switch: Utilizing radar sensor technology for more intelligent and efficient control of wardrobe lighting, creating an ideal environment for showcasing your clothing.
Whether you choose an LED cabinet light switch or an LED wardrobe light switch, we are committed to providing advanced, convenient, and reliable solutions to add vibrancy to your home environment.
