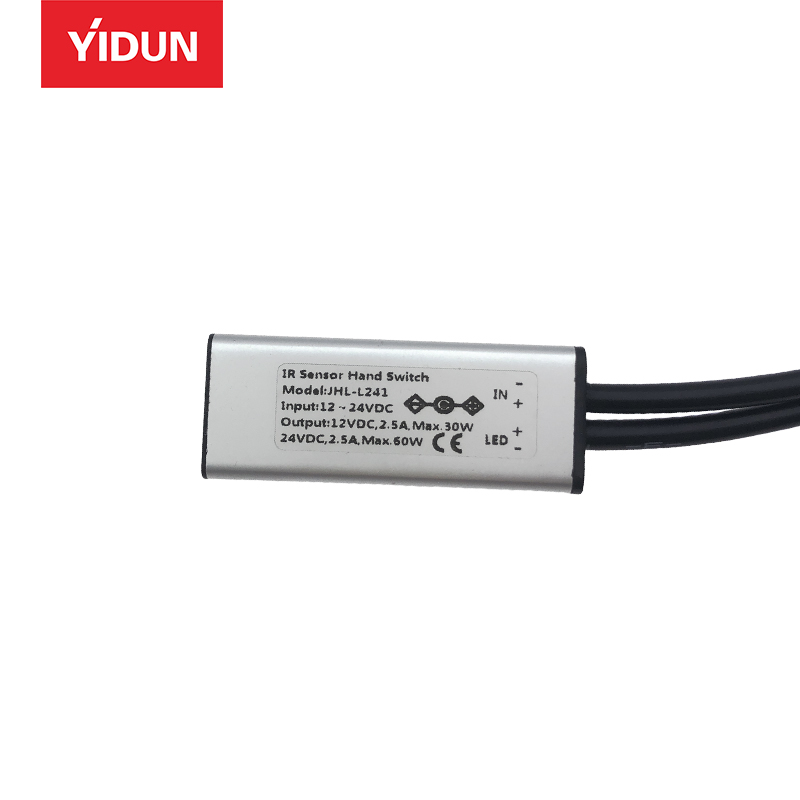

LED IR Door Blocking Sensor Switch (Model JHL-L241) – Cabinet Door LED Control

Detailed Description

Product Definition

The LED IR door blocking sensor switch (Model JHL-L241) is a compact infrared sensor controller designed for LED cabinet and wardrobe lighting. It detects door movement or obstruction within a short sensing range and automatically turns the connected LED lights on or off.

Key Features

• Infrared door detection for automatic LED control
• Designed for cabinet and wardrobe lighting systems
• Compatible with DC12V–24V LED lighting
• Compact sensor body for concealed installation
• Stable sensing performance with adjustable distance

Technical Specifications

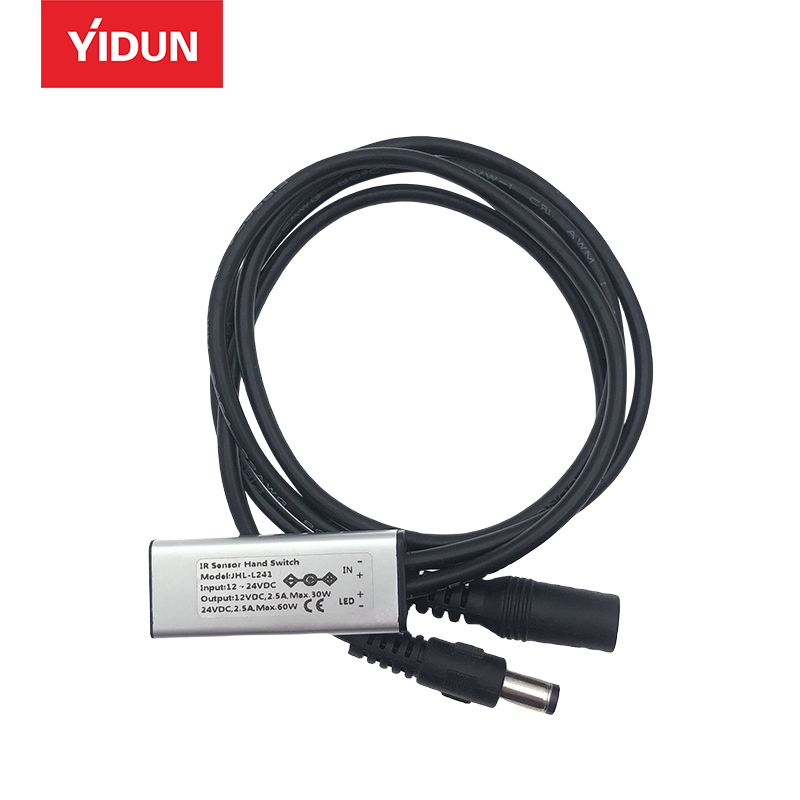

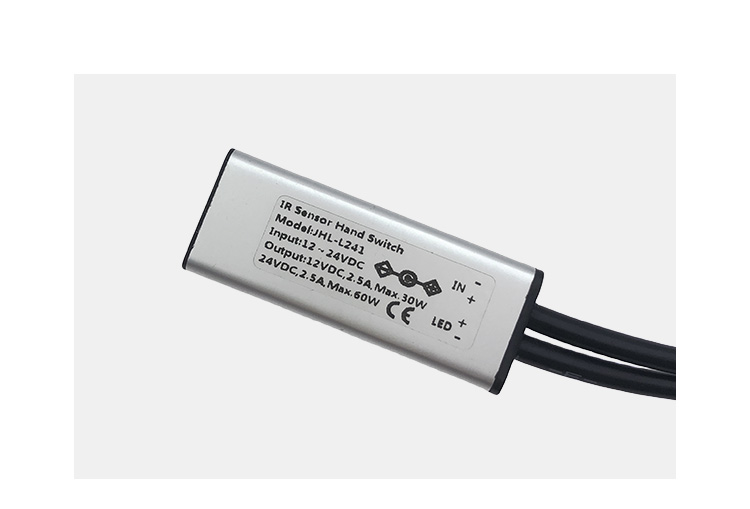

• Model: JHL-L241
• Type: LED IR Door Blocking Sensor Switch
• Input Voltage: DC12V–24V
• Output Voltage: DC12V–24V
• Load Power: 60W
• Load Current: 2.5A
• Sensor Distance: Approx. 5 cm (adjustable 3–8 cm)

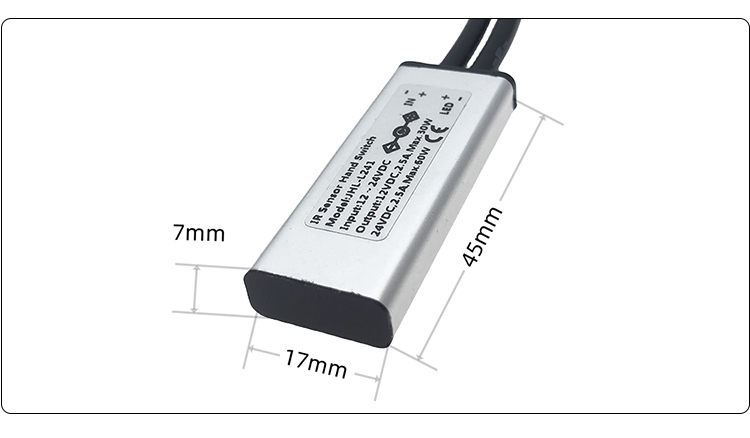

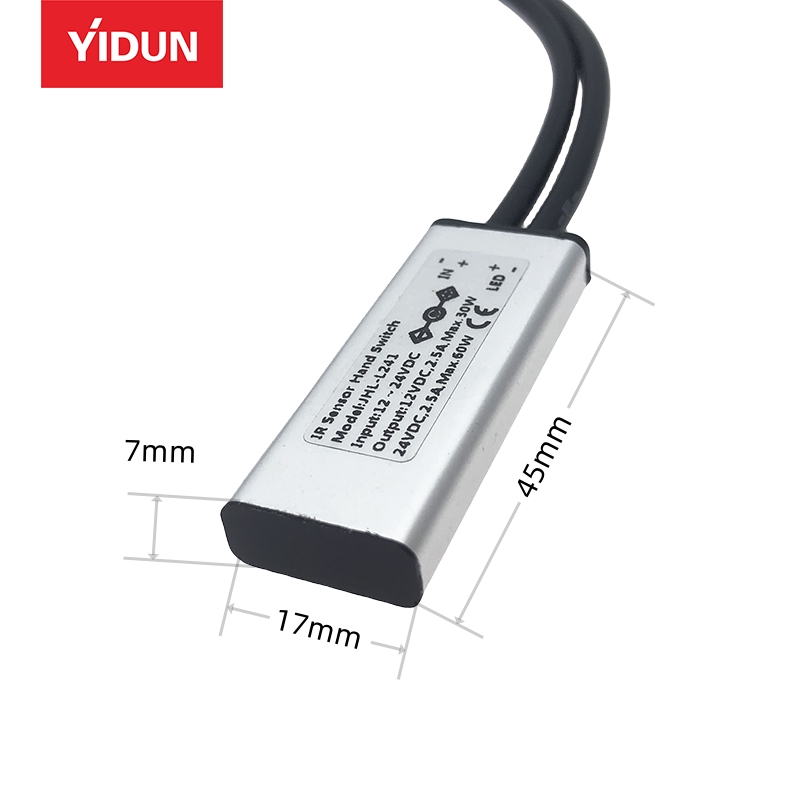

• Controller Size: 45 × 17 × 7 mm

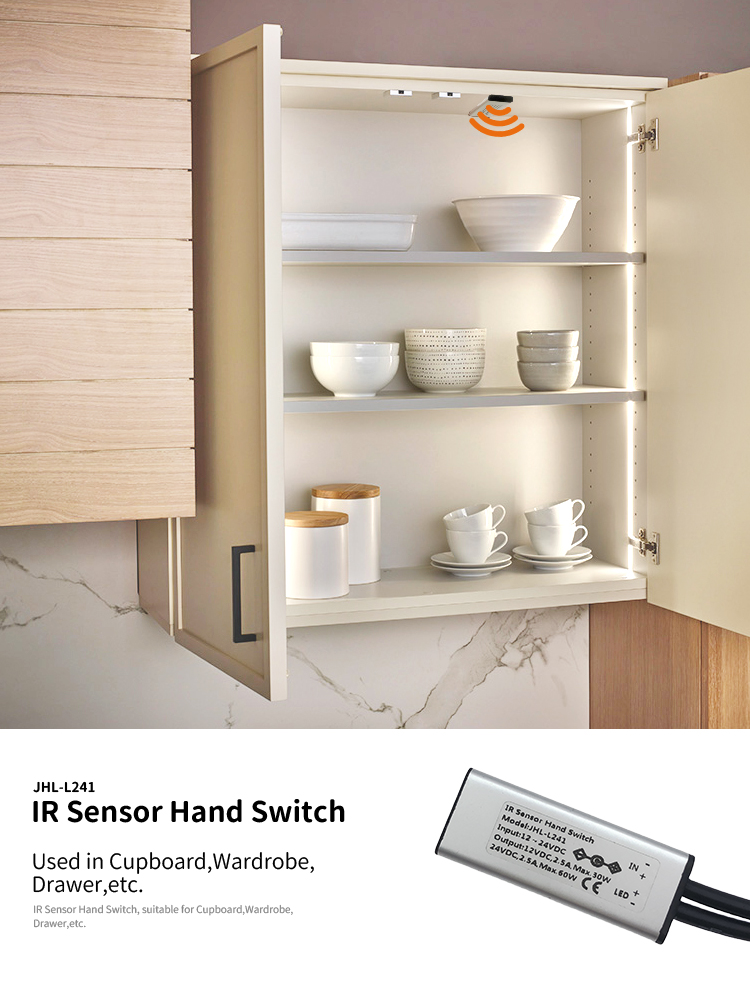

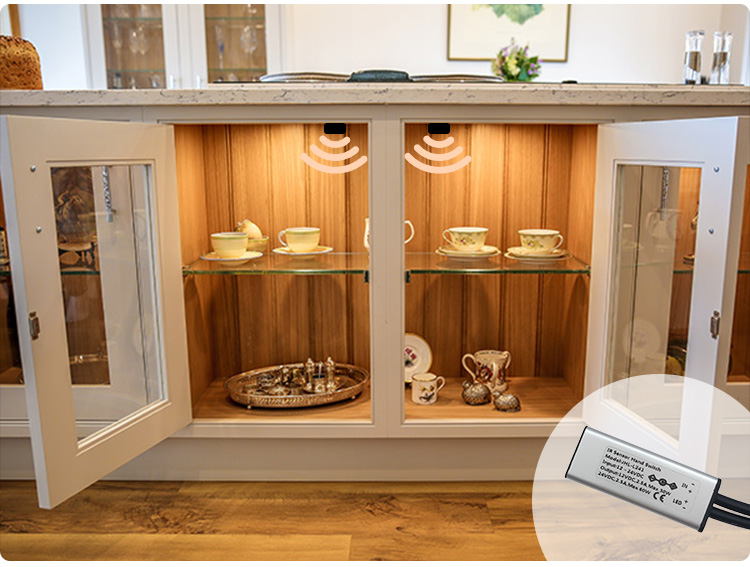

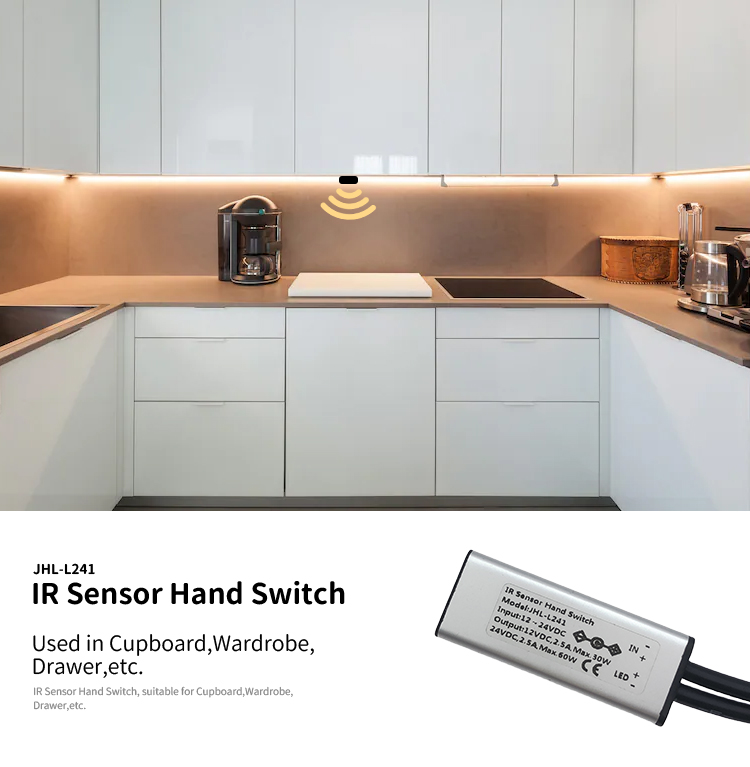

Typical Applications

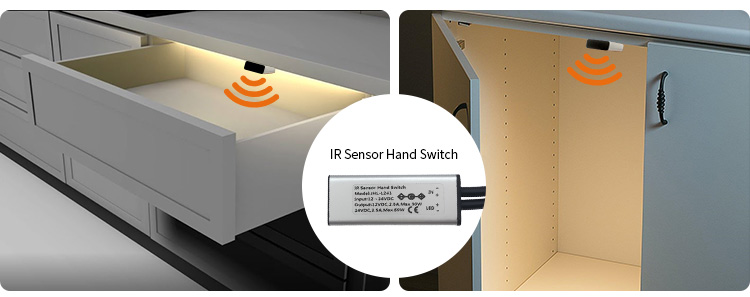

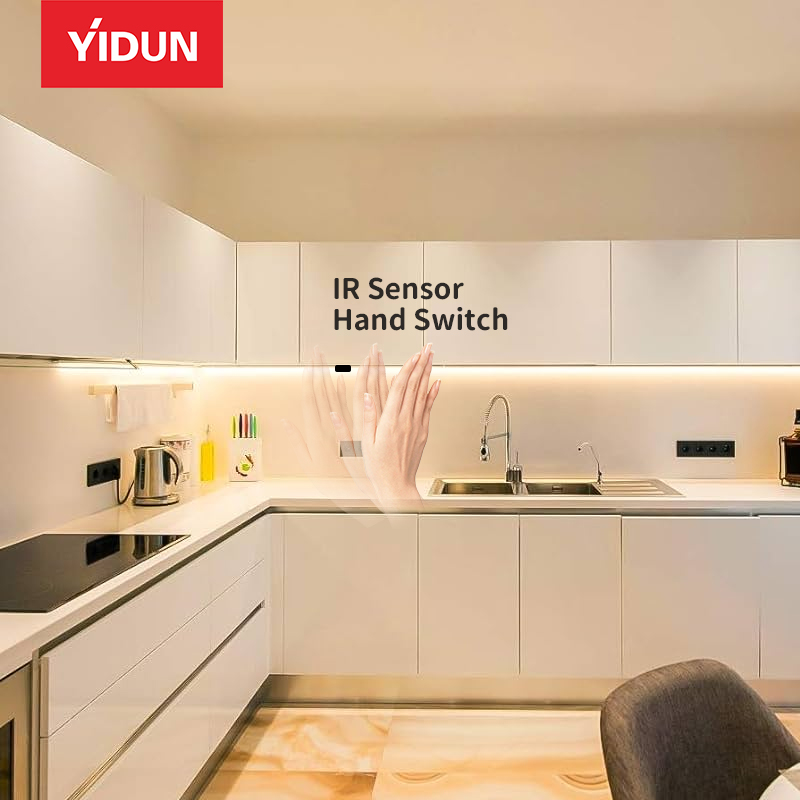

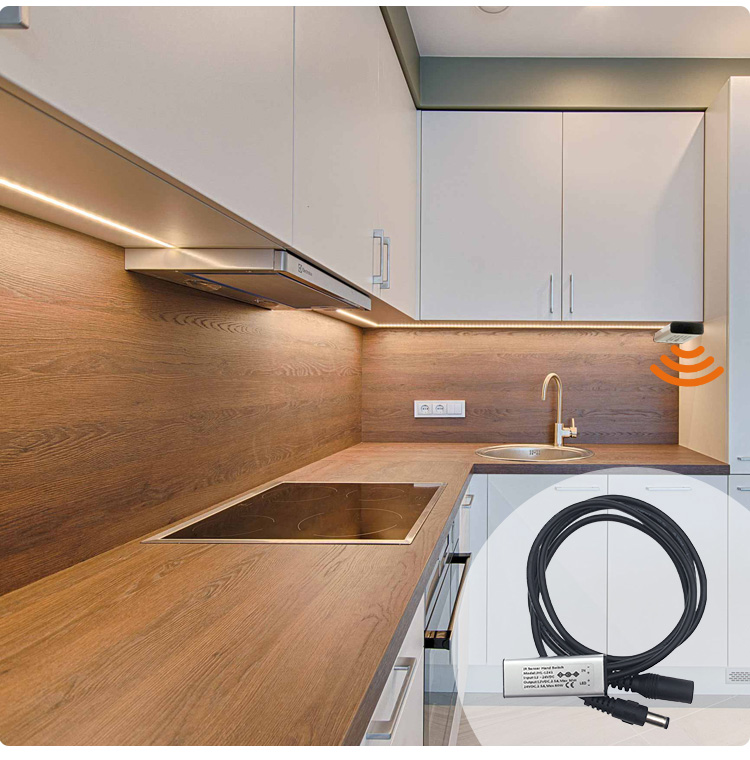

• LED cabinet lighting

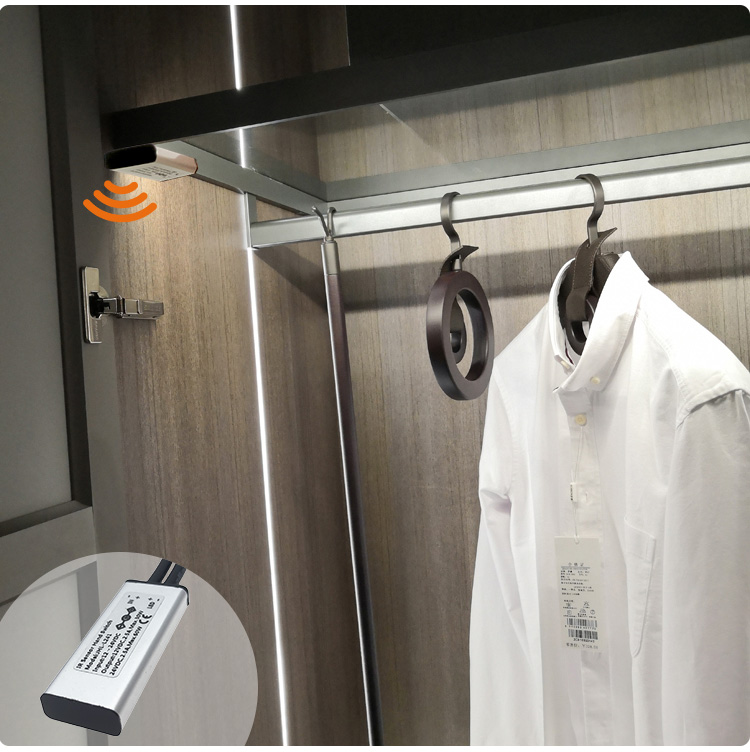

• Wardrobe lighting systems
• Closet lighting control
• Furniture LED lighting
• Display cabinet lighting

Working Principle

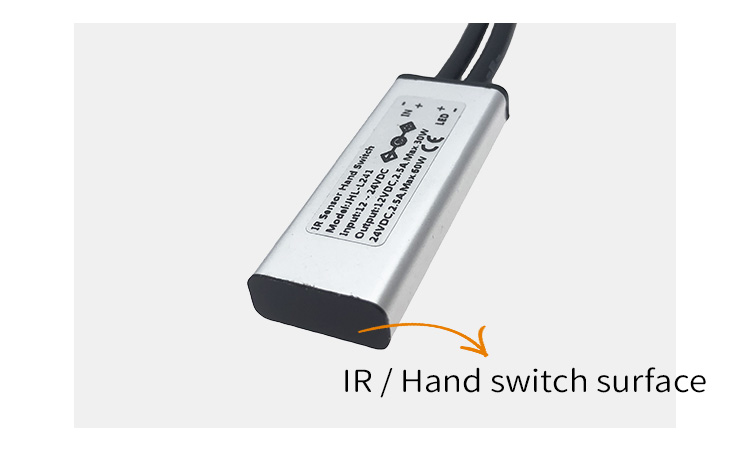

This infrared sensor switch detects the presence or absence of an object (such as a cabinet door) within its sensing distance. When the door opens or the obstruction is removed, the sensor activates the LED lighting; when the door closes, the lights turn off automatically.

Installation & Usage Notes

• Use with DC12V–24V constant-voltage LED power supplies
• Ensure LED load does not exceed 60W / 2.5A
• Install near cabinet doors or panels for reliable sensing
• Avoid placing reflective surfaces directly in front of the sensor

Benefits Summary

The JHL-L241 LED blocking sensor switch provides reliable automatic lighting control for cabinets and wardrobes, offering convenient hands-free operation and easy integration with low-voltage LED lighting systems.
