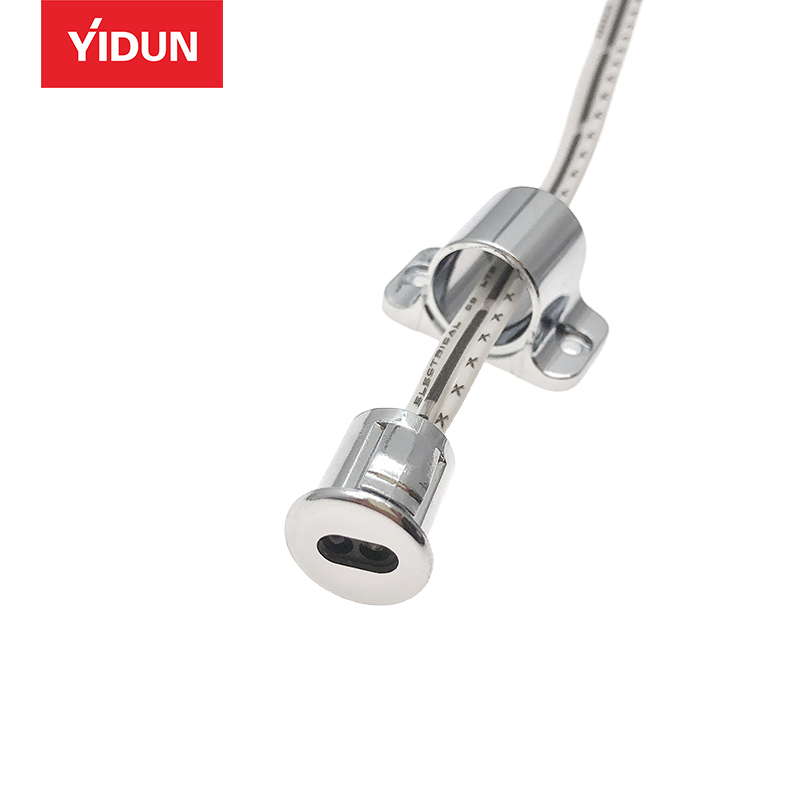

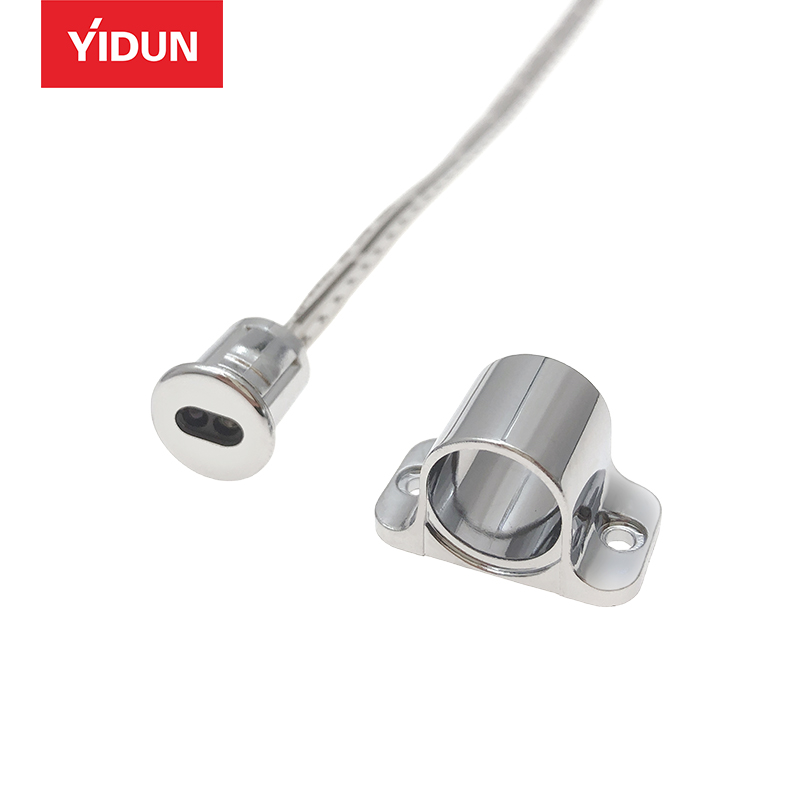

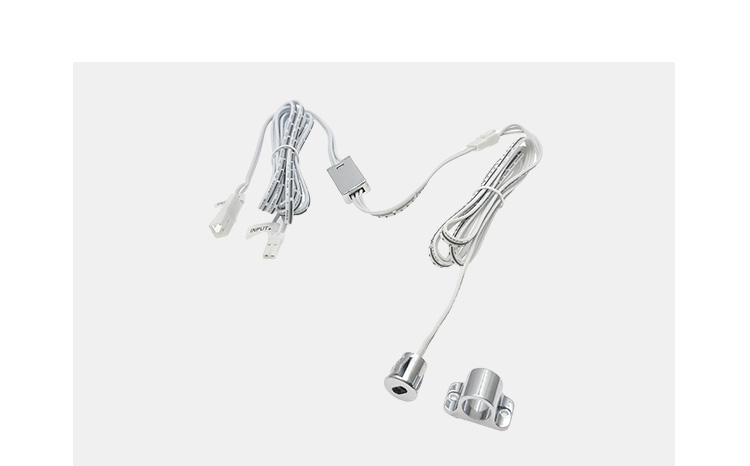

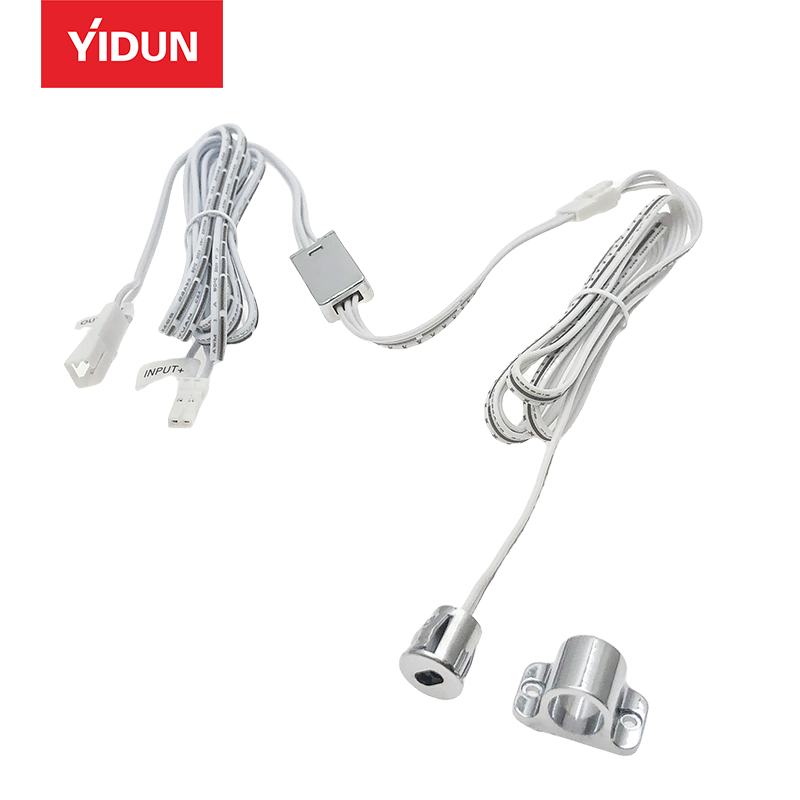

LED Hand Scan Sensor Switch (Model YD‑MZS‑05) – Proximity Hand‑Wave LED Control Switch

Product Definition

The LED hand scan sensor switch (Model YD‑MZS‑05) is a proximity sensor‑based LED controller that detects hand‑wave gestures to turn connected LED lights on or off. It provides intuitive, contact‑free control for LED lighting systems.

Key Features

• Proximity hand‑wave activation — no physical touch required
• Compatible with DC12 V–24 V constant‑voltage LED systems
• High load capacity up to 5 A / 60 W
• >5 mm sensing distance for reliable response

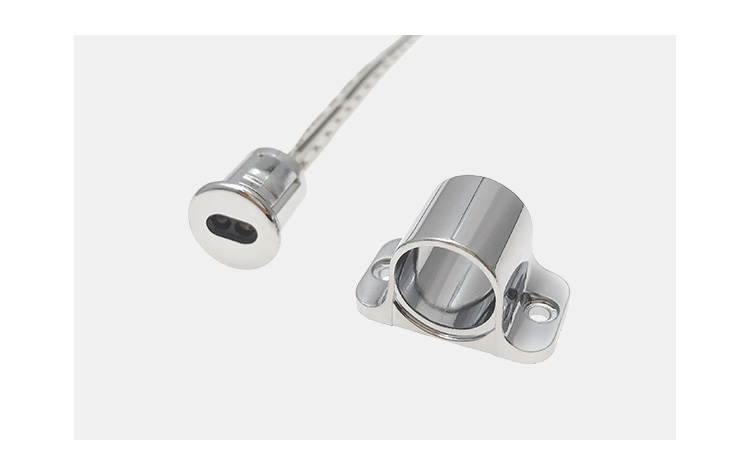

• Compact sensor design with Φ11 mm mounting hole
• Hidden installation behind cabinets or furniture

Technical Specifications

• Model: YD‑MZS‑05
• Sensor Type: Hand Scan / Proximity Inductive
• Input Voltage: DC12 V–24 V (constant voltage)
• Load Current: ≤5 A
• Load Power: ≤60 W
• Sensing Distance: >5 mm
• Hole Size: Φ11 mm

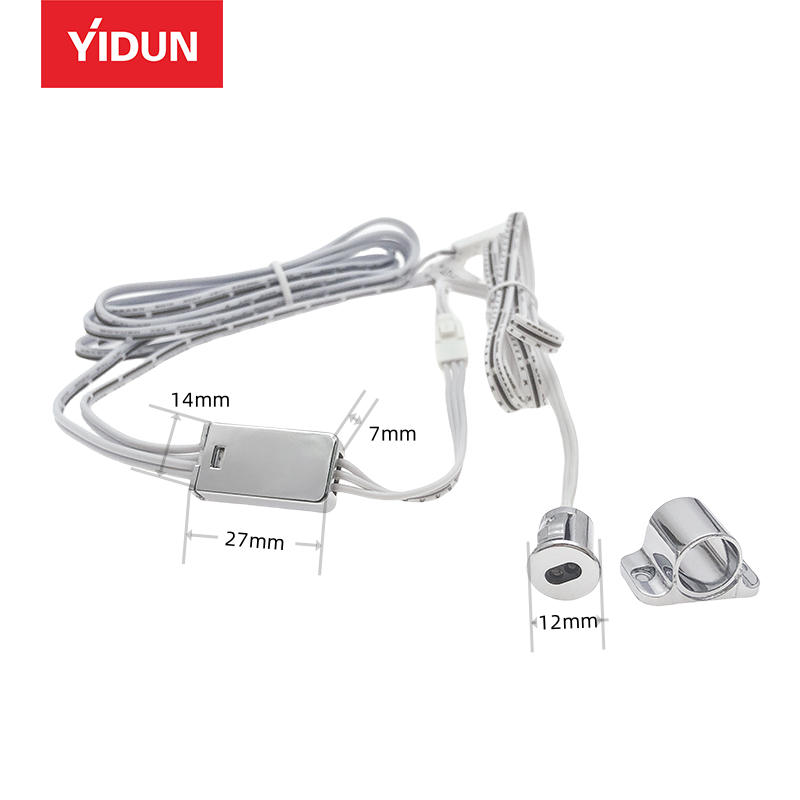

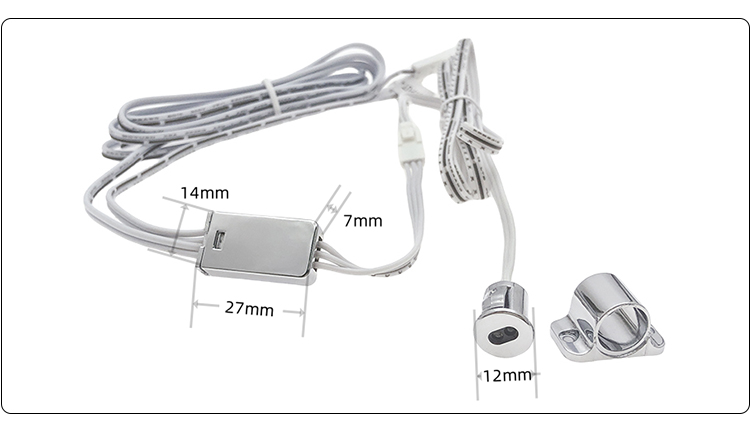

• Sensor Size: 21 × 14 × 14 mm

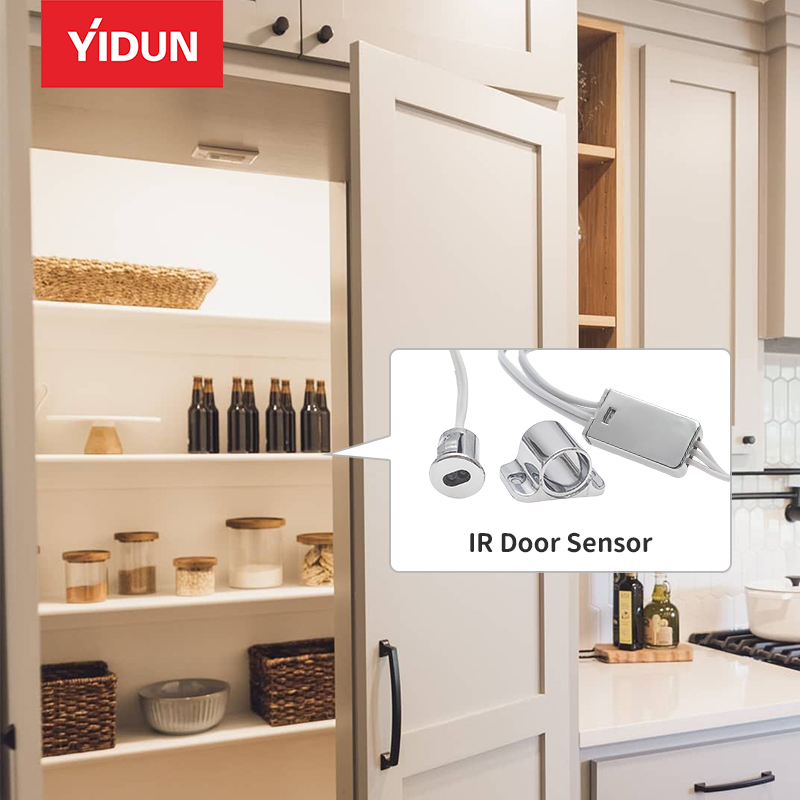

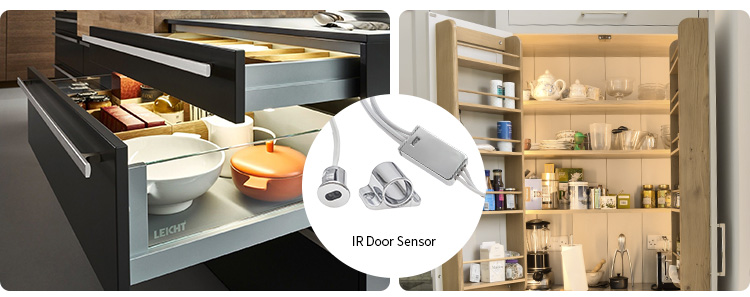

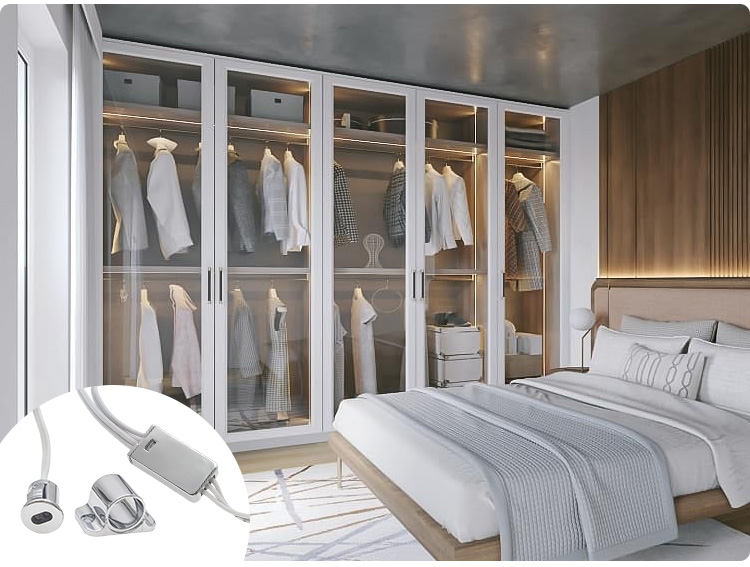

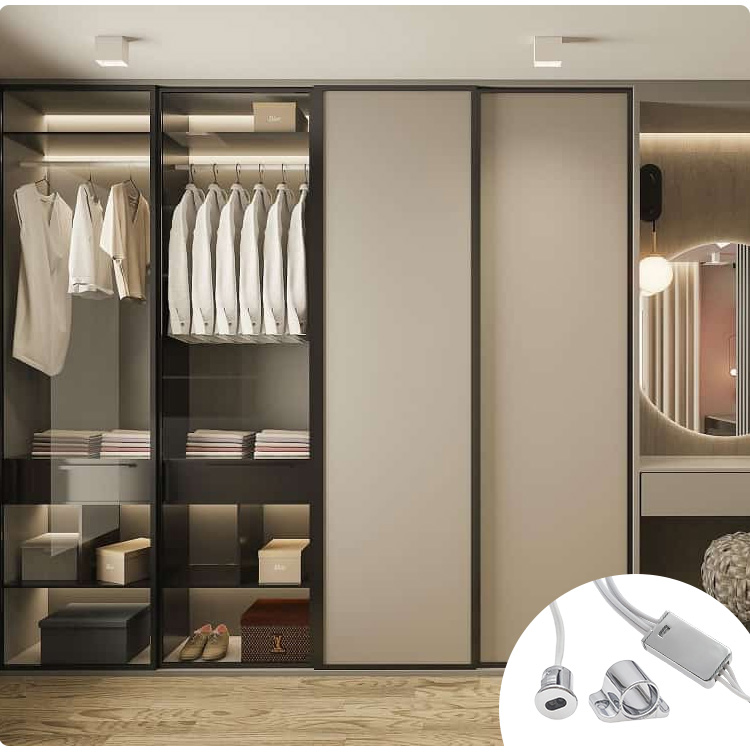

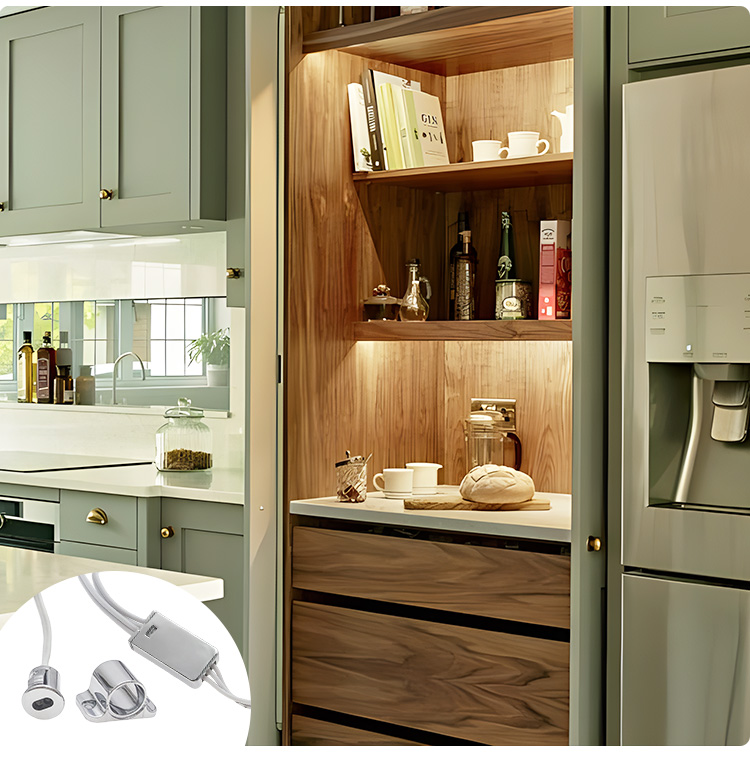

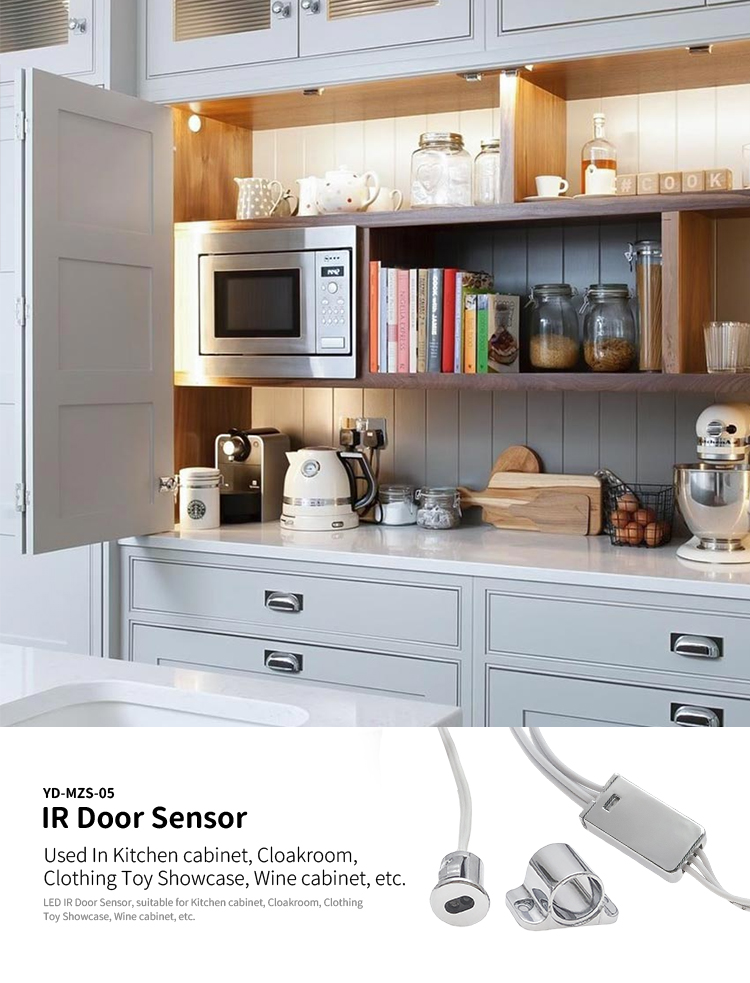

• Applications: Cabinet lights, wardrobe lights, shelves, furniture LED lighting

Typical Applications

• LED under‑cabinet lighting
• Wardrobe / closet LED lights
• Furniture integrated LED systems
• Bookshelf and display lighting
• Anywhere hands‑free LED control is preferred

Working Principle

This hand scan sensor switch uses a proximity detection mechanism to recognize a hand‑wave gesture near the sensor surface. When motion is detected within the sensing range, the controller toggles the LED lights on or off, providing an intuitive and contact‑free interaction.

Installation & Usage Notes

• Use with a DC12–24 V constant‑voltage LED driver — do NOT connect directly to mains AC.
• Ensure the connected LED load does not exceed 5 A / 60 W.
• Install the sensor in a position where gestures can be easily detected.
• Avoid obstructions near the sensor that could affect detection.
• Do not expose the unit to water or excessive moisture.

Benefits Summary

The YD‑MZS‑05 LED hand scan sensor switch delivers reliable, contact‑free LED on/off control with simple hand‑wave gestures. Its compact design and high load capacity make it suitable for modern indoor LED lighting automation in cabinets, wardrobes, and furniture.

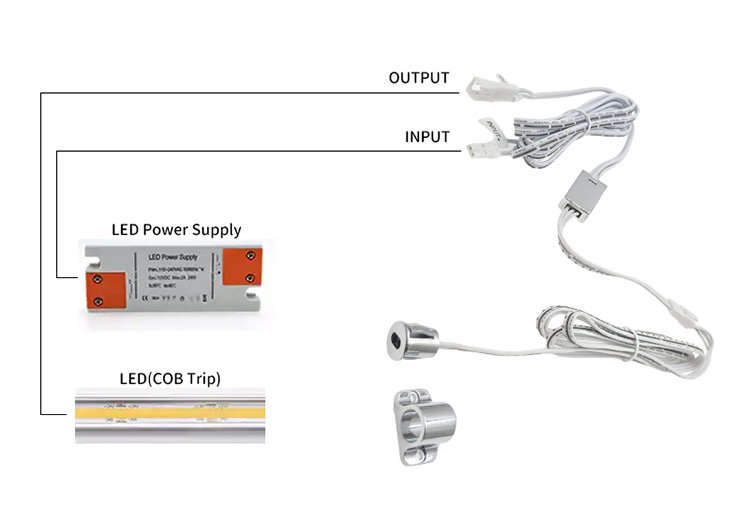

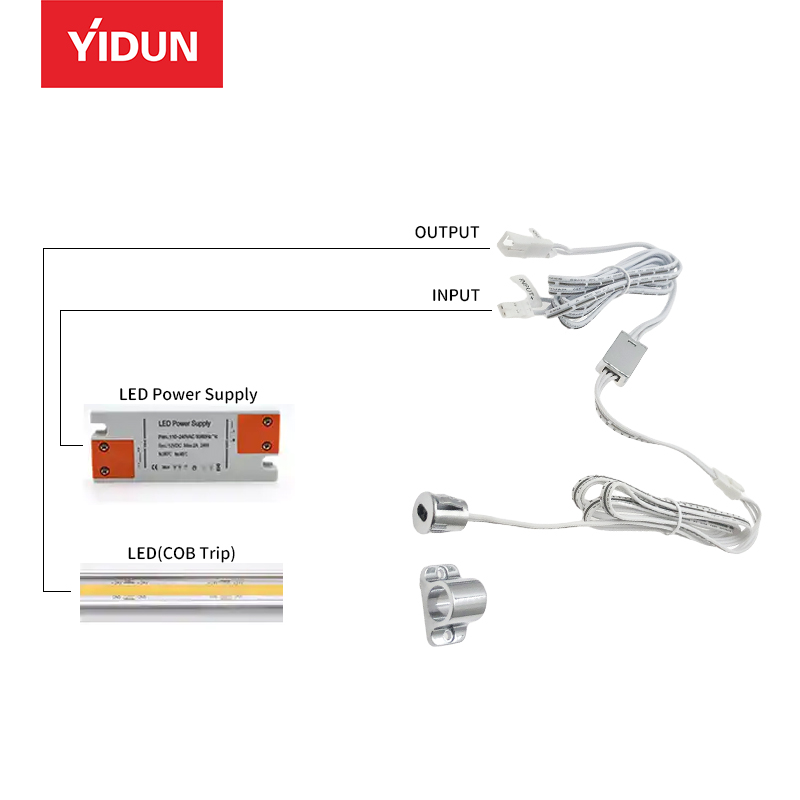

Installation diagram
