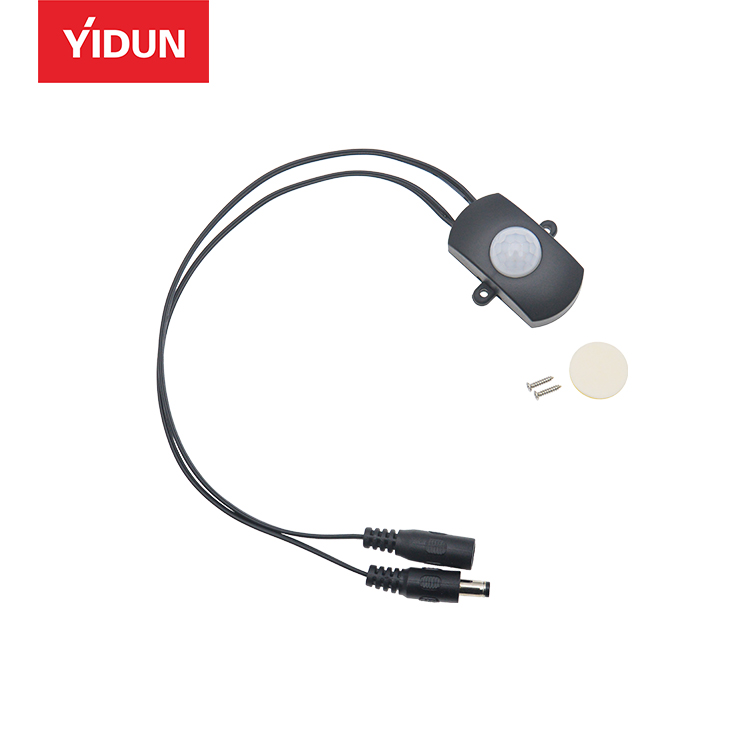

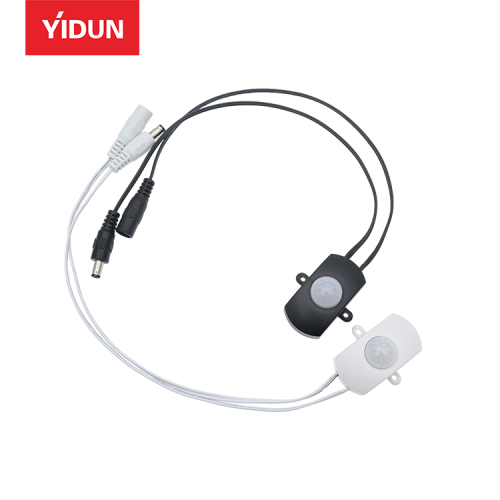

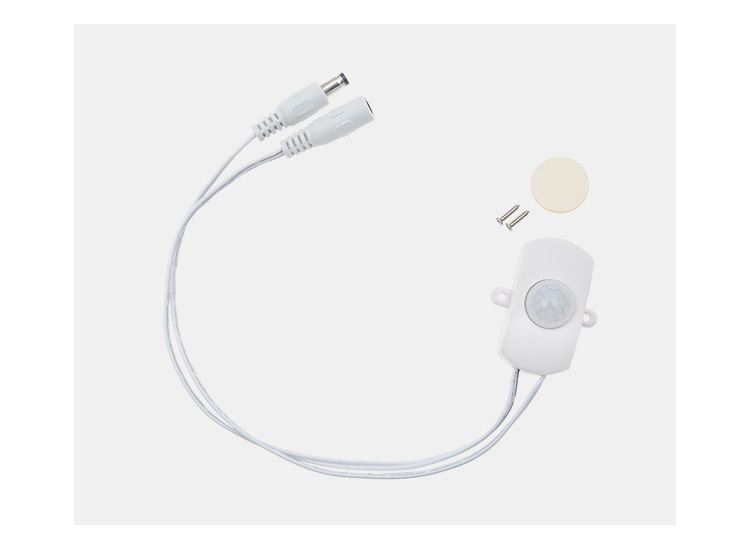

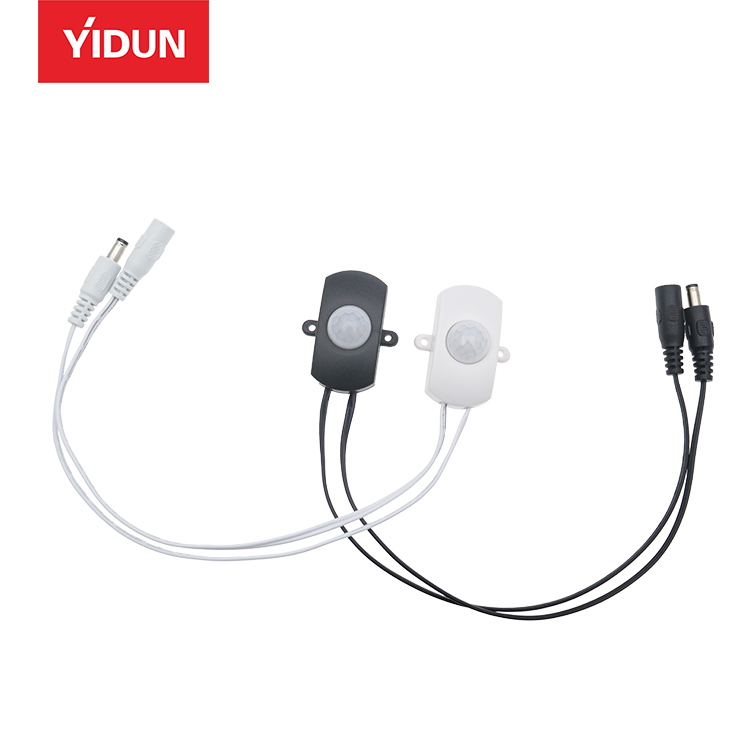

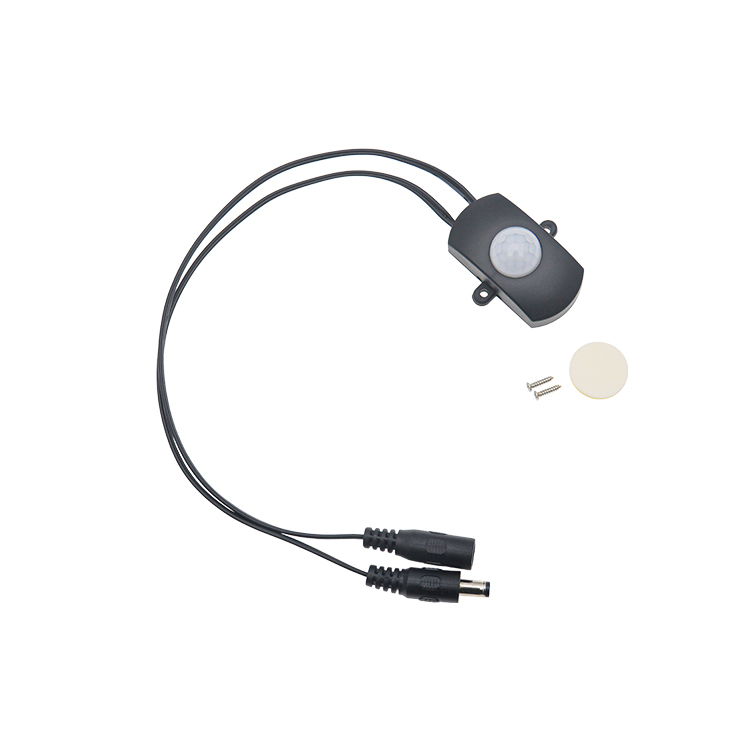

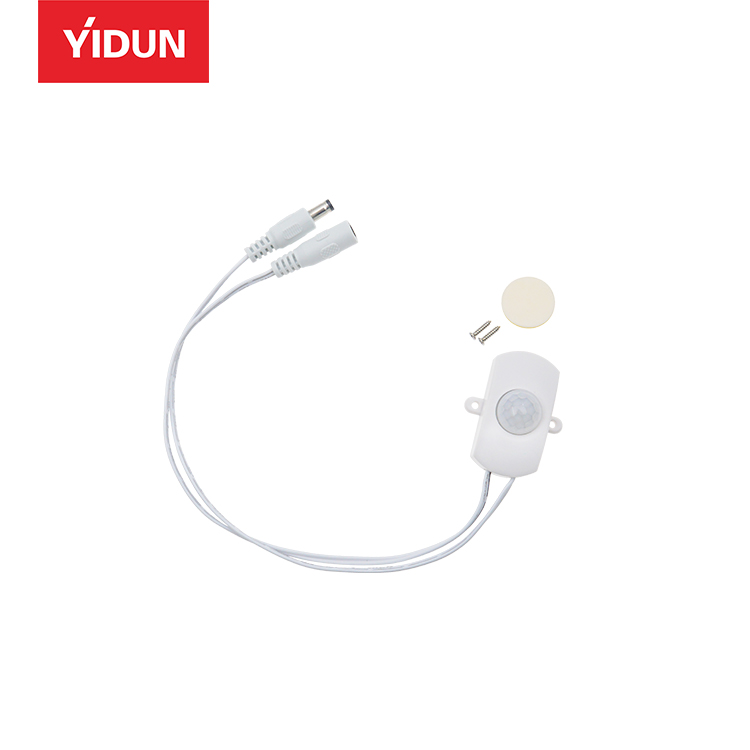

LED Human Body Infrared Sensor (TIP-2026) – DC5-24V Motion-Activated LED Control

Detailed Description

1. Product Definition

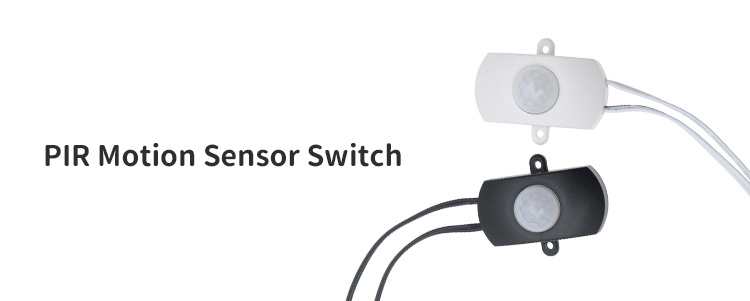

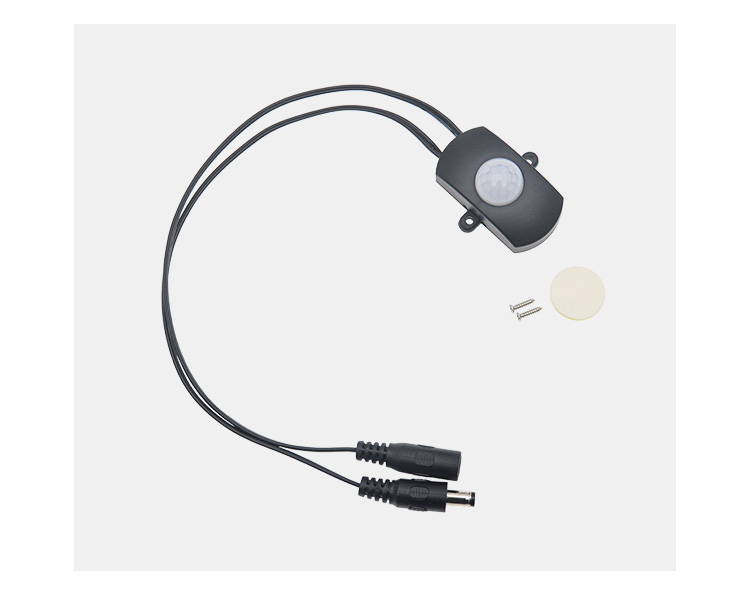

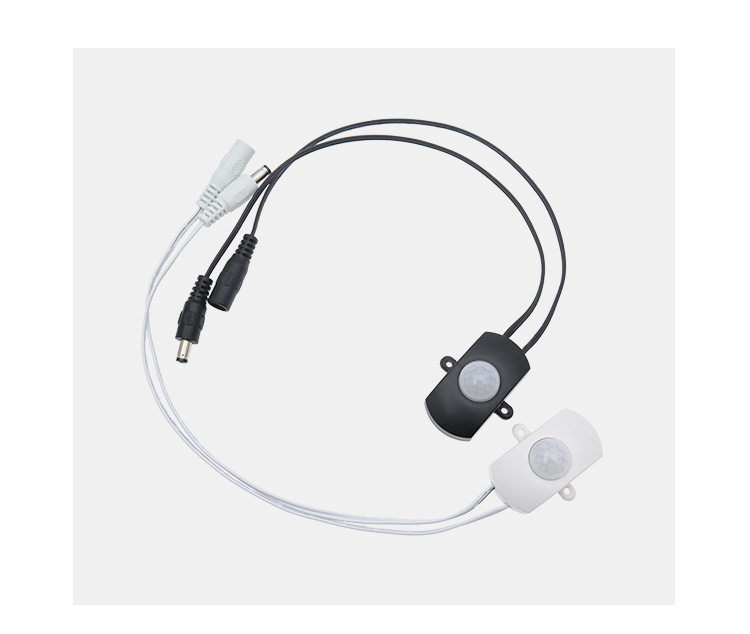

   The LED human body infrared sensor (model TIP-2026) is a motion-activated control switch designed for DC5-24V LED lighting systems. Using a PIR (Passive Infrared) motion sensor, it detects human presence and automatically switches LED lights on and off, enhancing lighting convenience and energy efficiency.

2. Key Features
   • PIR motion-activated on/off control for LED lighting
   • Wide input voltage range (DC5-24V) for flexible system compatibility

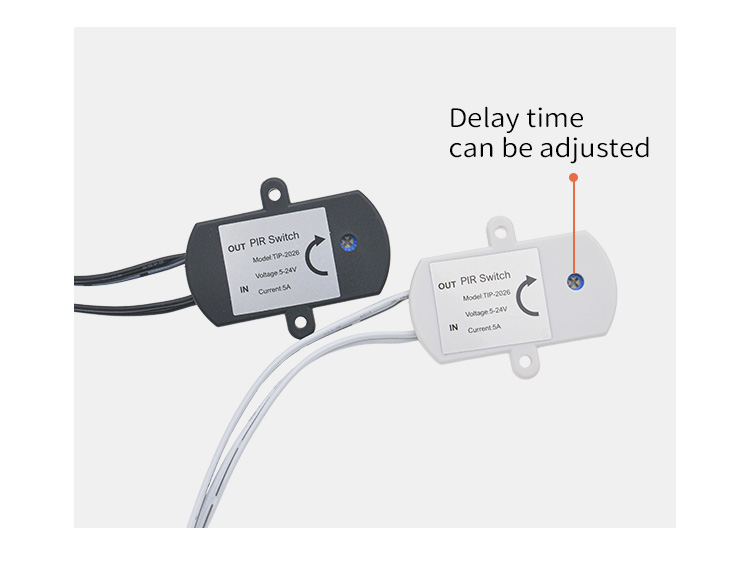

   • Adjustable induction delay time (18–360s)
   • Max. current handling up to 5A

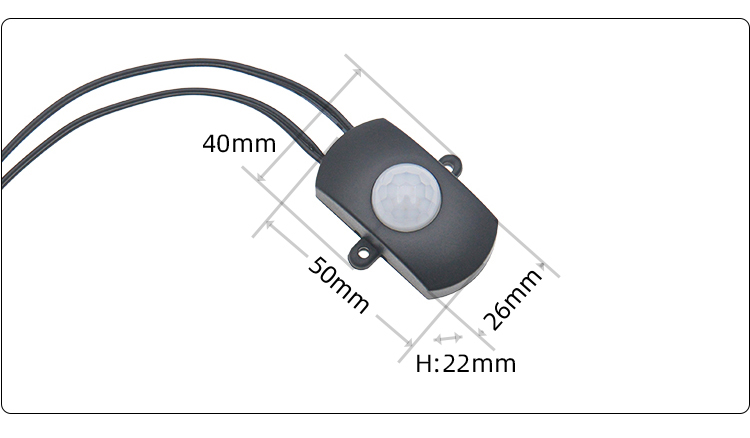

   • Compact form factor suitable for cabinet and wardrobe installation

3. Typical Applications

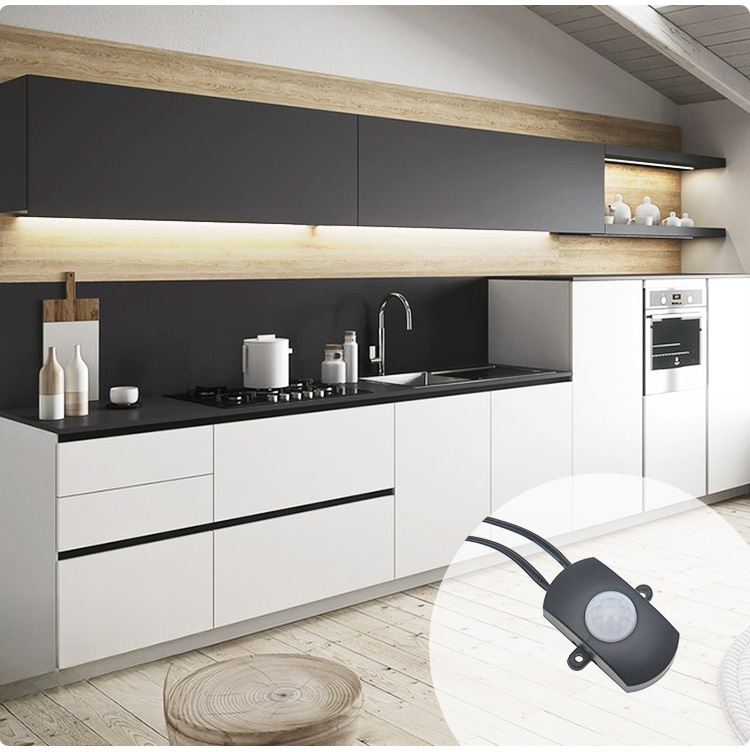

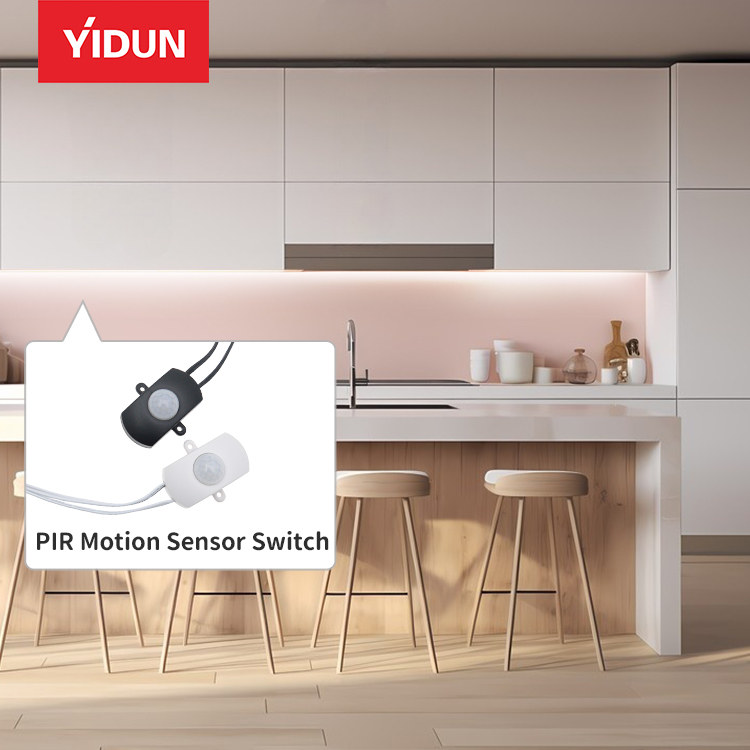

   • Cabinet and wardrobe LED lighting
   • Corridor or hallway LED control
   • Stairway LED lighting automation
   • Cupboard and display lighting systems

4. Working Principle
   The built-in PIR sensor detects infrared energy changes caused by a moving human body. When motion is detected within the sensing range (3–5m), the sensor activates the LED lights. After no motion is detected for a period, the sensor switches the lights off automatically, conserving power.

5. Installation & Usage Notes

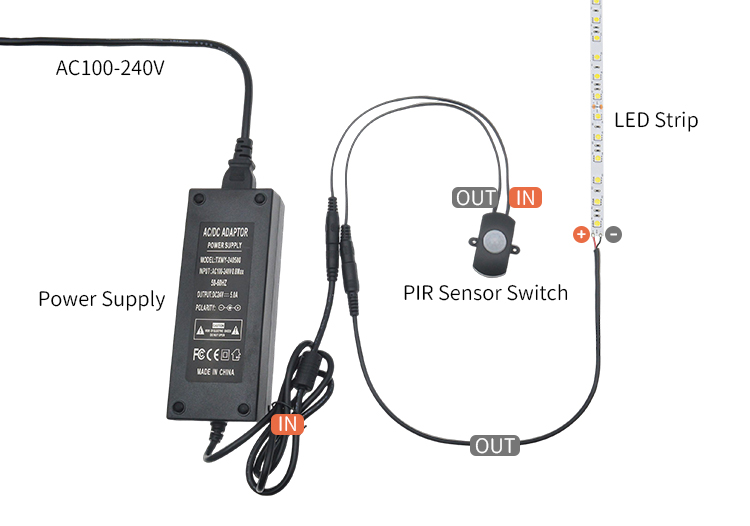

   • Ensure correct DC5-24V LED power supply connection — do NOT connect to mains AC directly
   • Position the sensor where motion detection is unobstructed
   • Adjust delay time based on user preference and environment

6. Summary
   This TIP-2026 human body infrared sensor offers a hands-free, motion-activated LED control solution that enhances user convenience and saves energy in a variety of indoor lighting applications.
