Description:

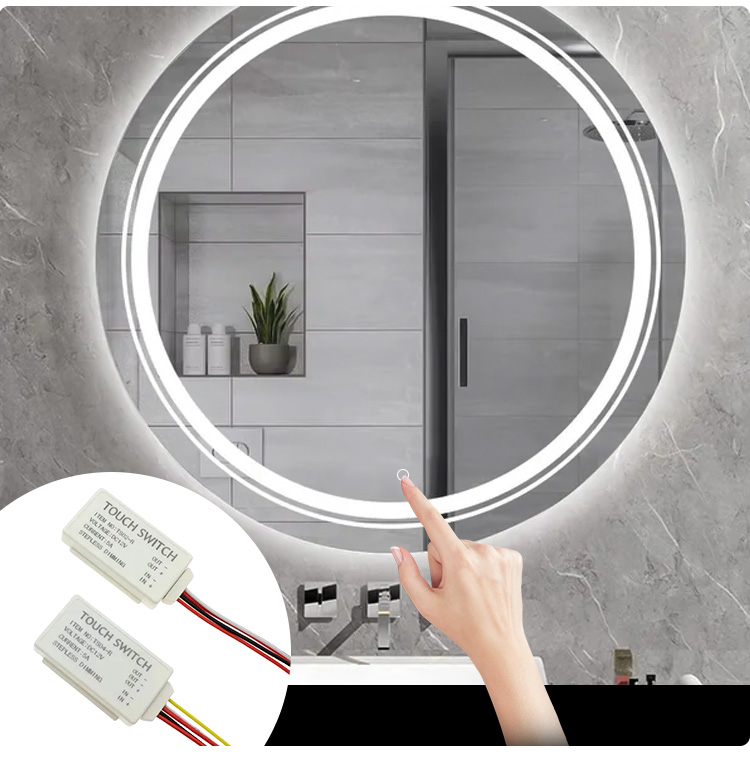

Input/output DC12V 24V LED mirror touch switch Smart mirror touch sensor switch, behind the LED bathroom mirror, the main functions are: touch sensor switch / human body sensor switch / hand sweep sensor switch

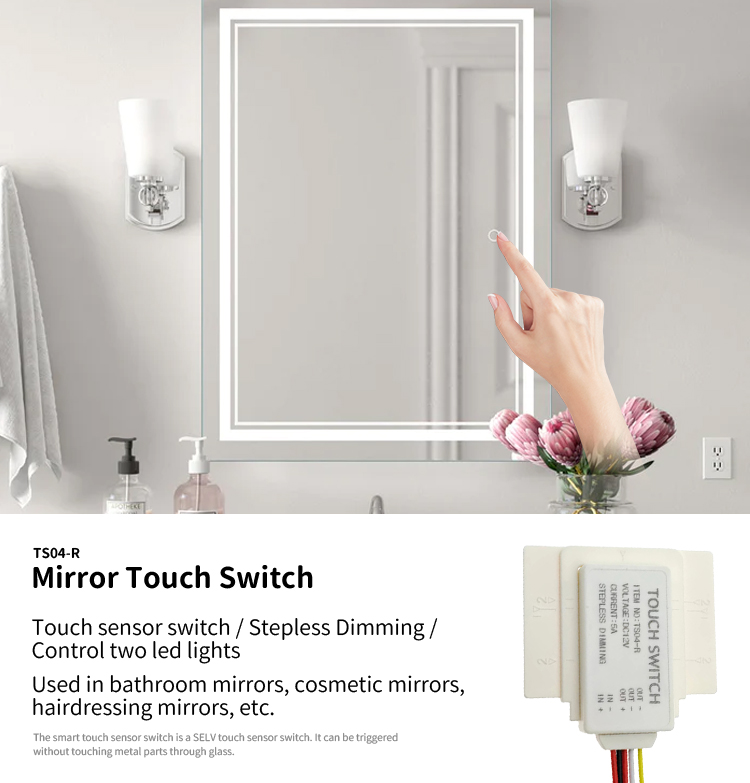

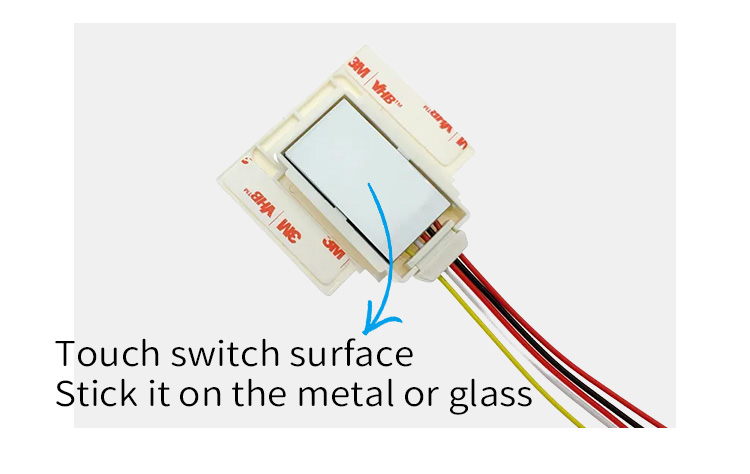

The smart touch sensor switch is a SELV touch sensor switch. It can be triggered without touching metal parts through glass. After the switch is installed, the switch accessories are not visible on the front of the mirror, but the touch keys exposed through the backlight are simple and stylish.
After connecting the power and the switch, the backlight on the switchboard will light up after turning on the power, and the backlight will always be on. If you don’t want the light to stay on, press and hold to turn off the backlight.
Key features:
1. Smart touch sensor switch
2. Human body infrared motion sensor switch
3. Gesture movement sensor switch
4. Long service life test> 10,000 times, approved by the laboratory

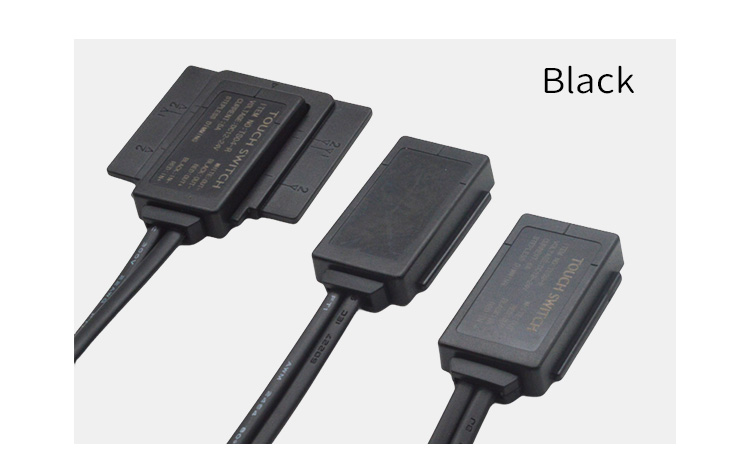

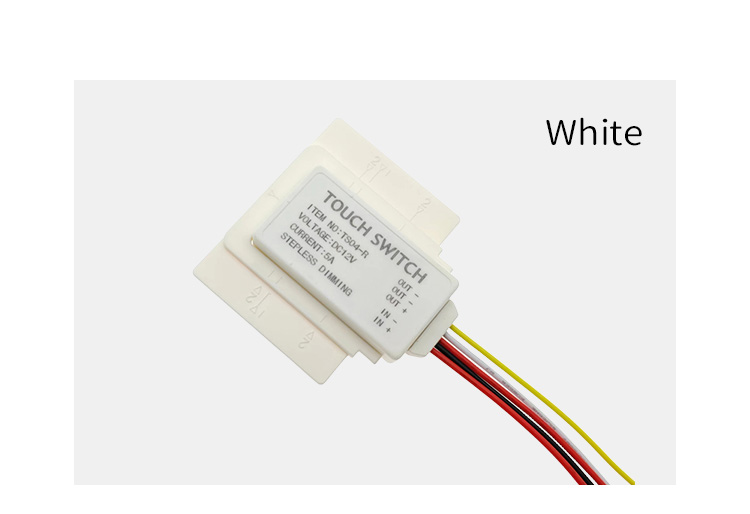

5. LED backlight color customization
|
 |

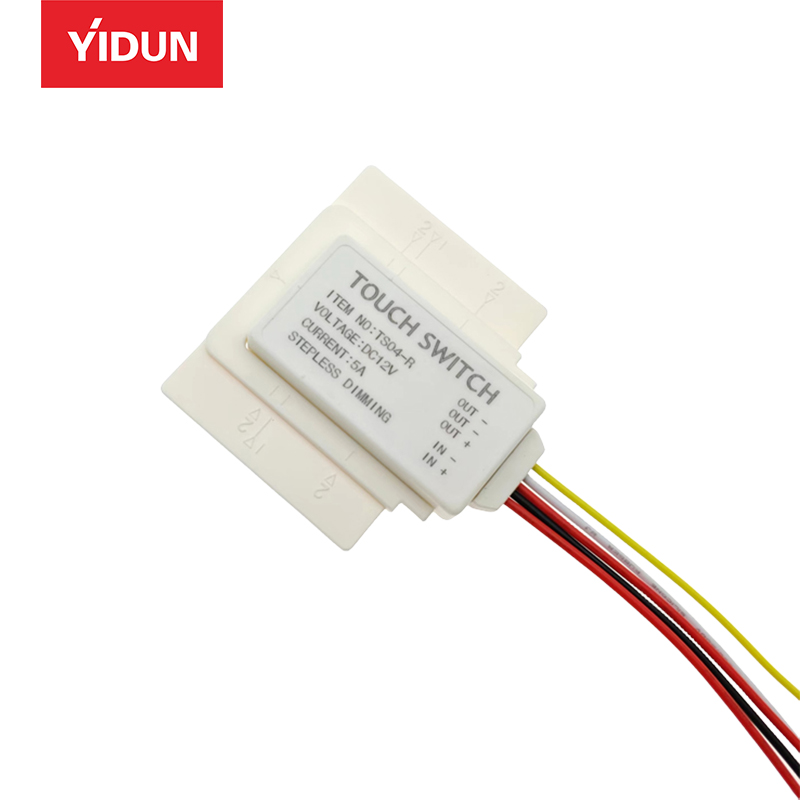

| Mirror Touch Switch |
| Model: |
TS04-R |
| Voltage: |
DC12V-24V |
| Current : |
5A |
| Power: |
60W |
| Touch |
on/off |
| Dimmble : |
Stepless Dimming |

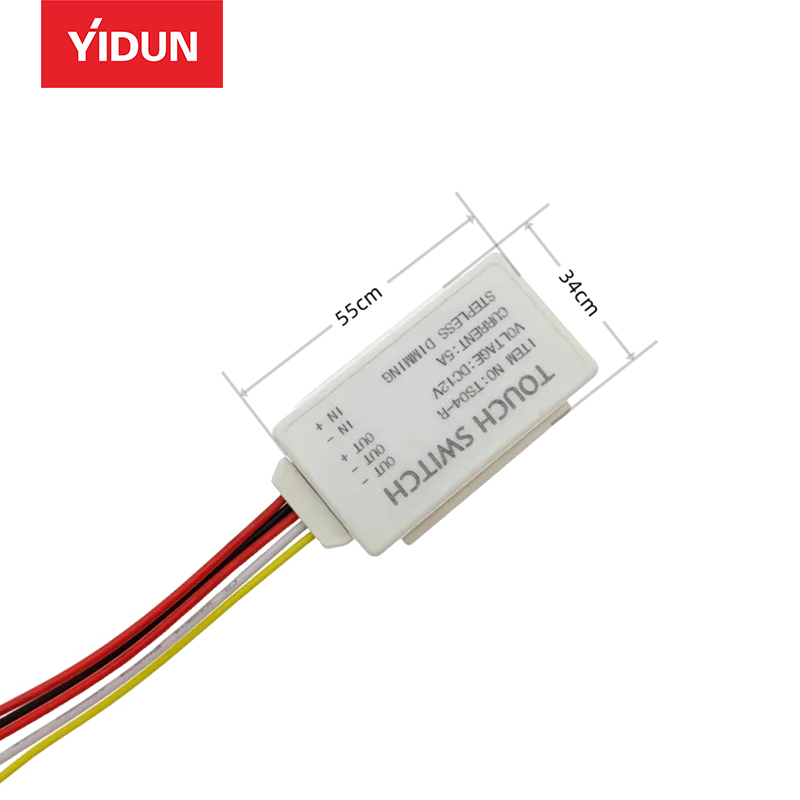

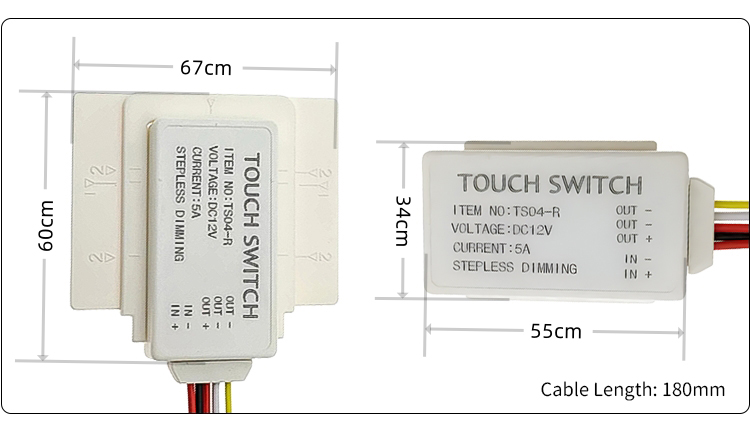

| Size: |
67mm*60mm*8mm |
| Cable Length : |
18cm |
| Number of controlling lights: |
1 |
Detailed Description
Product Definition
The LED mirror touch switch (model TS04-R) is a touch-activated control device designed for LED mirror lighting systems. It provides intuitive on/off control via a capacitive touch interface, eliminating the need for mechanical buttons and offering a modern control experience.
Key Features
• Touch-activated on/off control for LED mirror lights
• Sleek, modern design ideal for bathroom mirrors and vanity lighting
• No mechanical buttons — reliable, long-lasting performance
• Simple installation and wiring
• Enhances user convenience and aesthetic appeal
Typical Applications

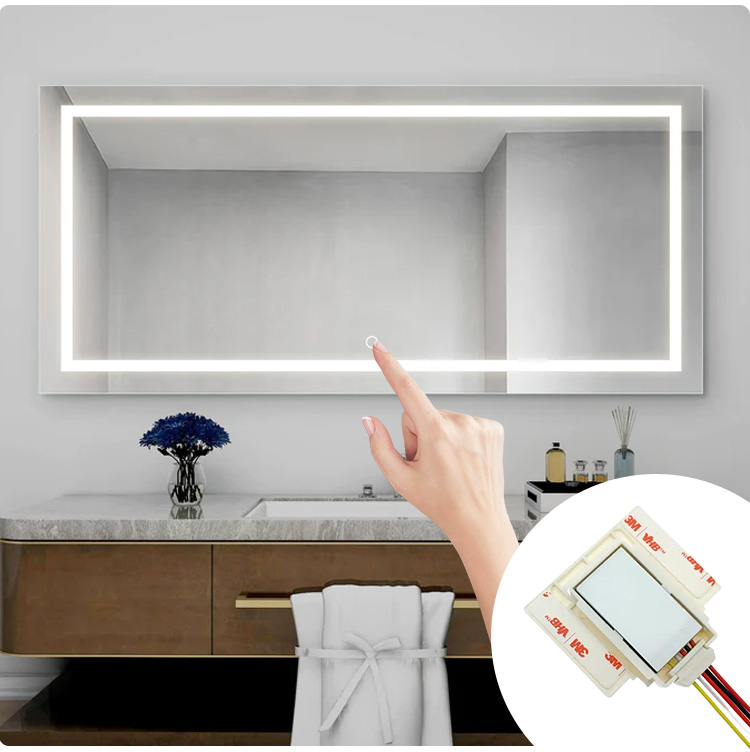

• Bathroom mirror lighting control
• Vanity mirror LED lamps
• Indoor LED mirror lighting applications
• Furniture LED lighting where touch control is preferred
Working Principle
This touch switch uses a capacitive sensor to detect finger contact and toggles the connected LED mirror lights on or off accordingly. Without mechanical components, it delivers reliable and responsive control with a smooth user experience.
Installation & Usage Notes
• Connect only to a proper low-voltage LED power supply — do NOT connect directly to mains AC without appropriate driver.
• Install the switch in an accessible location on or near the mirror surface.
• Ensure correct wiring polarity for stable operation.
Summary
The TS04-R LED mirror touch switch offers sleek, intuitive touch-activated on/off control for LED mirror lights, ideal for bathroom mirrors, vanity lighting, and other indoor LED lighting applications.
The LED mirror touch switch is an intelligent mirror that allows you to easily operate on the touch screen, making the mirror more convenient and easy to use.
Product introduction:
This LED mirror touch switch adopts advanced touch screen technology to make the mirror more intelligent. It not only provides the brightness adjustment function, but also can easily adjust the color temperature to help you get the best makeup effect under different lighting environments. In addition, this mirror is also equipped with a countdown function, which can help you control the time and avoid wasting time.
Features:
LED mirror touch switch touch control: using intelligent touch screen technology, the operation is more convenient;
LED mirror touch switch brightness adjustment: multi-level brightness adjustment to meet different needs;
LED mirror touch switch color temperature adjustment: multi-level color temperature adjustment to meet different environmental needs;
LED mirror touch switch countdown function: countdown function, to avoid wasting time;
LED mirror touch switch High-quality materials: Made of high-quality materials, the appearance is stylish and elegant, and the quality is guaranteed.
Instructions:
Connect to the power supply: connect the mirror to the power supply and turn it on;
Touch screen: Use your fingers to lightly touch the buttons on the touch screen to adjust brightness and color temperature;
Countdown function: Turn on the countdown function, set the time, and the mirror will automatically count down;
Power off: Long press the power off button on the touch screen to power off.
The LED mirror touch switch can make it more convenient for you to make up and dress up in your daily life, and it can also save you troublesome operations such as looking for power sources and switches. It is not only practical, but also stylish and generous, a good helper for your home life
