Product Definition

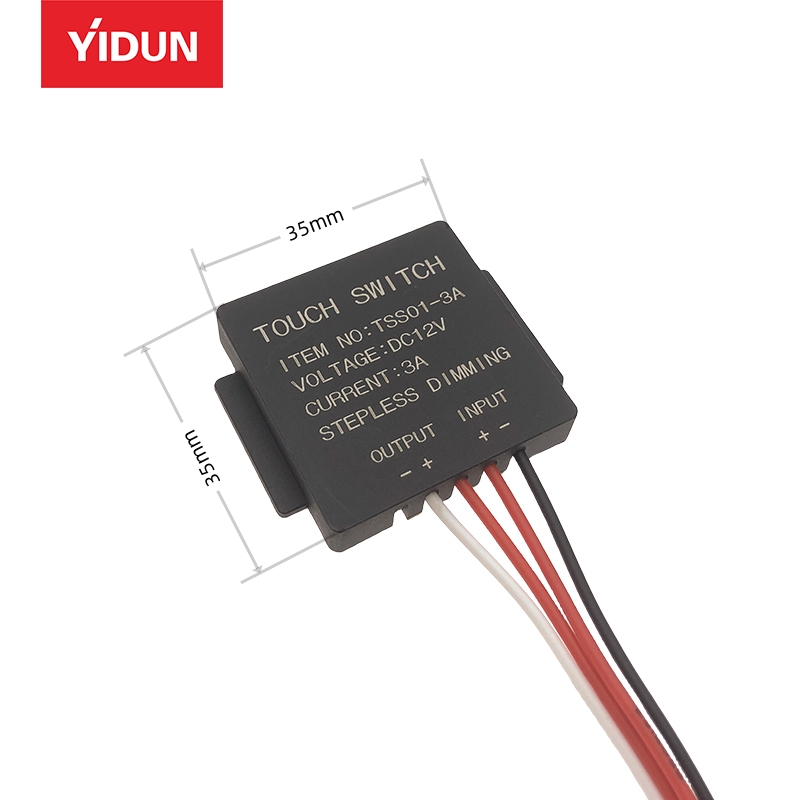

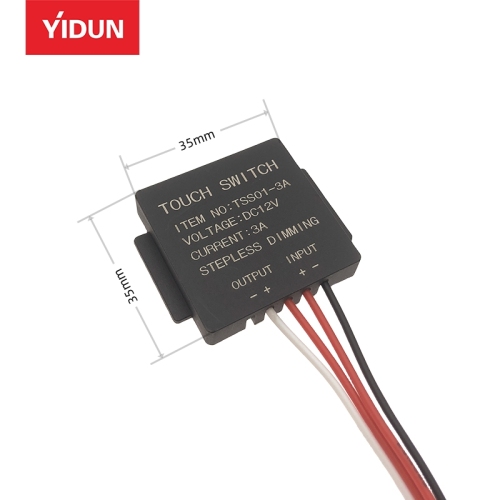

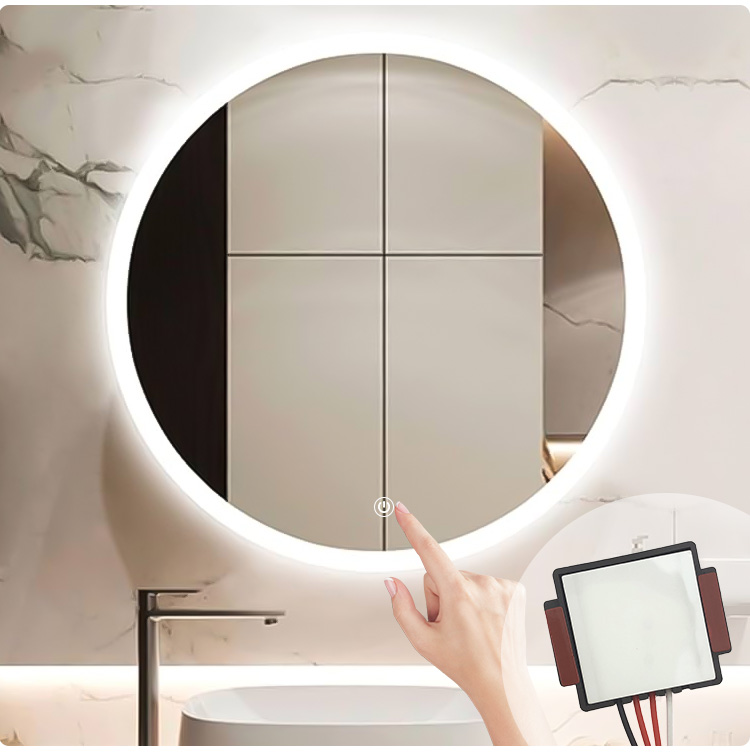

The LED mirror touch switch (Model TSS01‑3A) is a capacitive touch‑activated controller designed to switch LED mirror lighting on and off with a simple touch. It installs behind the mirror surface, creating a sleek, button‑free interface for modern mirror lighting systems.
Key Features
• Touch‑activated on/off control for LED mirror lights
• Sleek, hidden installation behind mirror glass
• Compatible with DC 12V LED systems with up to 36W load
• No visible buttons — seamless mirror front
• Easy to integrate into LED vanity, bathroom, or makeup mirrors
Technical Specifications

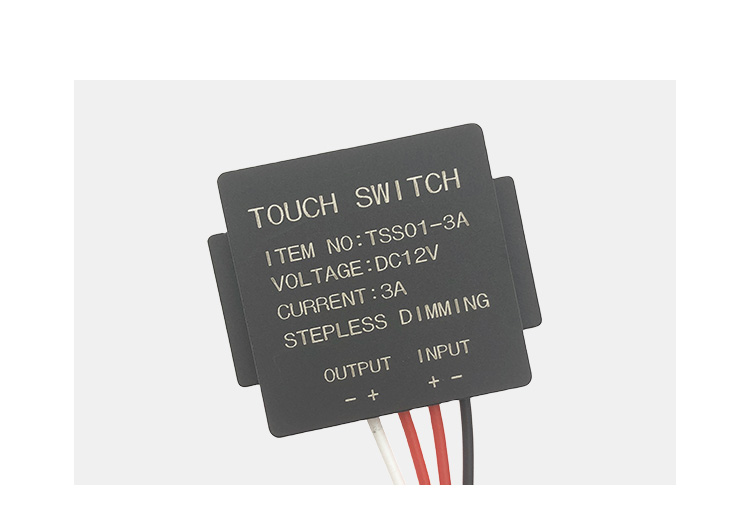

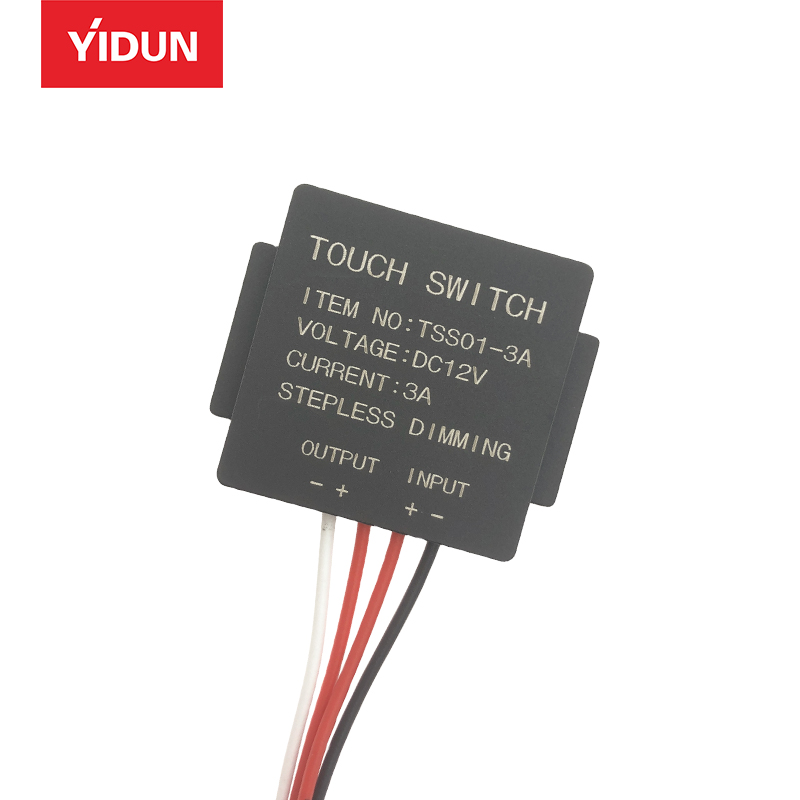

• Model: TSS01‑3A
• Voltage: DC 12V
• Current: 3A
• Power: 36W
• Touch Function: On/Off
• Stepless Dimming: No

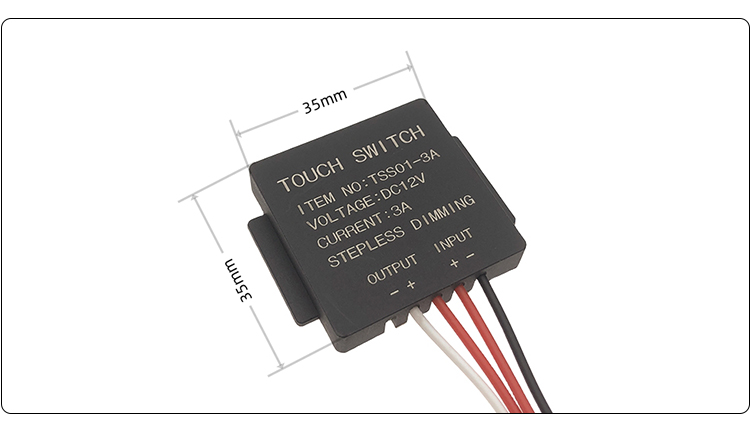

• Dimensions: 43 × 35 × 7 mm
• Cable Length: 10 cm
Typical Applications

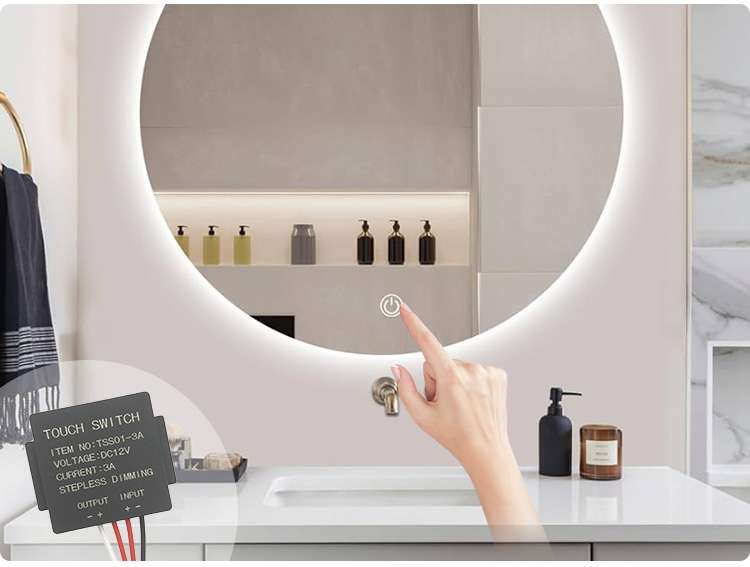

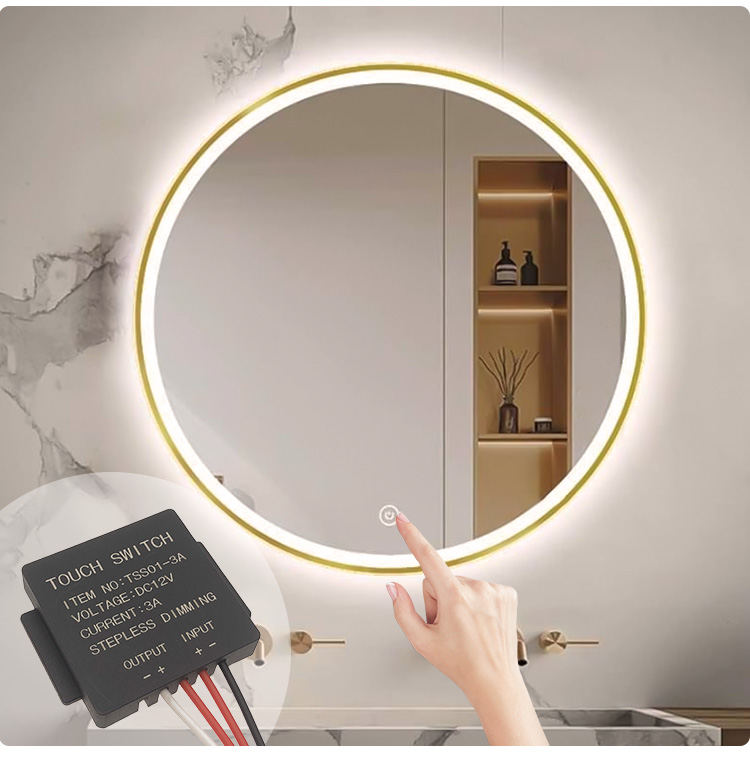

• LED lighting for bathroom mirrors
• Vanity and dressing mirror LED lights
• Makeup mirrors with DC LED strip lighting
• Indoor mirrors requiring clean, button‑free touch control
Working Principle

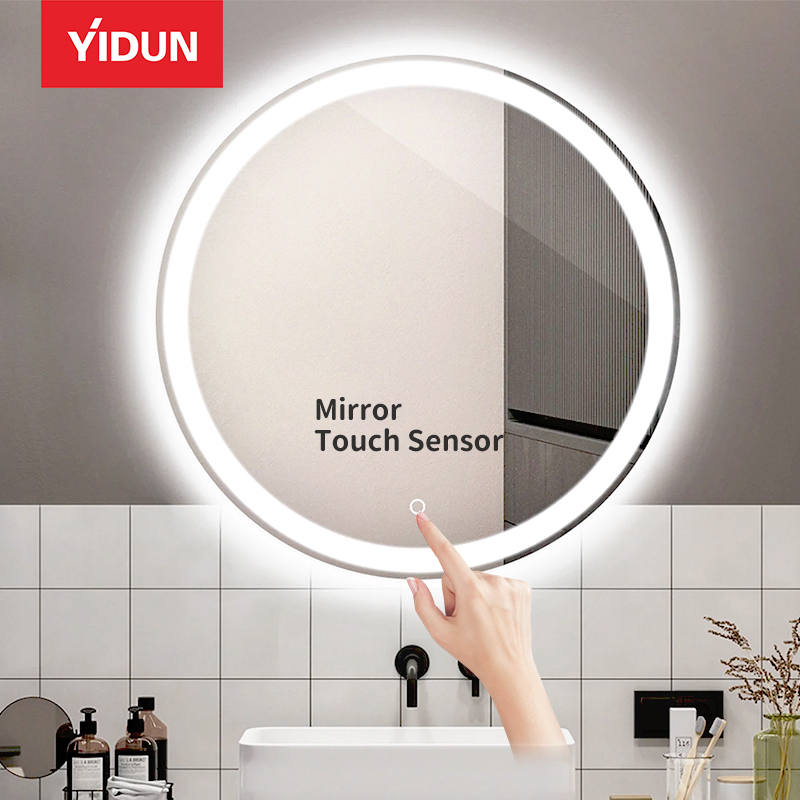

Using capacitive touch sensing technology, the switch detects user touch through the mirror glass. Each touch toggles the mirror’s LED lighting on or off, providing responsive and reliable control with a modern minimalist appearance.
Installation & Usage Notes
• Connect only to a DC 12V constant‑voltage LED driver — do NOT connect directly to mains AC.
• Install the switch behind the mirror so the touch area aligns with the mirror surface.
• Ensure wiring polarity is correct before powering on.
• Avoid excessive moisture or direct water contact.
Benefits Summary
The Model TSS01‑3A LED mirror touch switch enhances mirror lighting systems with intuitive touch control, a sleek button‑free design, and easy installation for various bathroom and vanity mirror applications.
|
Description:
Input/output DC12V 24V LED mirror touch switch Smart mirror touch sensor switch, behind the LED bathroom mirror, the main functions are: touch sensor switch / human body sensor switch / hand sweep sensor switch

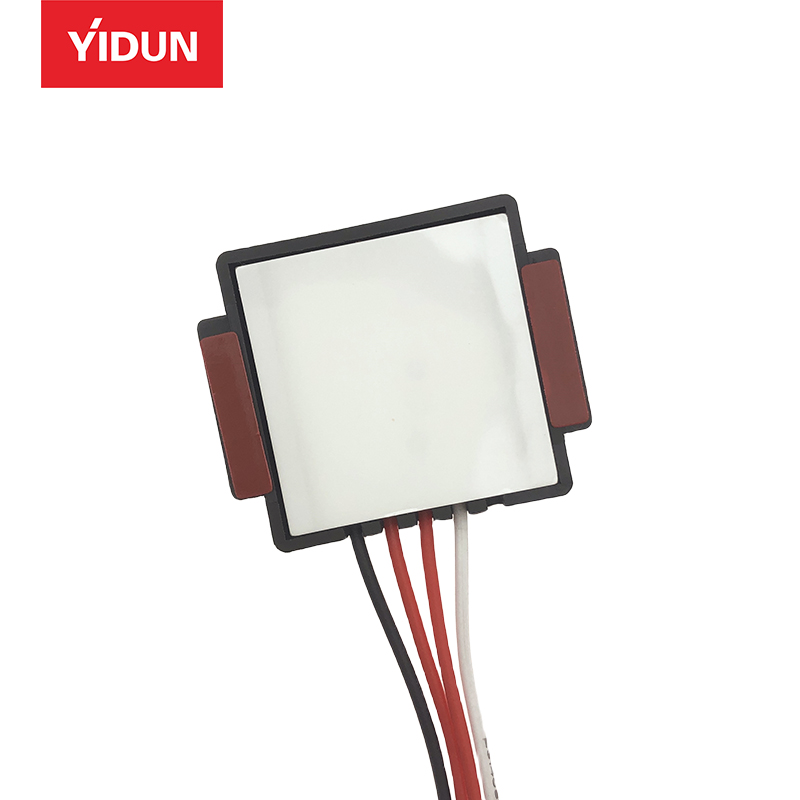

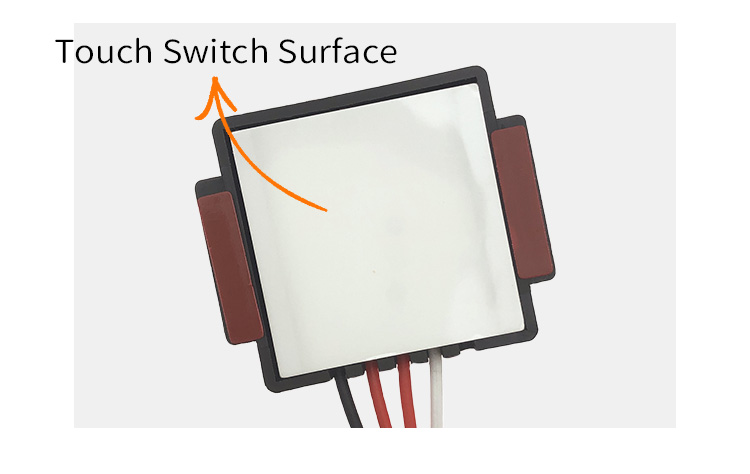

The smart touch sensor switch is a SELV touch sensor switch. It can be triggered without touching metal parts through glass. After the switch is installed, the switch accessories are not visible on the front of the mirror, but the touch keys exposed through the backlight are simple and stylish.
After connecting the power and the switch, the backlight on the switchboard will light up after turning on the power, and the backlight will always be on. If you don’t want the light to stay on, press and hold to turn off the backlight.
Key features:
1. Smart touch sensor switch
2. Human body infrared motion sensor switch
3. Gesture movement sensor switch
4. Long service life test> 10,000 times, approved by the laboratory
5. LED backlight color customization
|
 |
| Mirror Touch Switch |
| Model: |
TSS01-3A |
| Voltage: |
DC12V |
| Current : |
3A |
| Power: |
36W |
| Touch |
on/off |
| Dimmble : |
No Stepless dimming |
| Size: |
43mm*35mm*7mm |
| Cable Length : |
10cm |
| Number of controlling lights: |
1 |
b
LED mirror touch switch touch control: using intelligent touch screen technology, the operation is more convenient;
LED mirror touch switch brightness adjustment: multi-level brightness adjustment to meet different needs;
LED mirror touch switch color temperature adjustment: multi-level color temperature adjustment to meet different environmental needs;
LED mirror touch switch countdown function: countdown function, to avoid wasting time;
LED mirror touch switch High-quality materials: Made of high-quality materials, the appearance is stylish and elegant, and the quality is guaranteed.
Instructct to the power supply: connect the mirror to the power supply and turn it on;
Touch screen: Use your fingers to lightly touch the buttons on the touch screen to adjust brightness and color temperature;
Countdown function: Turn on the countdown function, set the time, and the mirror will automatically count down;
Power off: Long press the power off button on the touch screen to power off.
The LED mirror touch switch can make it more convenient for you to make up and dress up in your daily life, and it can also save you troublesome operations such as looking for power sources and switches. It is not only practical, but also stylish and generous, a good helper for your home life
