Stair Sensor Switch (RL-STEP-03-08) – DC12-24V LED Stair Lighting Control

Item No.: RL-STEP-03-08
This stair sensor switch (model RL-STEP-03-08) supports DC12-24V input and automatically turns on/off LED stair lights when motion is detected, offering convenient and energy-saving control for stair lighting systems.
$0.00
Request Quote
Description

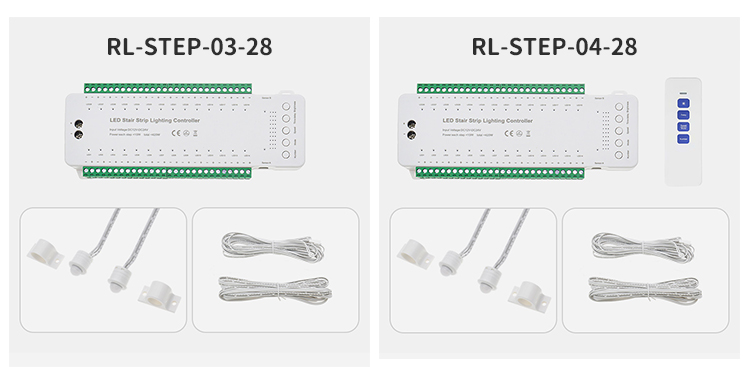

RL-STEP-03-28
RL-STEP-04-28
Type :
28 Steps Staircase Controller Without Remote
Type :
28 Steps Staircase Controller
With Remote
Voltage :
DC12V~24V
Voltage :
DC12V~24V
Current :
20A(max)
Current :
20A(max)
Power:
Each Step<15W,Total<420W
Power:
Each Step<15W,Total<420W
28-steps Staircase Controller With Adjustable Number Of Steps (Long Press Number Key); Adjustable Speed (Speed Key), Brightness (Brightness Key), And Delay Time Settings (Time Delay Key) ;
Step-by-step Lighting Effect
28-steps Staircase Controller With Adjustable Number Of Steps (Long Press Number Key); Adjustable Speed (Speed Key), Brightness (Brightness Key), And Delay Time Settings (Time Delay Key) ;
Step-by-step Lighting Effect

Detailed Description

  1. Product Definition
    A stair sensor switch (model RL-STEP-03-08) is a lighting control device designed to automatically turn LED stair lights on when motion is detected and turn them off after motion ceases. It supports DC12-24V LED systems and provides an energy-efficient solution for stair and hallway lighting control.

  2. Key Features
    • Automatic motion-activated on/off control for LED stair lighting
    • Works with DC12-24V LED systems
    • Improves safety and convenience in stair areas
    • Reduces unnecessary energy consumption
    • Compact design for easy installation

  3. Typical Applications

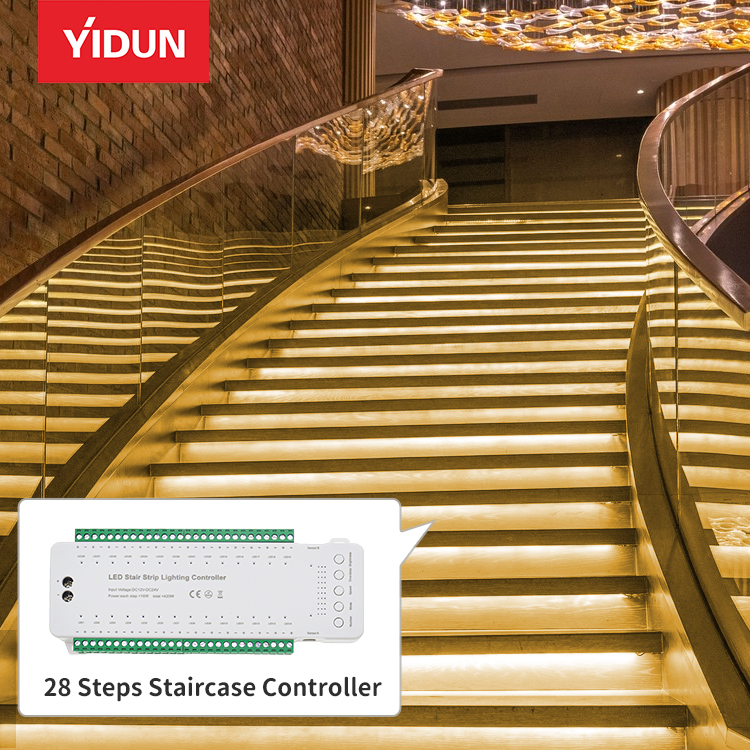

    • Staircase LED lighting control
    • Hallway or corridor lighting automation
    • Entryway and landing lighting systems
    • Indoor architectural LED illumination

  4. Sensor Working Principle
    The built-in motion sensor detects human presence and triggers the lighting to turn on. After no motion is detected for a set period, the switch automatically turns the lights off, conserving energy and enhancing safety.

  5. Installation & Usage Notes
    • Ensure proper DC12-24V LED power supply connection
    • Install the sensor in a position with clear motion detection range
    • Avoid installing in areas with frequent non-target movements (e.g., HVAC vents)

  6. Summary
    This RL-STEP-03-08 stair sensor switch is an ideal solution for automatic LED stair lighting control, providing convenience, safety, and power-saving performance in residential and commercial indoor stair applications.
