| Parameter Category | Parameter Name | Value |

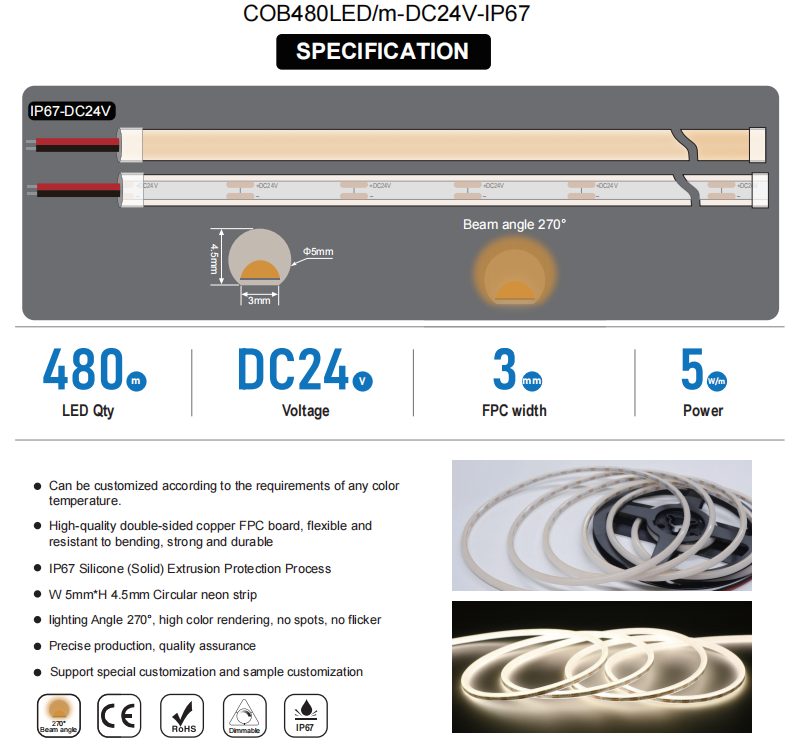

| General parameters | Product Model | COB480 - 3mm - DC24V - IP67 Circular type (W 5mm*H 4.5mm) |
| Color | WW, NW, CW, Red, Blue, Green | |
| CCT(K) | 2700K/3000K/4000K/6000K (Special CCT can be customized) |
|
| CRI | Ra≥90 | |
| Beam angle | 270° | |

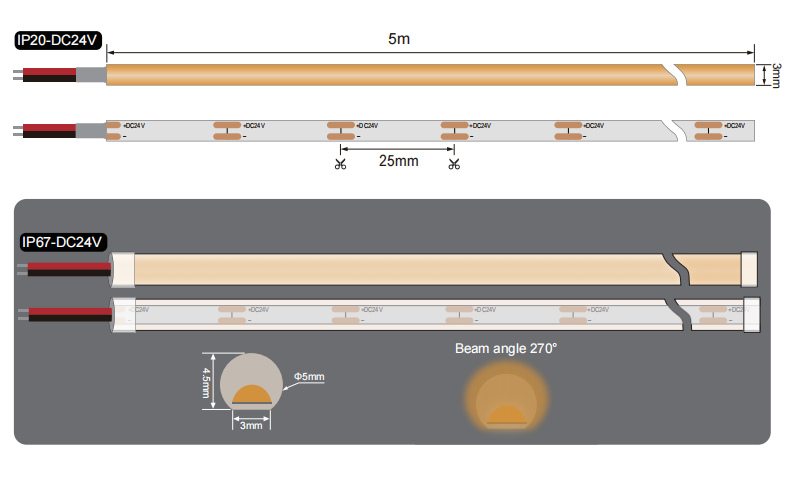

| Cut Distance | 25mm | |
| Performance parameters | Lumen(±5%) | 200 - 250lm/m |
| Efficiency(±5%) | 40 - 50lm/W | |
| Voltage | DC24V | |
| Electric current | 208mA | |
| Power | 5W/m | |
| Environmental test parameters | IP grade | IP67 |
| Working environment | -25°C - +45°C | |
| Storage environment | -30°C - +80°C | |
| Max connection Length | 5m | |

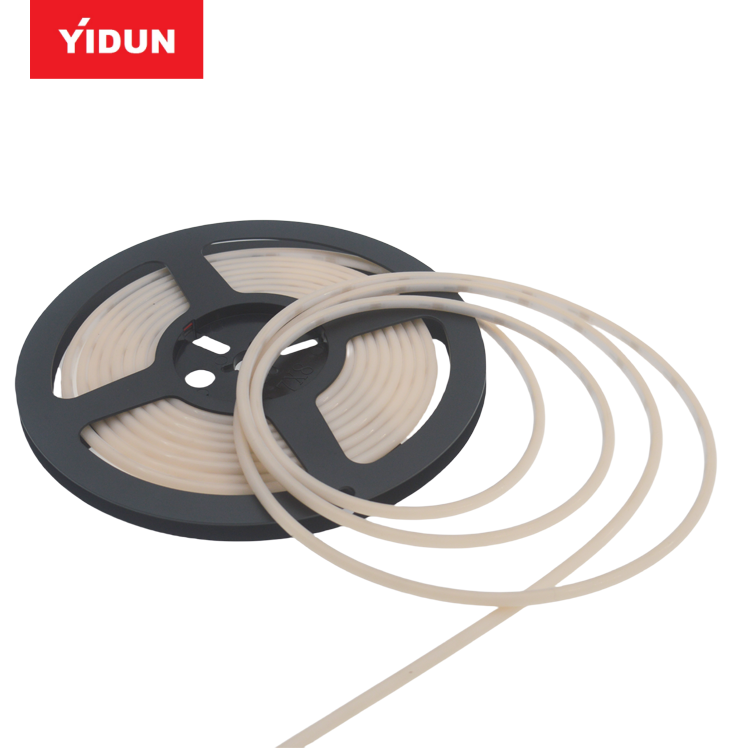

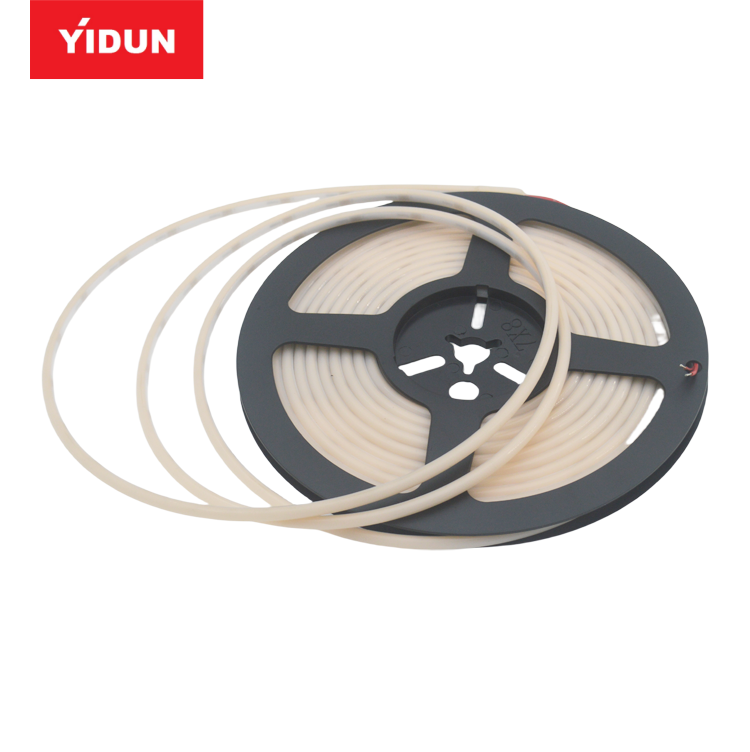

| Packaging parameters | A roll | 5m |
| Reel size | D 7in*W 8mm | |
| N.W(Roll) | 165g |
1. Product Definition

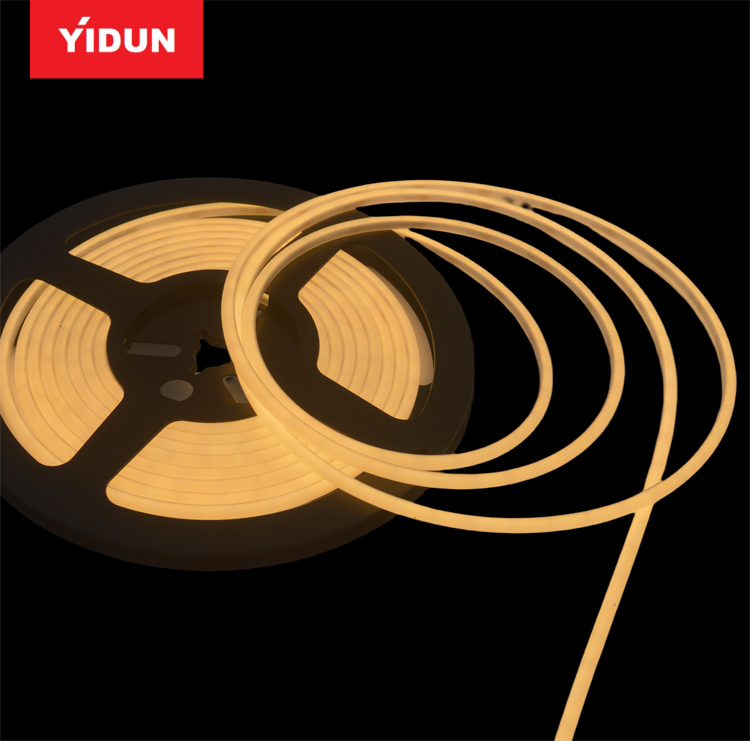

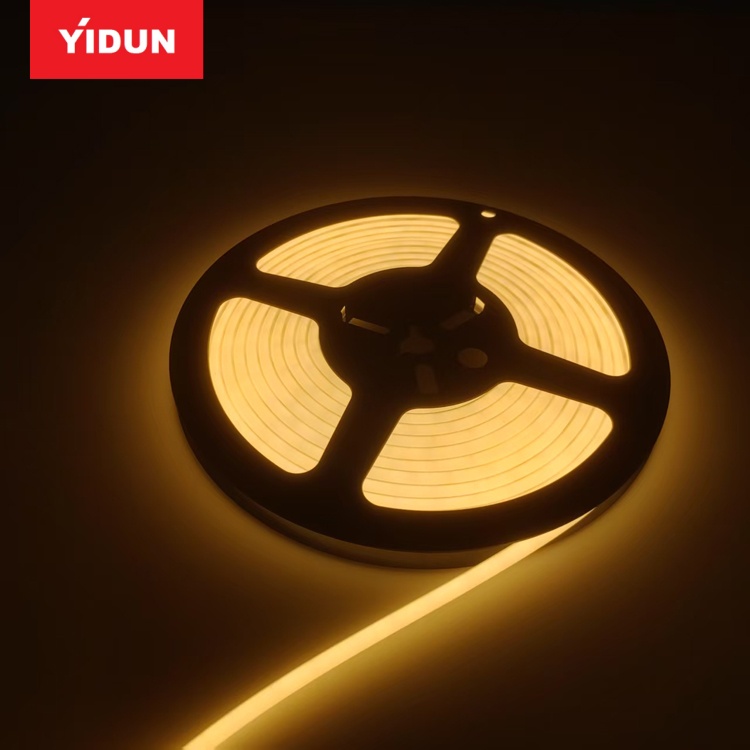

A 24V LED COB waterproof strip (also known as a COB neon light) is a flexible linear lighting solution that uses Chip‑on‑Board technology with 480 LEDs per meter to produce a continuous, uniform light output without visible LED dots. The IP67 waterproof construction and silicone housing make it suitable for demanding indoor and outdoor environments.
2. Key Features
• Continuous dot‑free illumination using COB technology
• IP67 waterproof rating for outdoor and indoor use
• DC 24V low‑voltage power system for safety and stability
• Flexible design suitable for curved and linear installations
• High light uniformity with reduced glare

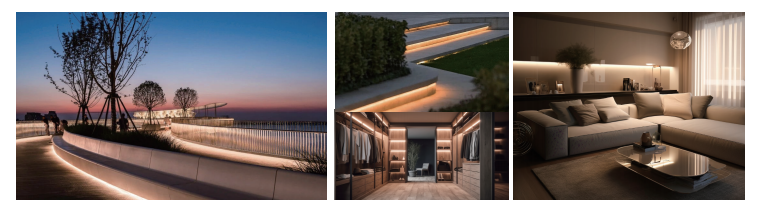

3. Typical Applications
• Architectural contour lighting
• Outdoor decorative lighting

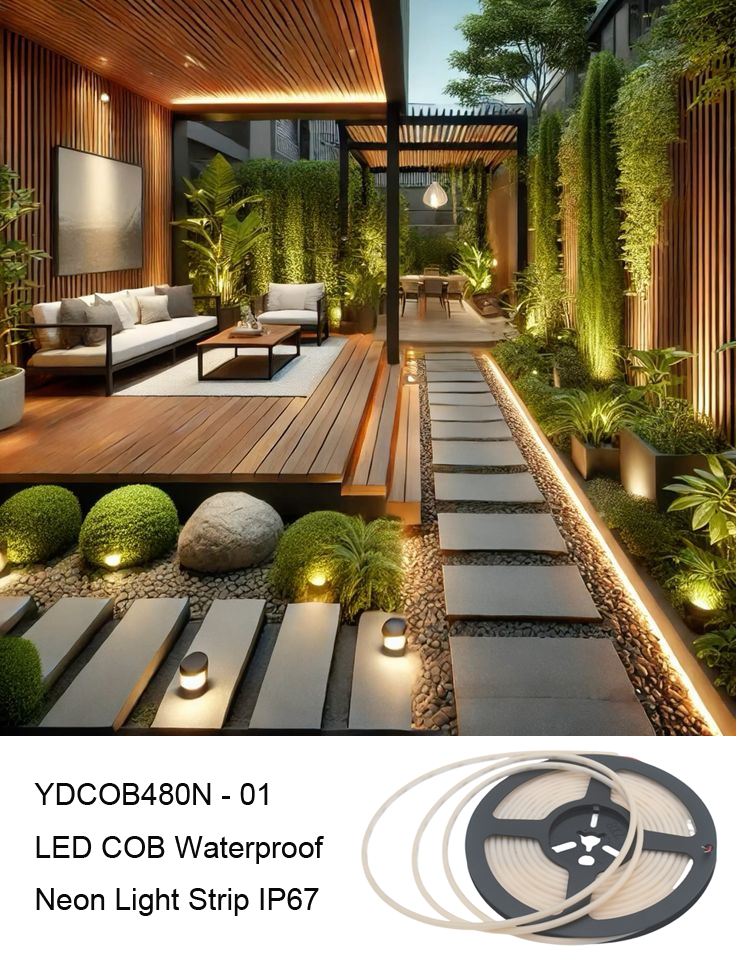

• Landscape and garden lighting
• Commercial signage and display lighting
4. COB Neon vs Traditional LED Strip
| Item | COB Neon Lighting | Traditional SMD LED Strip |
|---|---|---|
| Light appearance | Continuous, seamless | Visible LED dots |
| Visual comfort | Soft and uniform | Higher glare |
| Aesthetics | High‑end neon‑like | Standard |

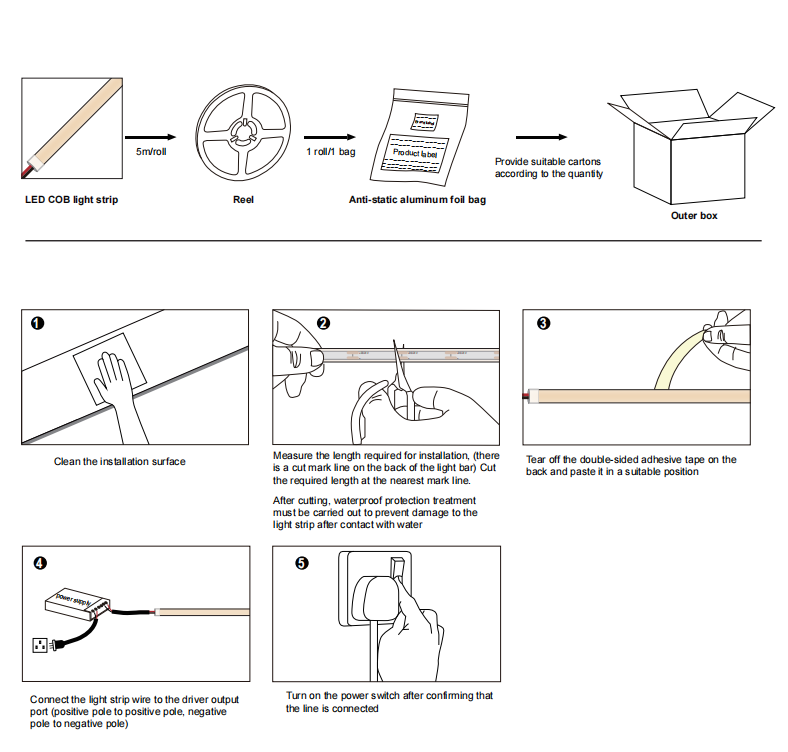

5. Common Installation Notes
• Ensure proper 24V power supply selection
• Avoid sharp bends to prevent stress on strip
• Check sealing integrity after cutting and reconnecting
6. Not Recommended For
• Applications needing extremely high point brightness
• Installations with frequent twisting or mechanical bending
7. Summary
This 24V LED COB waterproof strip is ideal for projects requiring uniform, dot‑free illumination with reliable IP67 all‑weather performance.
