| Parameter Category | Parameter Name | Value |

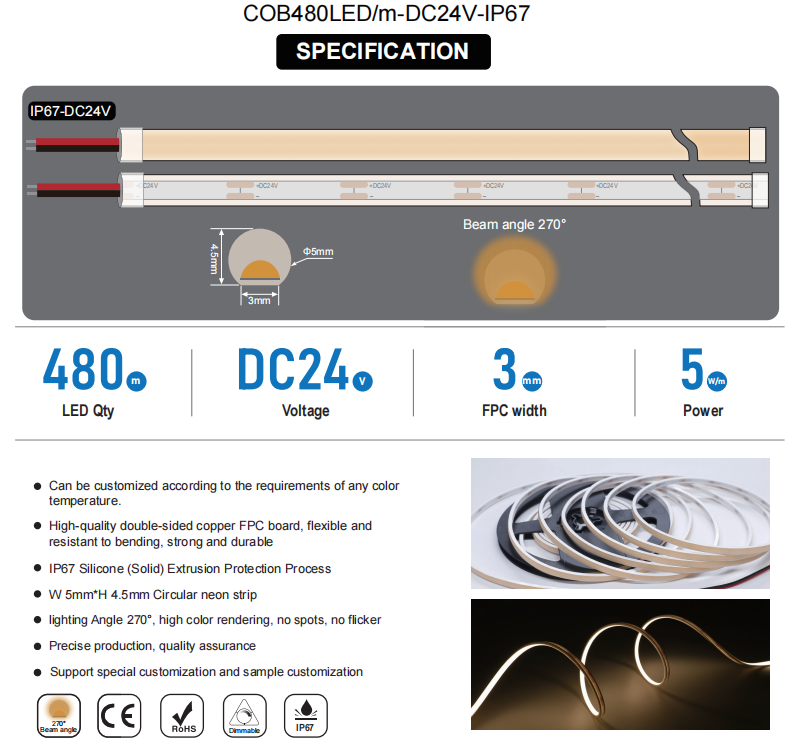

| General parameters | Product Model | COB480 - 3mm - DC24V - IP67 Circular type (W 5mm*H 4.5mm) |
| Color | WW, NW, CW, Red, Blue, Green | |
| CCT(K) | 2700K/3000K/4000K/6000K (Special CCT can be customized) |
|
| CRI | Ra≥90 | |
| Beam angle | 270° | |
| Cut Distance | 25mm | |
| Performance parameters | Lumen(±5%) | 200 - 250lm/m |
| Efficiency(±5%) | 40 - 50lm/W | |
| Voltage | DC24V | |
| Electric current | 208mA | |
| Power | 5W/m | |
| Environmental test parameters | IP grade | IP67 |
| Working environment | -25°C - +45°C | |
| Storage environment | -30°C - +80°C | |
| Max connection Length | 5m | |

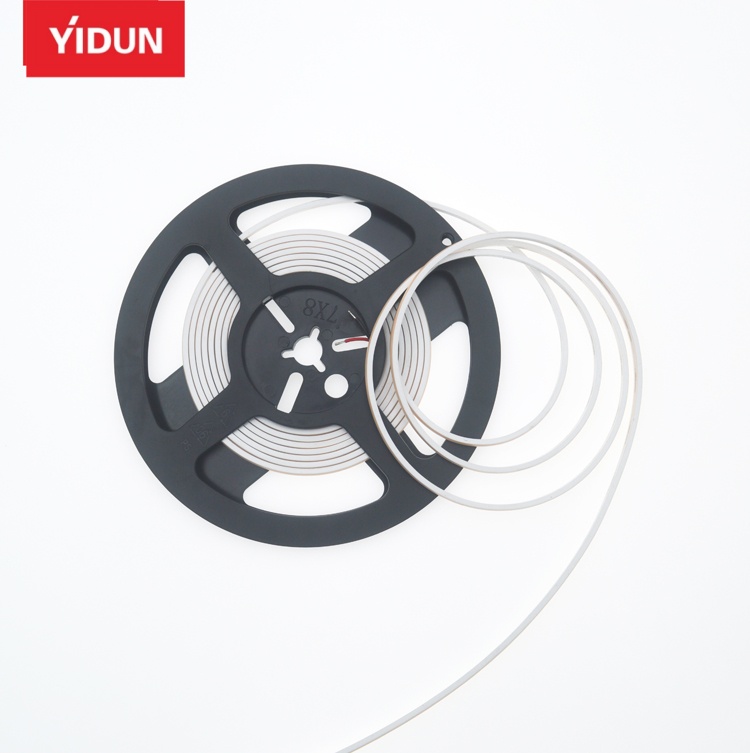

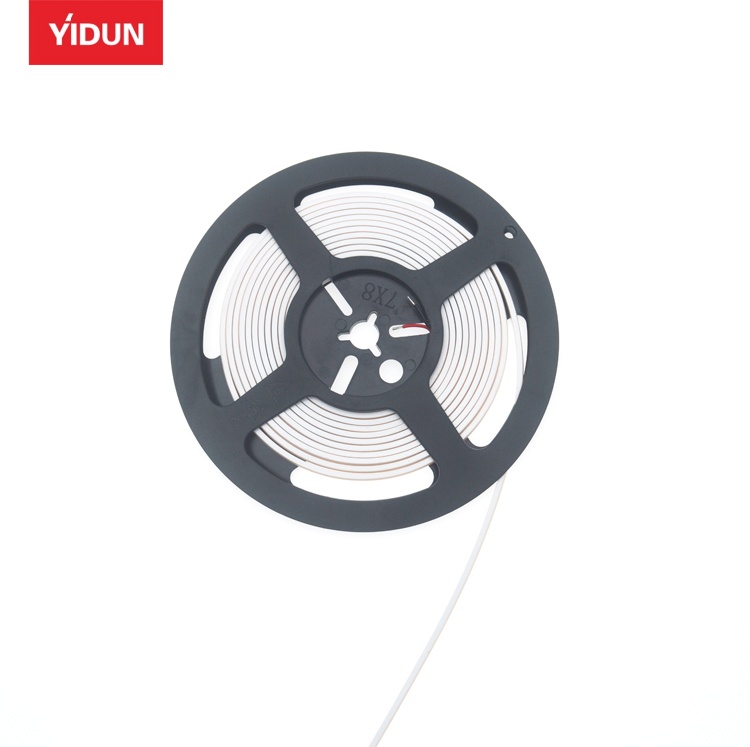

| Packaging parameters | A roll | 5m |

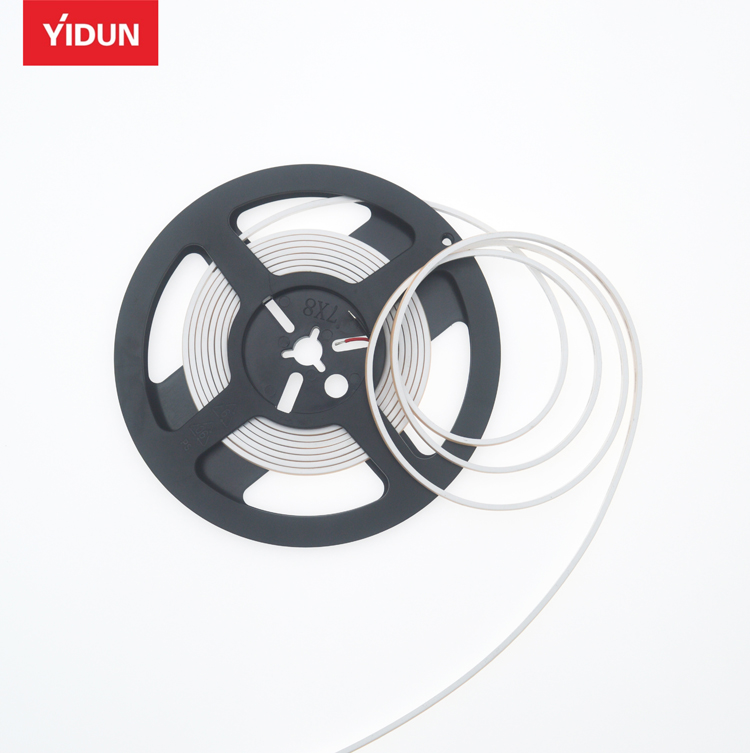

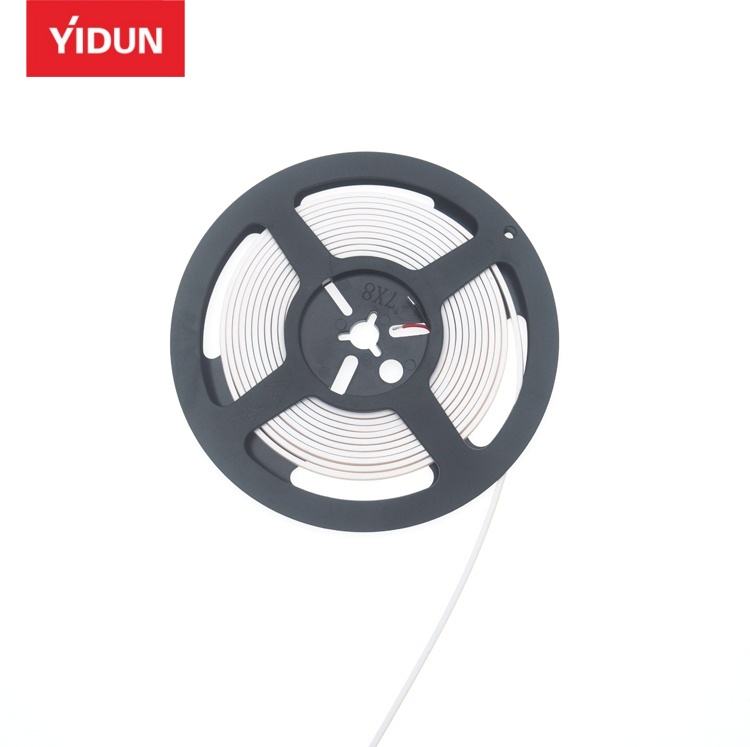

| Reel size | D 7in*W 8mm | |
| N.W(Roll) | 165g |
Detailed Description
Product Definition

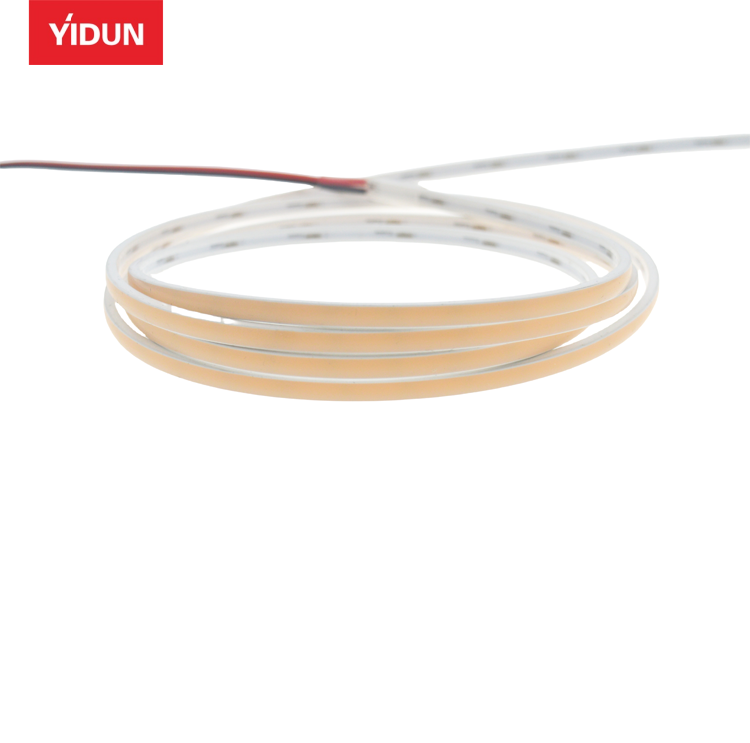

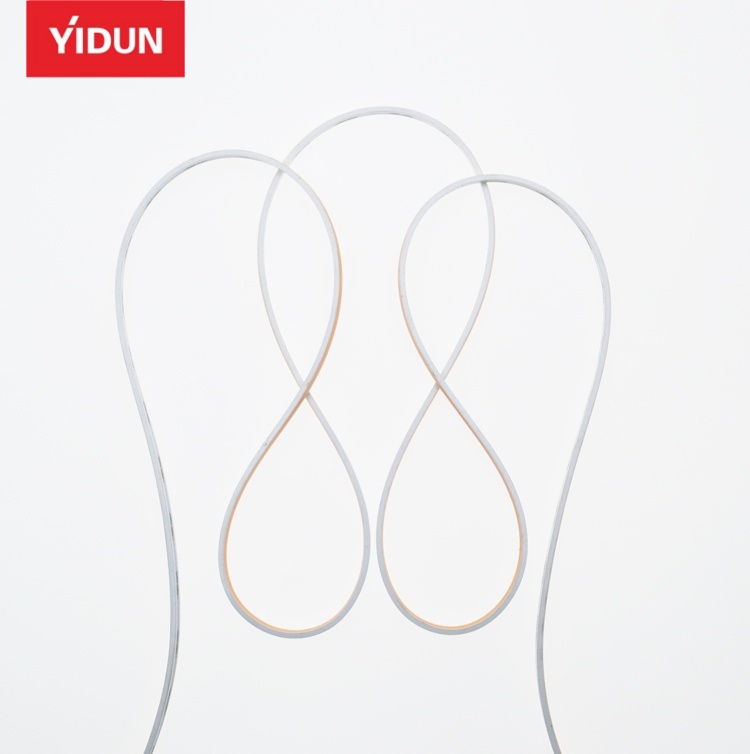

A COB waterproof LED strip (also known as COB neon light) is a flexible linear lighting solution that uses Chip-on-Board technology to create a continuous, uniform light output without visible LED dots. The integrated silicone diffuser and sealed structure provide enhanced waterproof performance, making it suitable for demanding indoor and outdoor environments.
Key Features
Continuous, dot-free illumination using COB technology

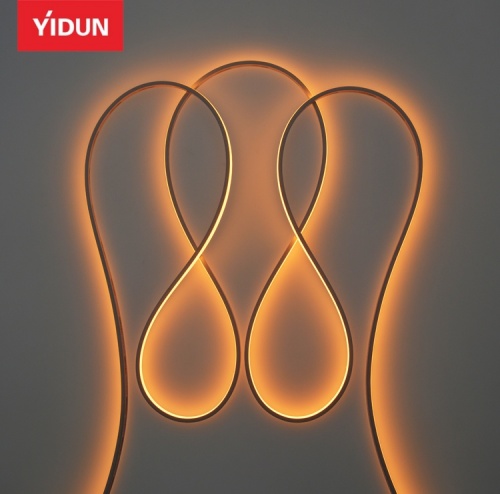

Neon-style soft light effect without traditional neon tubes
IP67 waterproof design for indoor and outdoor use

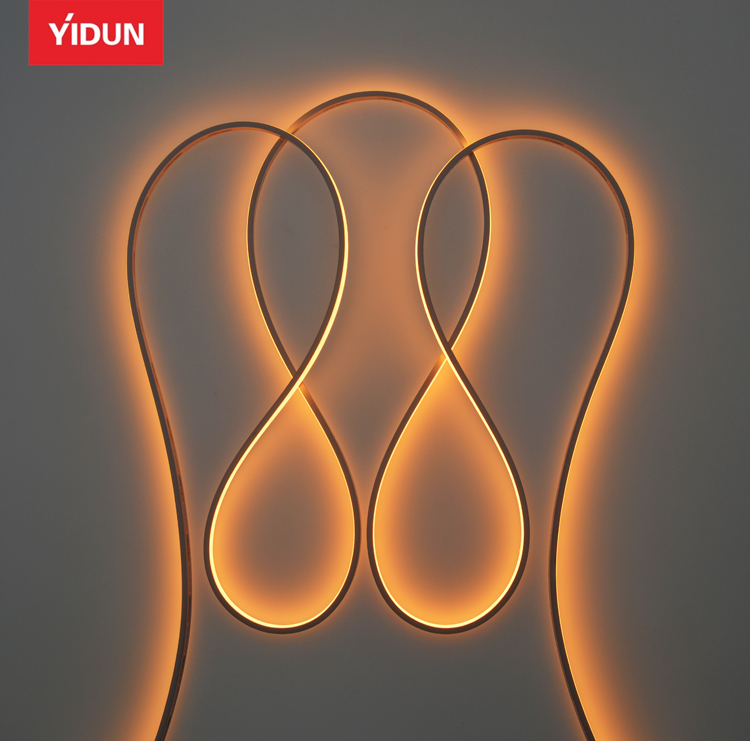

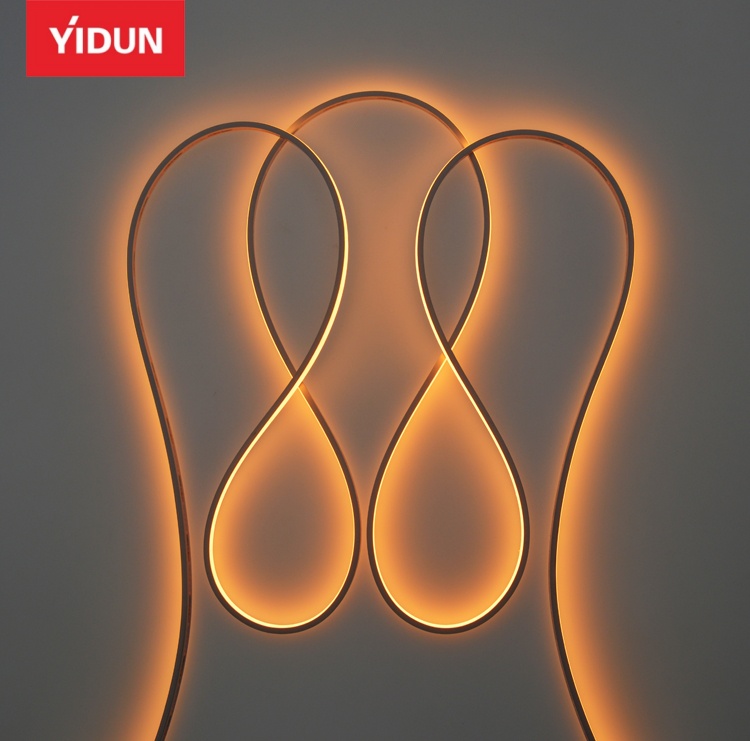

Flexible structure, suitable for curved and linear installations
High light uniformity, reducing glare and visual fatigue
Typical Applications
Architectural contour lighting
Outdoor decorative lighting

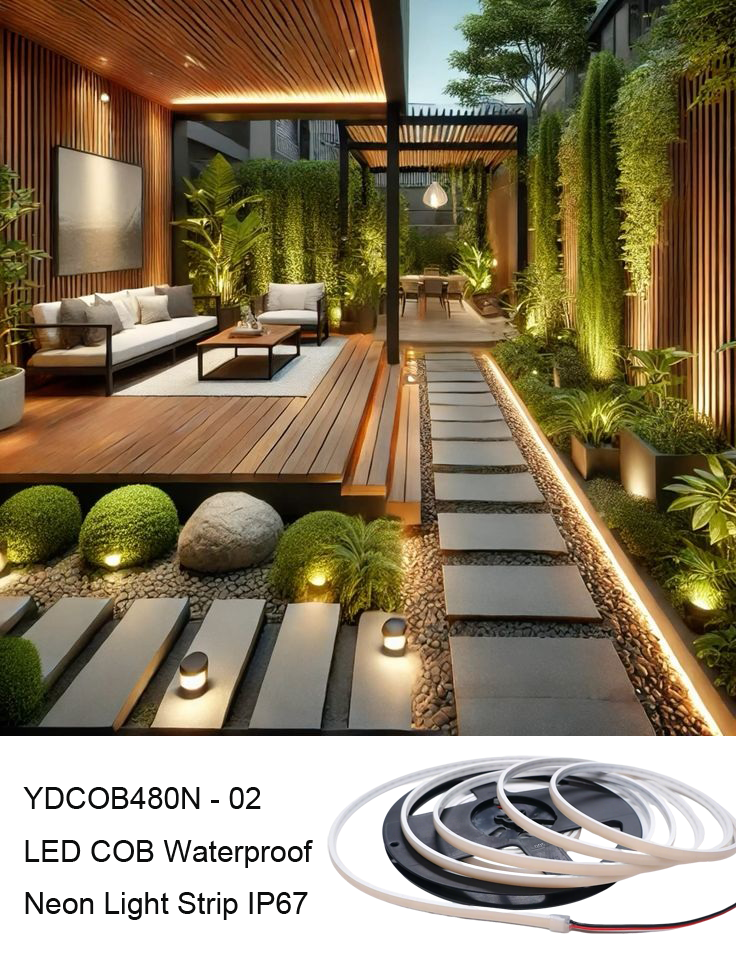

Landscape and garden lighting
Commercial signage and display lighting
Interior accent lighting for hotels, retail spaces, and showrooms
COB Neon vs Traditional LED Strip
| Item | COB Neon Light Strip | Traditional SMD LED Strip |
| Light appearance | Continuous, seamless | Visible LED dots |
| Visual comfort | Soft and uniform | Higher glare |
| Aesthetic level | High-end | Standard |
Common Installation Notes
Ensure proper power supply selection based on total strip length
Avoid excessive bending at sharp angles
Confirm sealing integrity after cutting and reconnecting
Use appropriate mounting accessories for outdoor installations
Not Recommended For
Applications requiring extremely high point brightness
Installations with frequent mechanical bending or twisting
Environments exceeding the specified operating temperature
Summary
This LED COB waterproof light strip is an ideal solution for projects that require uniform light output, modern neon-style appearance, and reliable waterproof performance. It is widely used in architectural, commercial, and decorative lighting applications.
