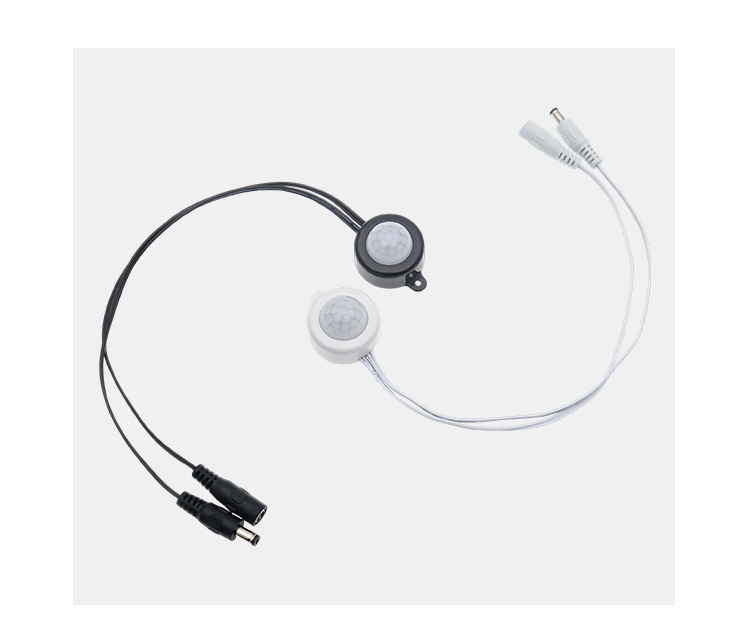

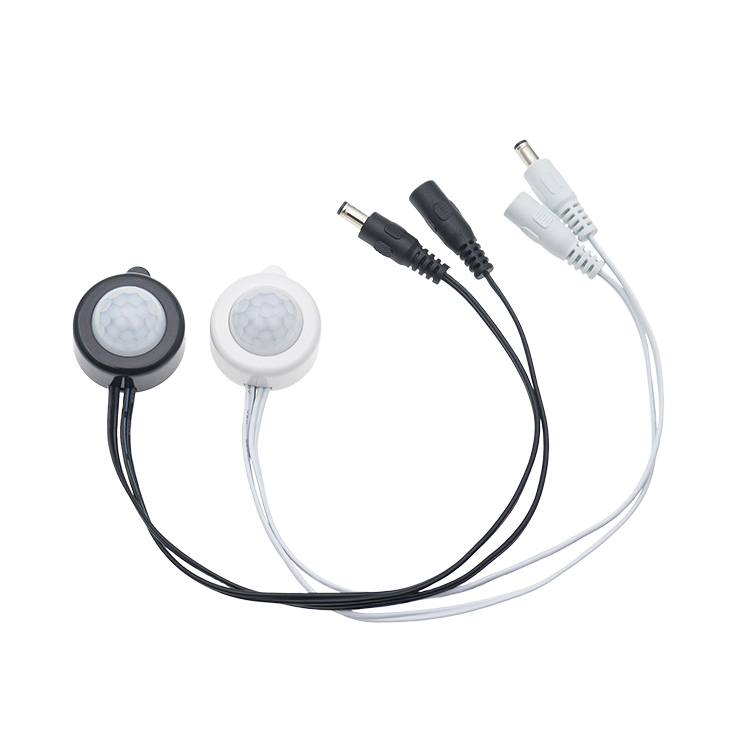

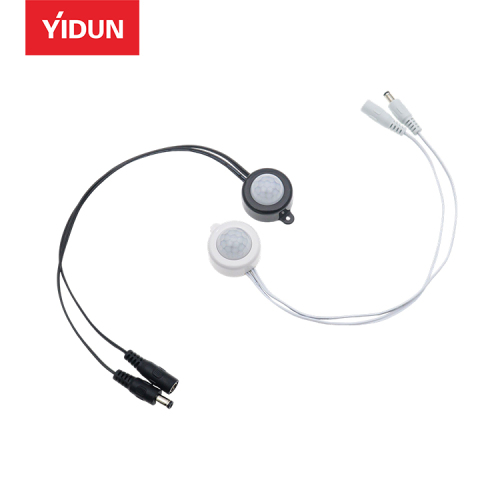

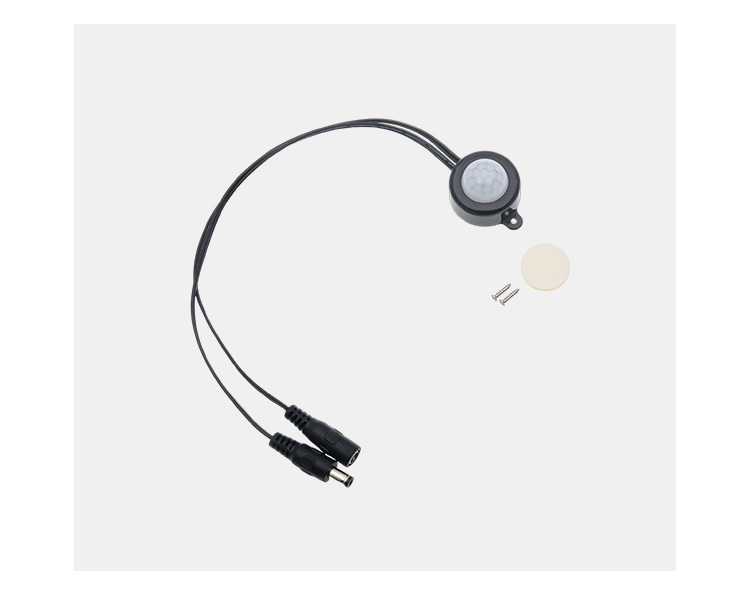

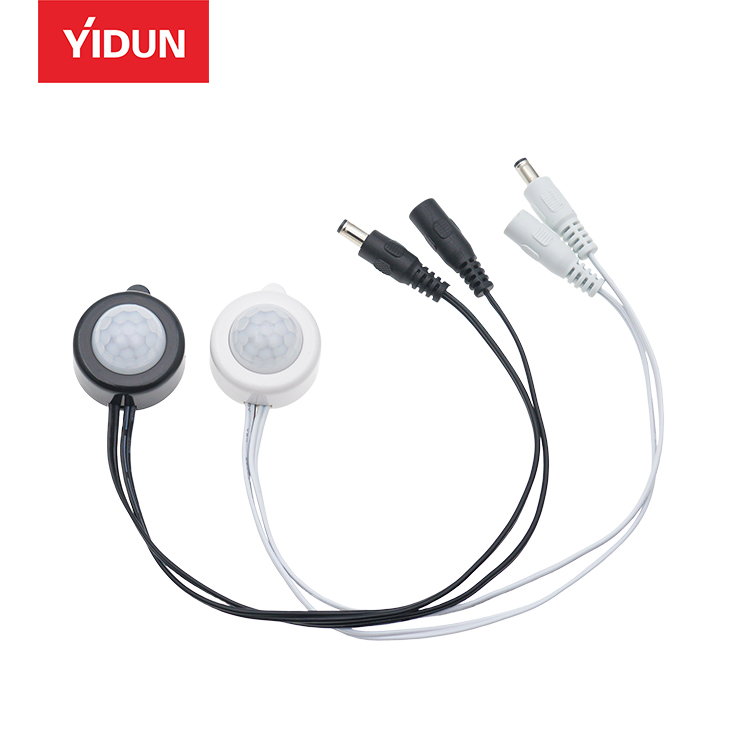

LED Human Body Infrared Sensor (TIP-2025) – DC5-24V Motion-Activated LED Control

Detailed Description

1. Product Definition
   The LED human body infrared sensor (model TIP-2025) is a motion-activated control device designed for DC5-24V LED lighting systems. Using a PIR (Passive Infrared) motion sensor, it detects human presence and automatically switches LED lights on or off, offering a convenient and energy-efficient solution for modern lighting.

2. Key Features
   • PIR motion-activated on/off control for LED lighting
   • Wide input voltage range: DC5-24V for flexible compatibility

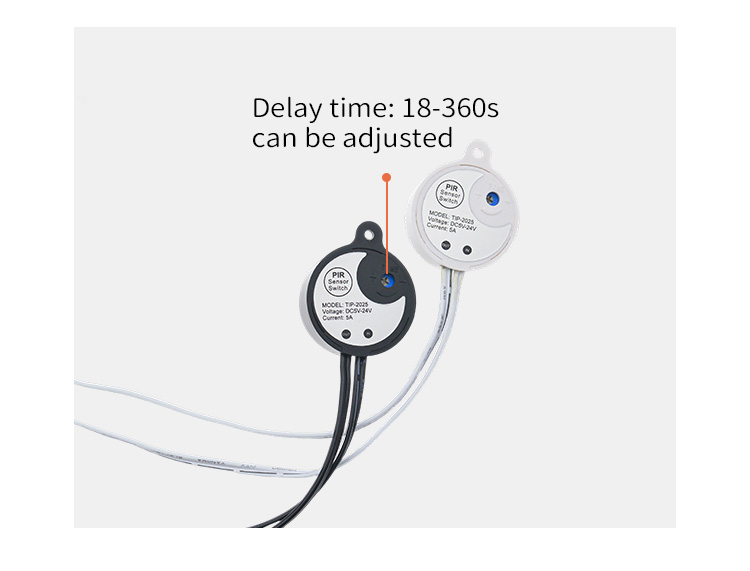

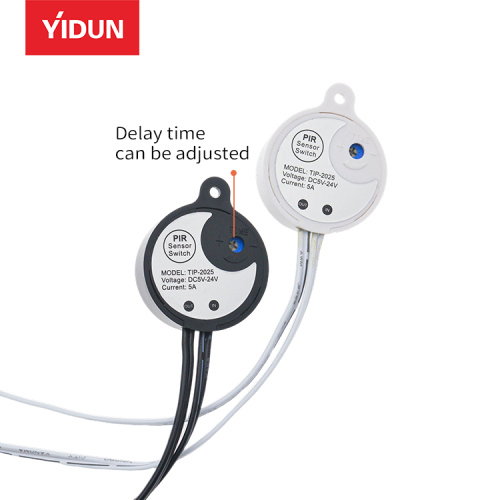

   • Adjustable induction delay time (18–360s)
   • Max current handling up to 5A

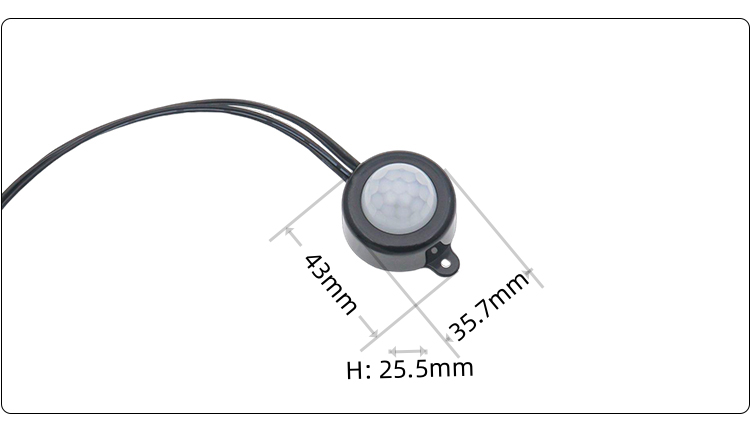

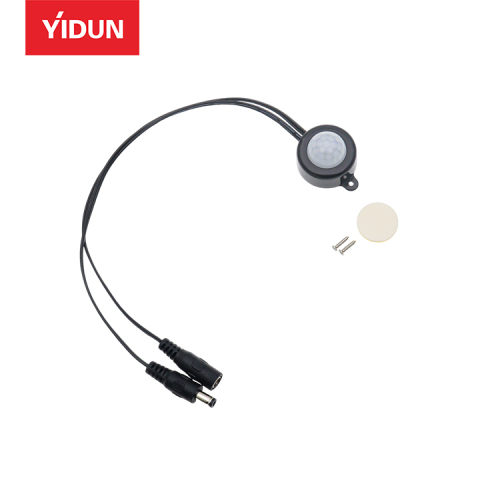

   • Compact, easy to install design

3. Typical Applications

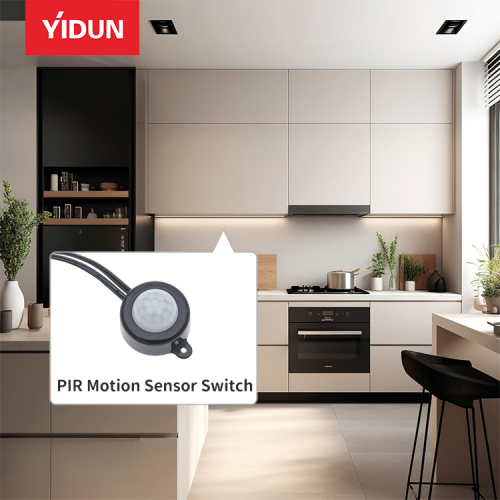

   • Cabinet and wardrobe lighting control
   • Corridor and hallway LED lighting

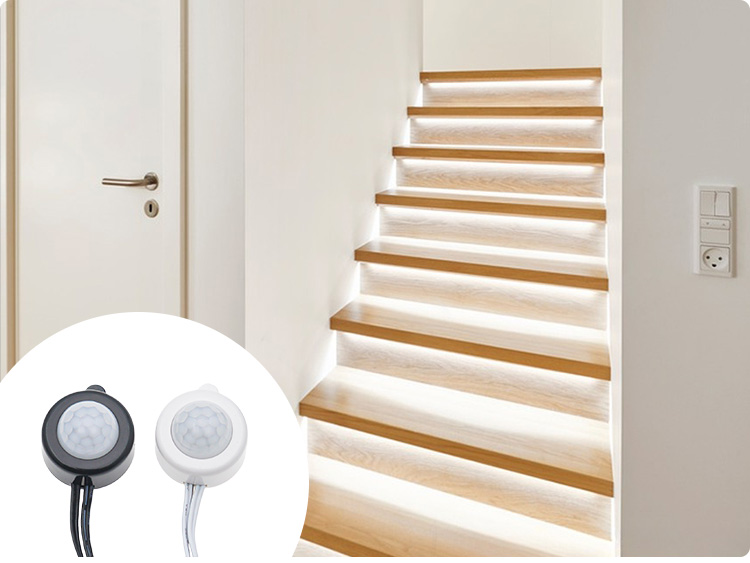

   • Stairs and landing LED systems
   • Indoor decorative LED illumination

4. Working Principle
   The built-in PIR sensor detects changes in infrared energy caused by moving objects or people. When motion is detected within its sensing range (typically 3-5m), it automatically activates the connected LED lights. After a period with no motion, the lights switch off to save energy.

5. Installation & Usage Notes

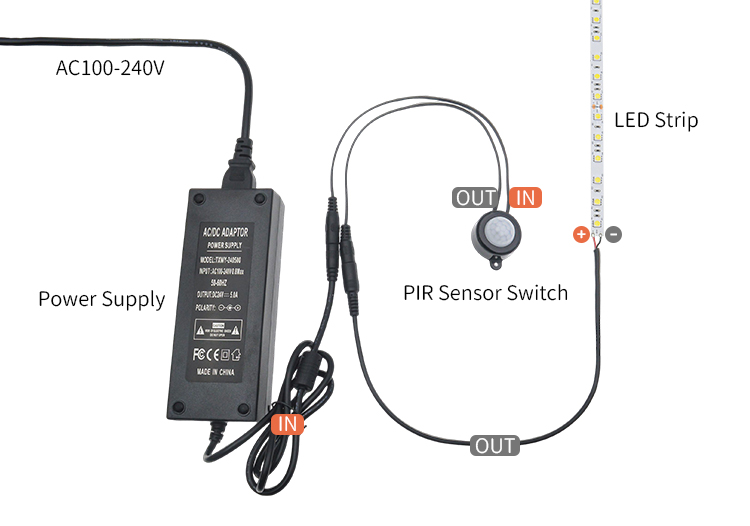

   • Connect only to a proper DC5-24V LED power supply — do NOT connect directly to mains AC power.
   • Position the sensor where it can reliably detect motion.
   • Adjust the delay time according to user preference or environment.

6. Summary
   The TIP-2025 LED human body infrared sensor provides intelligent, automatic lighting control for LED systems in cabinets, wardrobes, corridors, and stairs, enhancing convenience and energy efficiency in everyday lighting applications.
