Sensor Mode:
|
YDRL-MK03
|
|
Voltage:
|
DC 6-24V
|
|
Power:
|
6V 30W/12V 60W/24V 100W
|
|
Load Current:
|
MAX 5A
|
|
G.W.
|
31g
|
|

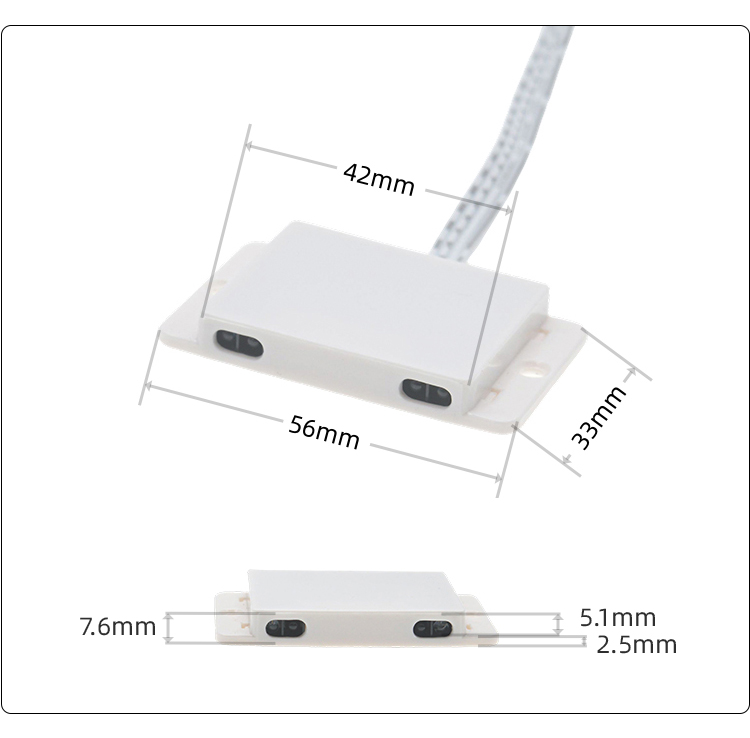

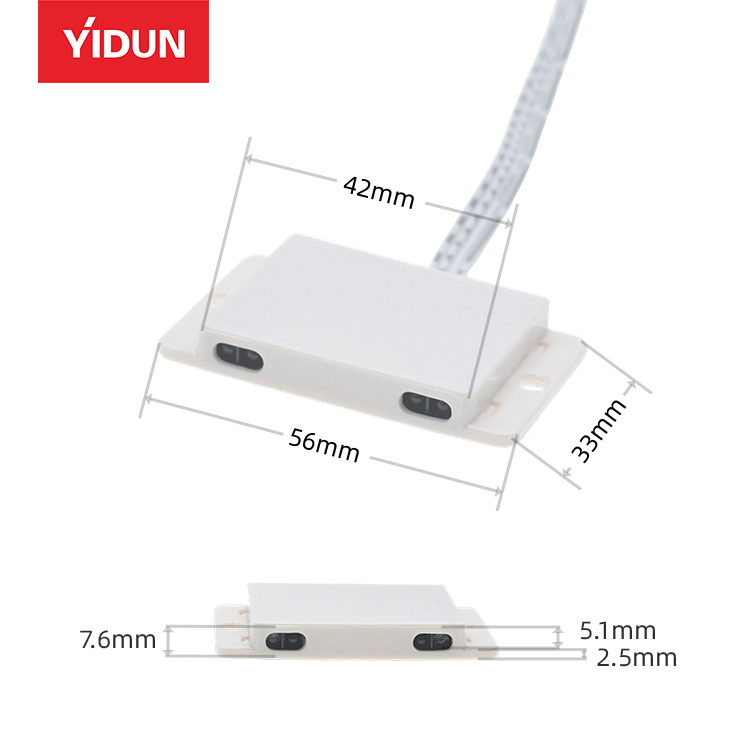

Size:
|
56*33*7.6mm
|
|
Length:
|

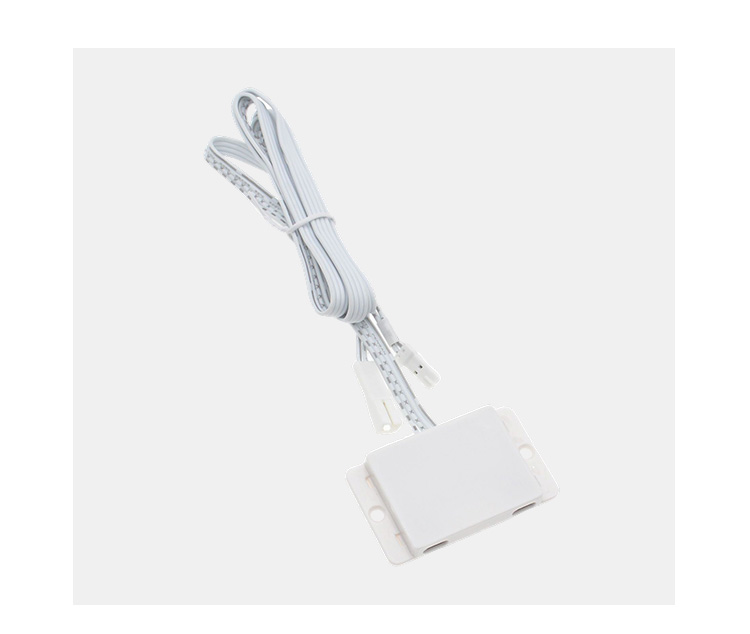

Input Length 104mm, Output Length 100cm
|
|
Application:
|

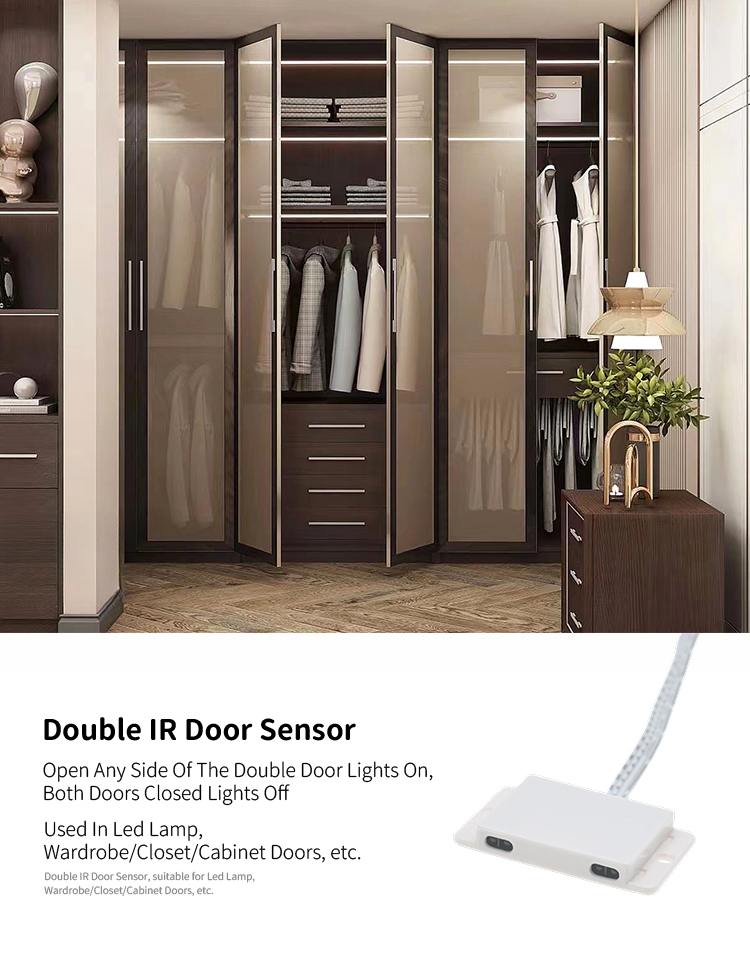

Wardrobe/Closet/Cabinet Doors, etc.
|
Detailed Description
-
Product Definition

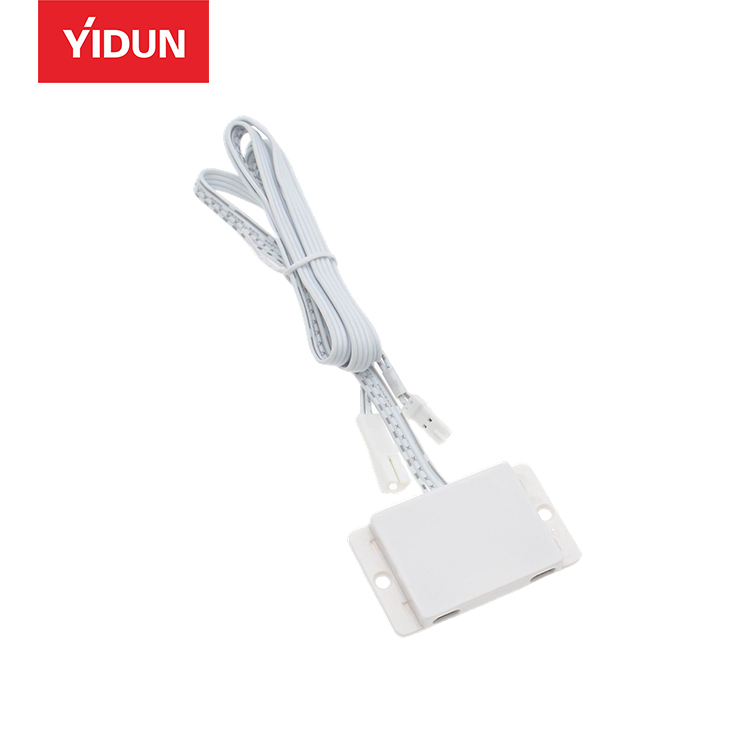

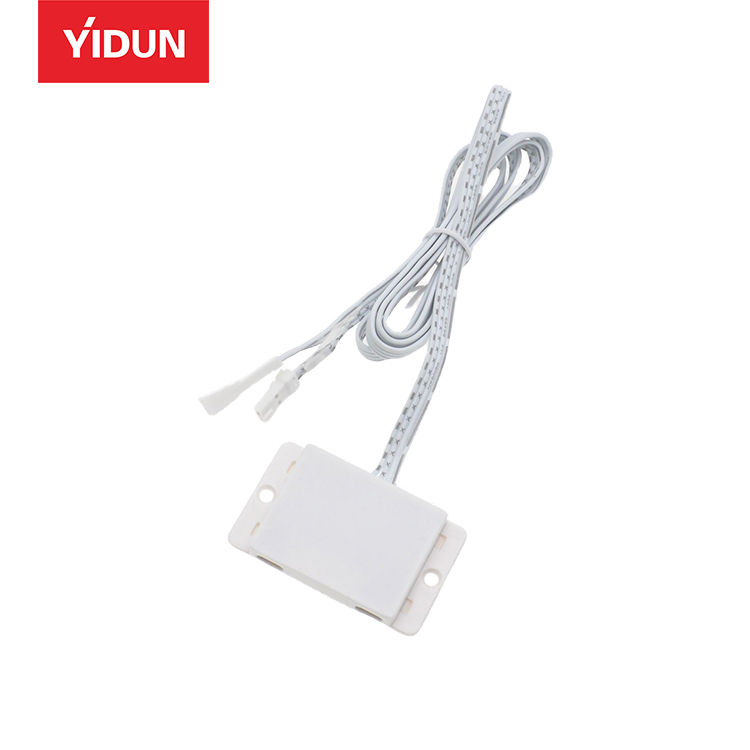

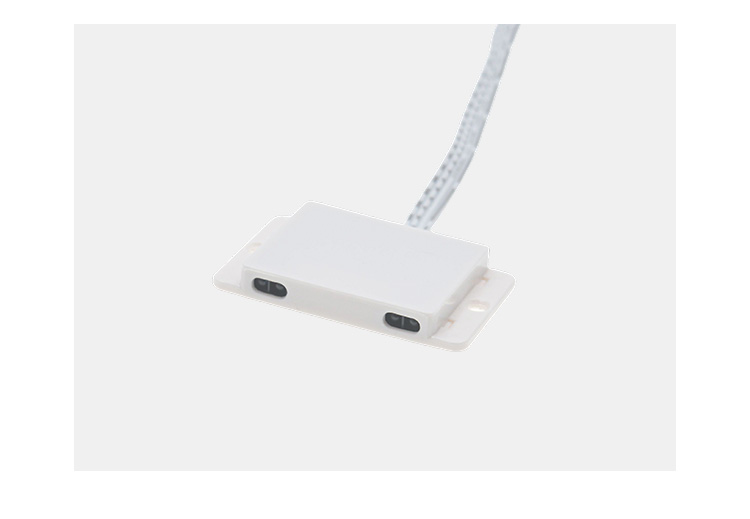

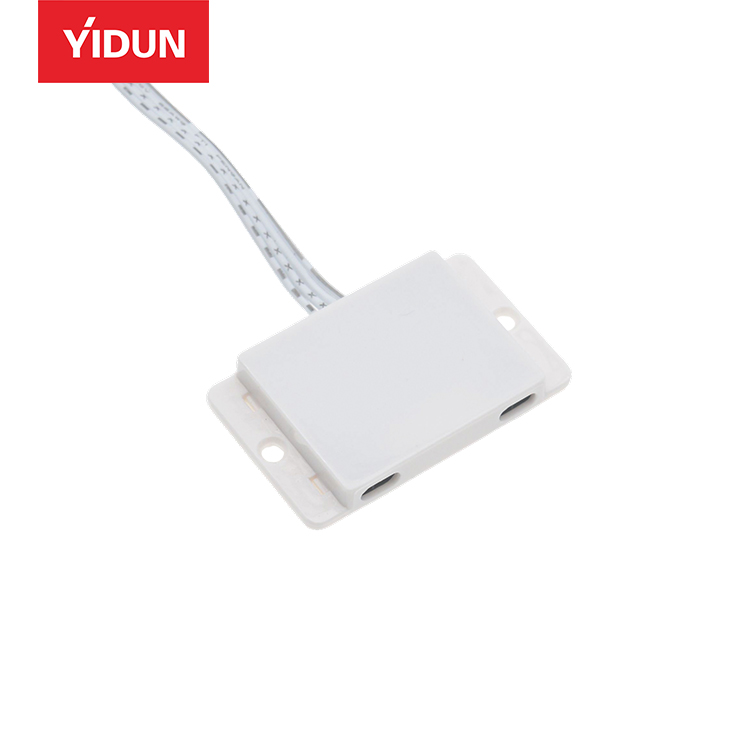

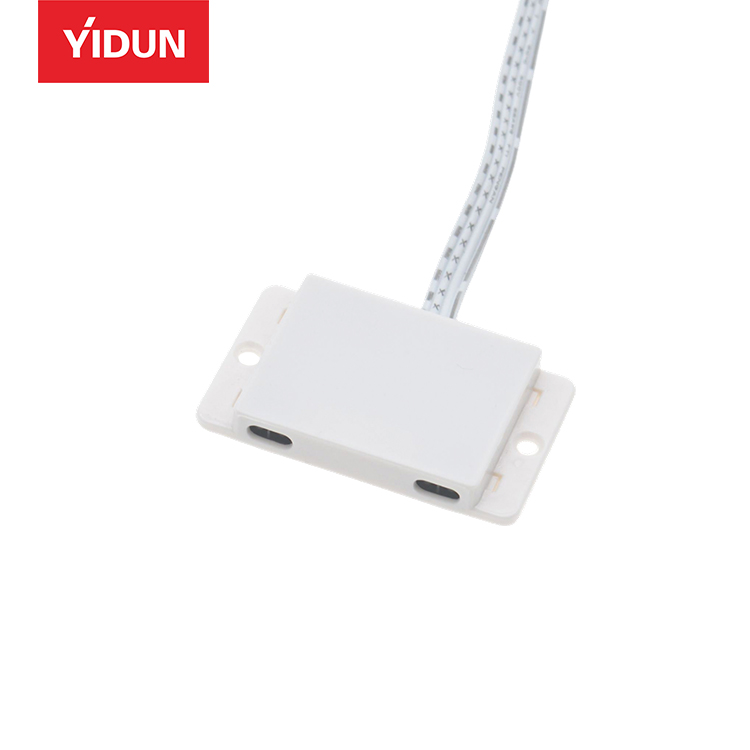

The LED IR door control switch (model YDRL‑MK03) is a passive infrared (IR) sensor‑based lighting control device designed for DC6‑24V LED systems. It detects door movement and automatically switches connected LED lights on or off, providing convenient hands‑free control for wardrobe, closet, and cabinet lighting applications.
-
Key Features
• Infrared door motion detection for automatic lighting control
• Compatible with DC6‑24V LED lighting systems
• Max load current up to 5A for varied LED configurations
• Compact, concealed design for furniture installation
• Energy‑saving, hands‑free operation for everyday use
-
Typical Applications

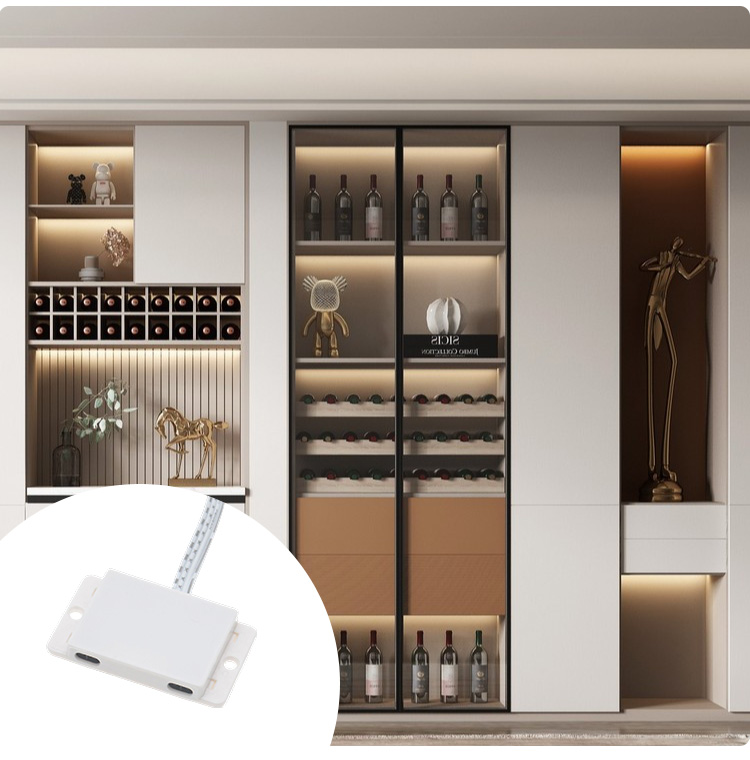

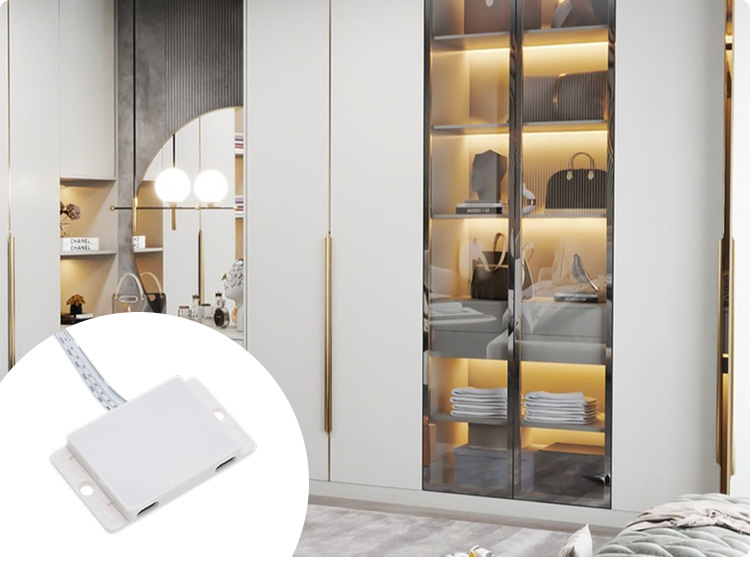

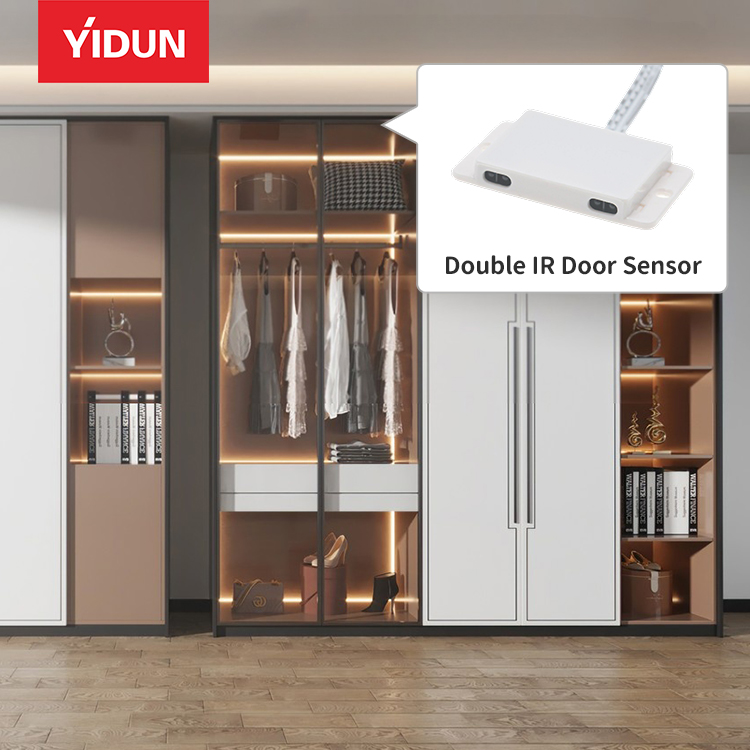

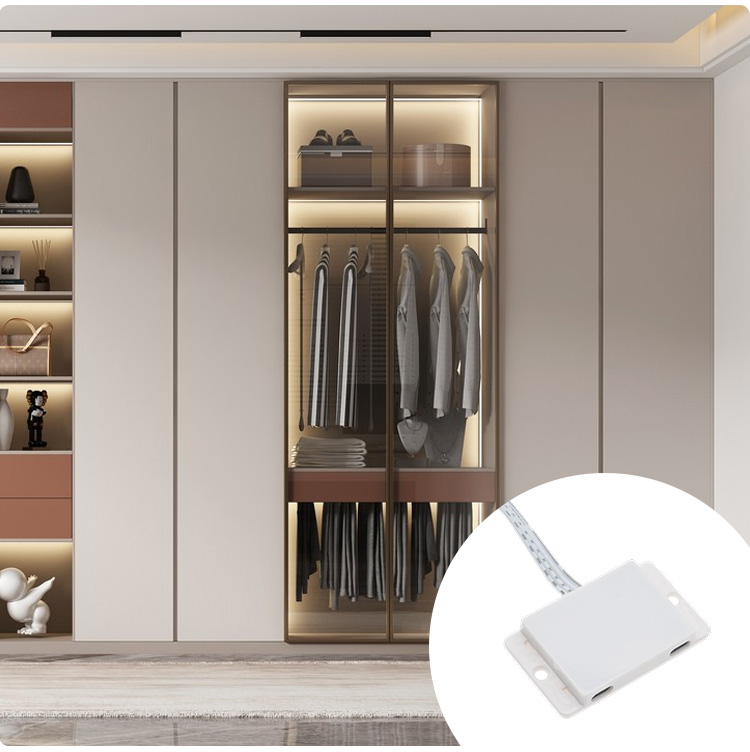

• Wardrobe and closet LED lighting control
• Cabinet or display lighting activation
• Under‑shelf LED lighting systems
• Indoor LED accent lighting for furniture and storage spaces
-
Working Principle
The IR sensor detects changes in infrared energy when a door is opened. Upon detection, it triggers the LED lighting to turn on. When no door movement is detected, the lights turn off after a short delay, conserving energy while enhancing usability.
-
Installation & Usage Notes

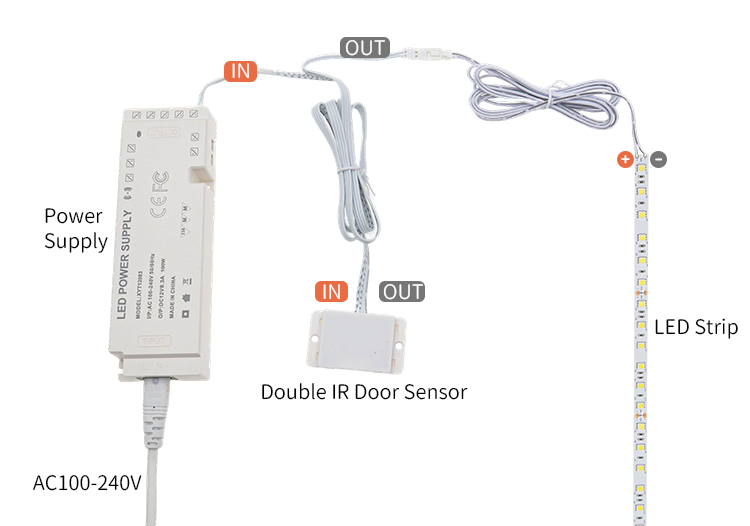

• Install only with a suitable DC6‑24V LED power supply — do NOT connect directly to high‑voltage mains.
• Place the sensor where door movement can be reliably detected.
• Verify the load and wiring polarity for stable, reliable operation.
-
Summary
The YDRL‑MK03 LED IR door control switch delivers automatic, motion‑activated LED lighting control that enhances convenience, safety, and energy efficiency in wardrobe, cabinet, and closet environments.
To meet your needs for cabinet and wardrobe lighting, we offer a range of smart LED switches suitable for both 12V and 24V power sources. Whether it's an LED cabinet light or an LED wardrobe light, our switch designs cover various operating methods, ensuring your lighting experience is more convenient and flexible.
LED Cabinet Light Switch Series:
LED Cabinet Switch: Specifically designed for 12V and 24V, providing reliable power control for your cabinets to ensure bright illumination.
LED Cabinet Light Hand Sweep Switch: Utilizing advanced hand sweep technology, a gentle sweep easily lights up the LED cabinet light, offering simple operation.
LED Cabinet Light Touch Switch: Modern touch-sensitive design, a light touch achieves the on/off control of the LED cabinet light, providing a convenient user experience.
LED Cabinet Light Motion Sensor Switch: Integrated with motion sensor technology, intelligently sensing your presence to offer smart lighting control for your cabinet.
LED Cabinet Light Radar Sensor Switch: Incorporating radar sensor technology for quicker, more precise detection of environmental changes, creating a more efficient lighting system for your cabinet.
LED Wardrobe Light Switch Series:
LED Wardrobe Switch: Suitable for both 12V and 24V, providing reliable power control for wardrobe lighting, showcasing your clothing in bright illumination.
LED Wardrobe Light Hand Sweep Switch: Advanced hand sweep technology instantly adds brightness to your wardrobe, unique and convenient.
LED Wardrobe Light Touch Switch: Modern touch-sensitive design for easy control of wardrobe lighting, creating a stylish clothing display space.
LED Wardrobe Light Motion Sensor Switch: Integrated with motion sensor technology, intelligently sensing your needs and providing thoughtful lighting for your wardrobe.
LED Wardrobe Light Radar Sensor Switch: Utilizing radar sensor technology for more intelligent and efficient control of wardrobe lighting, creating an ideal environment for showcasing your clothing.
Whether you choose an LED cabinet light switch or an LED wardrobe light switch, we are committed to providing advanced, convenient, and reliable solutions to add vibrancy to your home environment.
