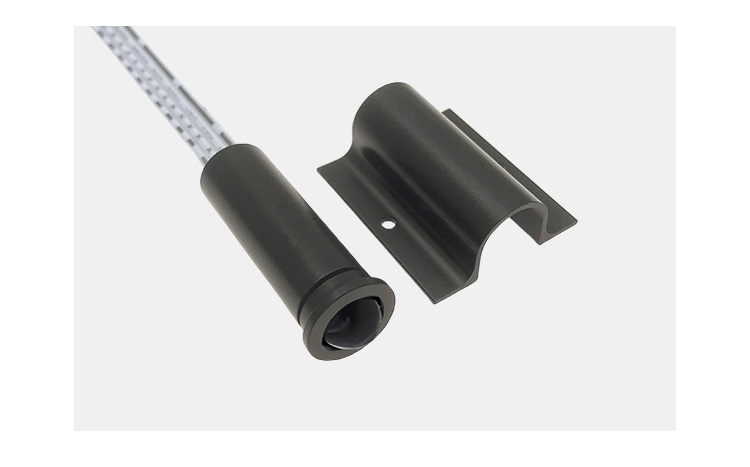

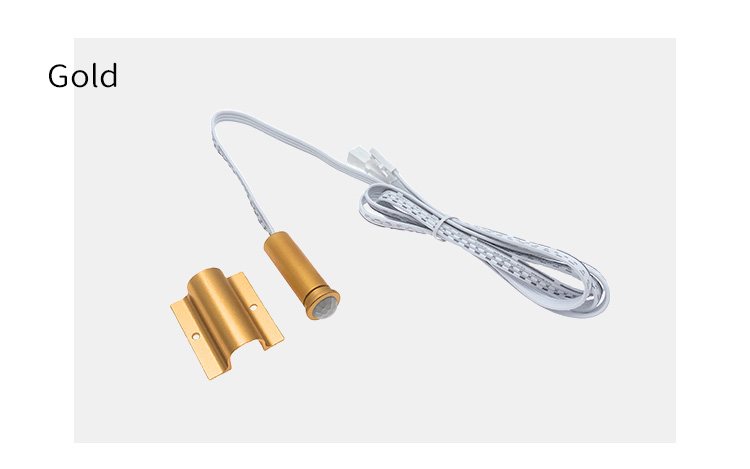

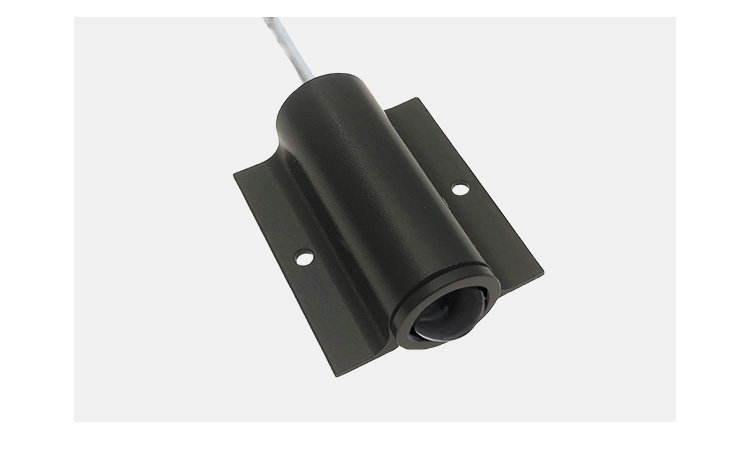

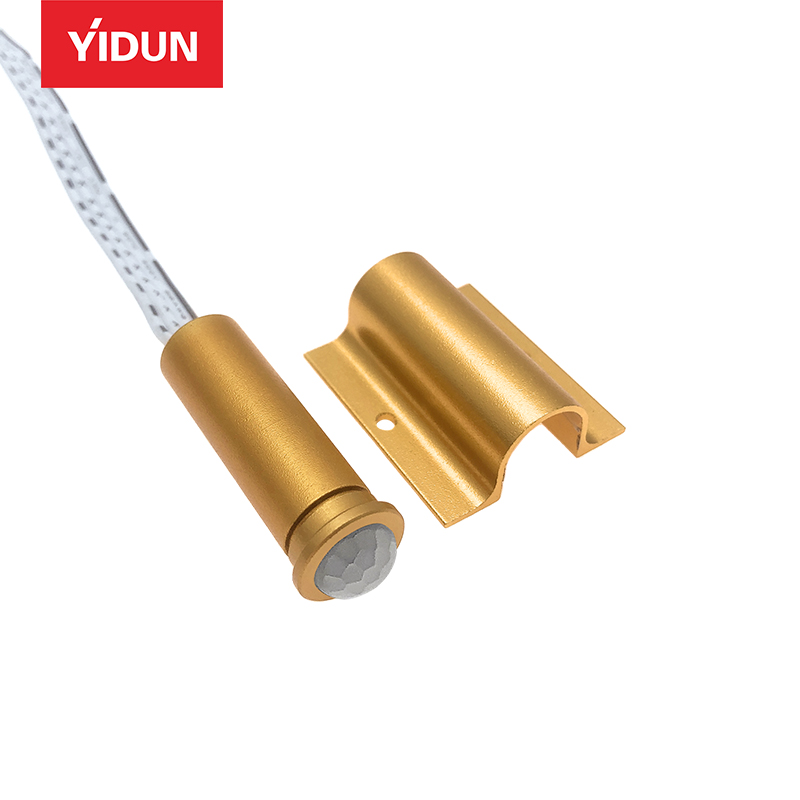

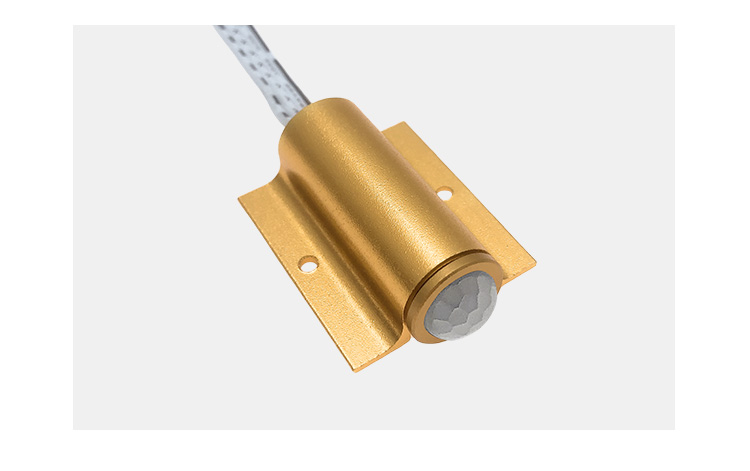

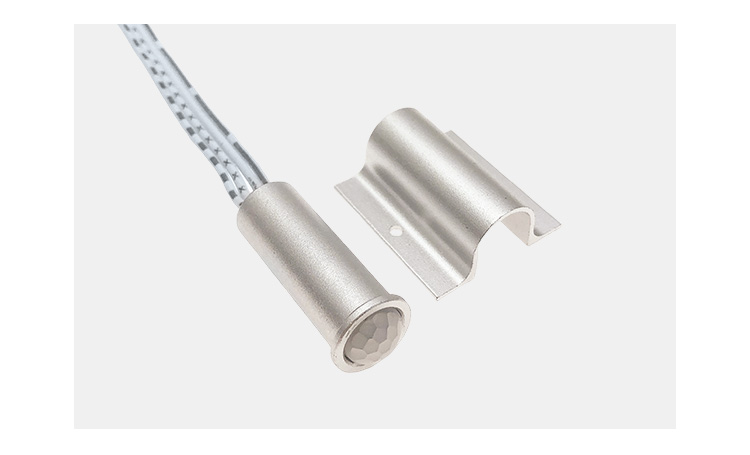

LED Human Body PIR Sensor Switch (Model YD‑PIR‑D01) – Motion‑Activated LED Control Switch

Product Definition

The LED human body PIR sensor switch (Model YD‑PIR‑D01) is a motion‑activated controller designed to sense human movement using passive infrared (PIR) technology. When motion is detected, it automatically switches connected LED lights on or off — providing intelligent, hands‑free LED lighting control.

Key Features

• PIR motion detection for automatic LED on/off control
• Compatible with DC12 V–24 V constant‑voltage LED systems
• High load capacity (up to 5 A / 60 W) suitable for many LED lights
• Long sensing distance (up to approx. 3 m) for reliable motion detection

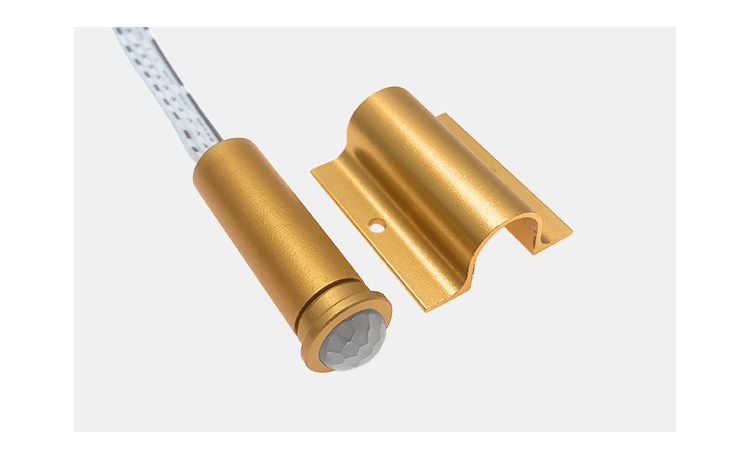

• Compact sensor body with easy installation (Φ12 mm mounting hole)

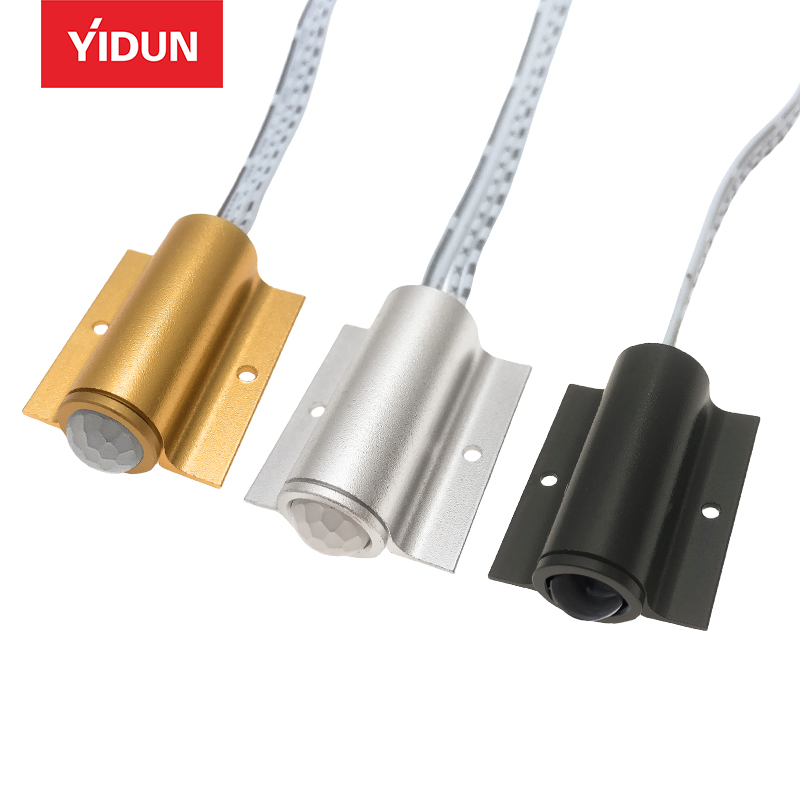

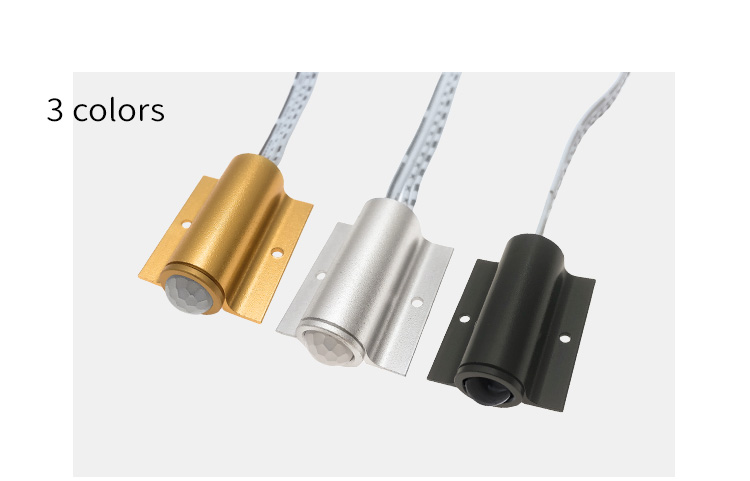

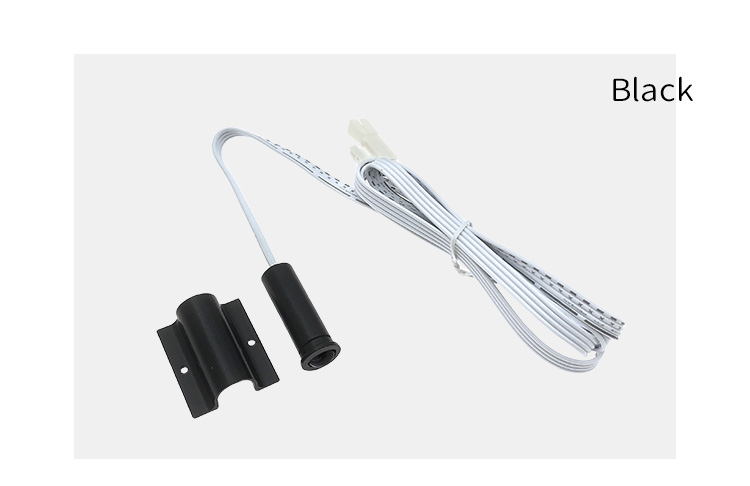

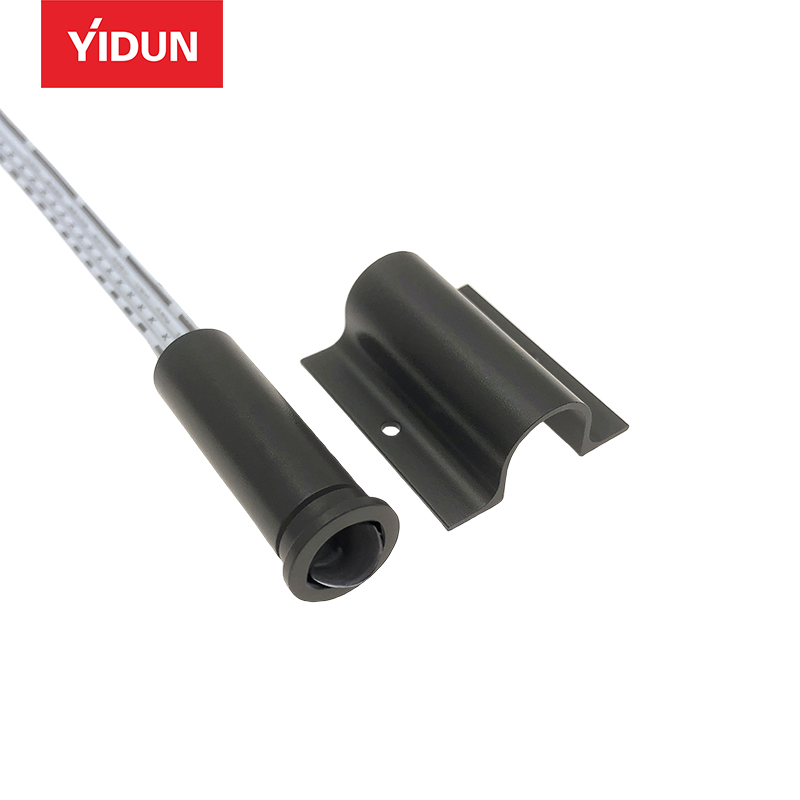

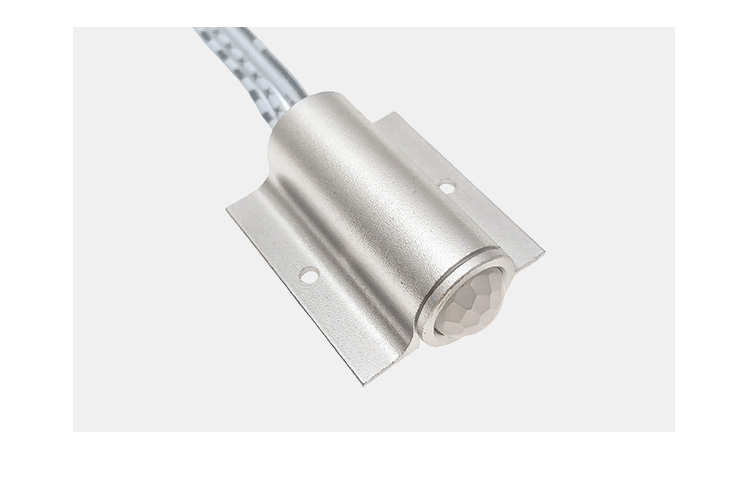

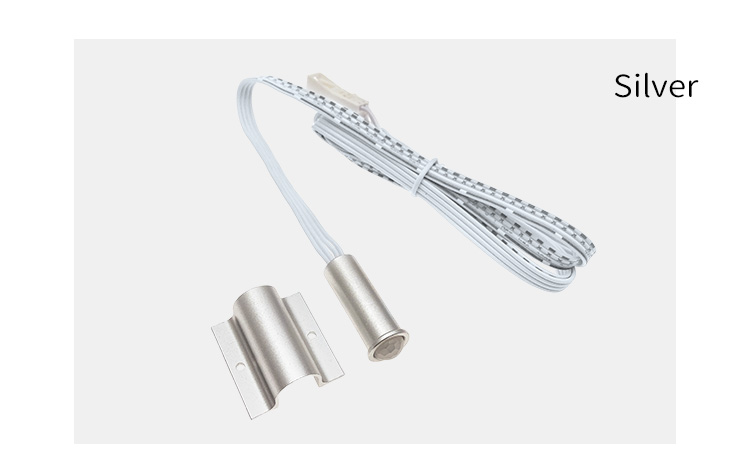

• Available in Black or Silver finish options

Technical Specifications

• Model: YD‑PIR‑D01 (Black or Silver)
• Type: Human Body PIR Sensor Switch
• Input Voltage: DC12 V–24 V Constant Voltage
• Rated Power: ≤ 60 W
• Rated Current: ≤ 5 A
• Sensor Distance: Approx. 3 m
• Hole Size: Φ12 mm

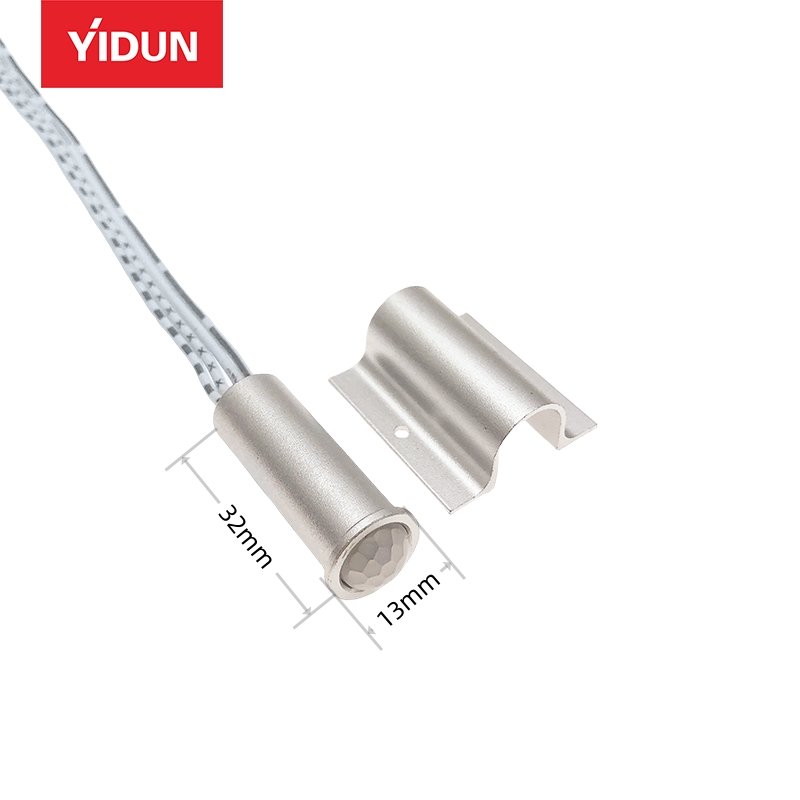

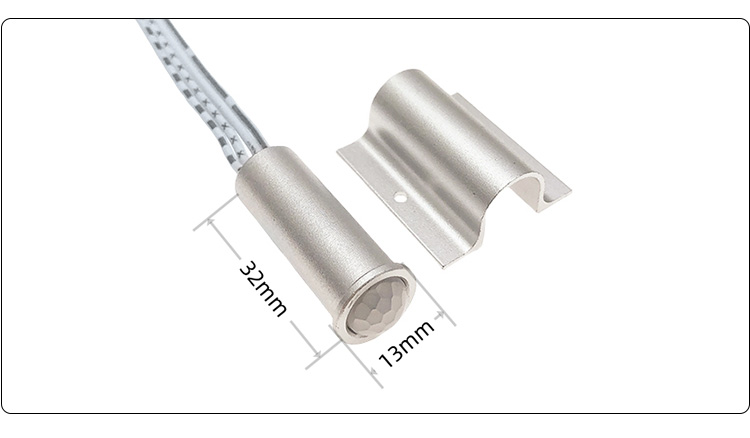

• Sensor Size: ≈ 32 × 13 mm
• Warranty: 2 years
• Suitable LEDs: Light bars, cabinet lights, wardrobe lights

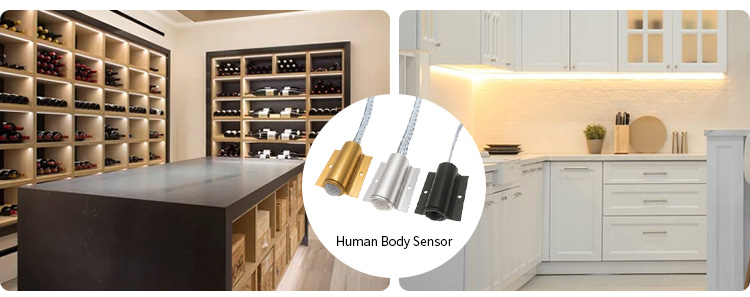

Typical Applications

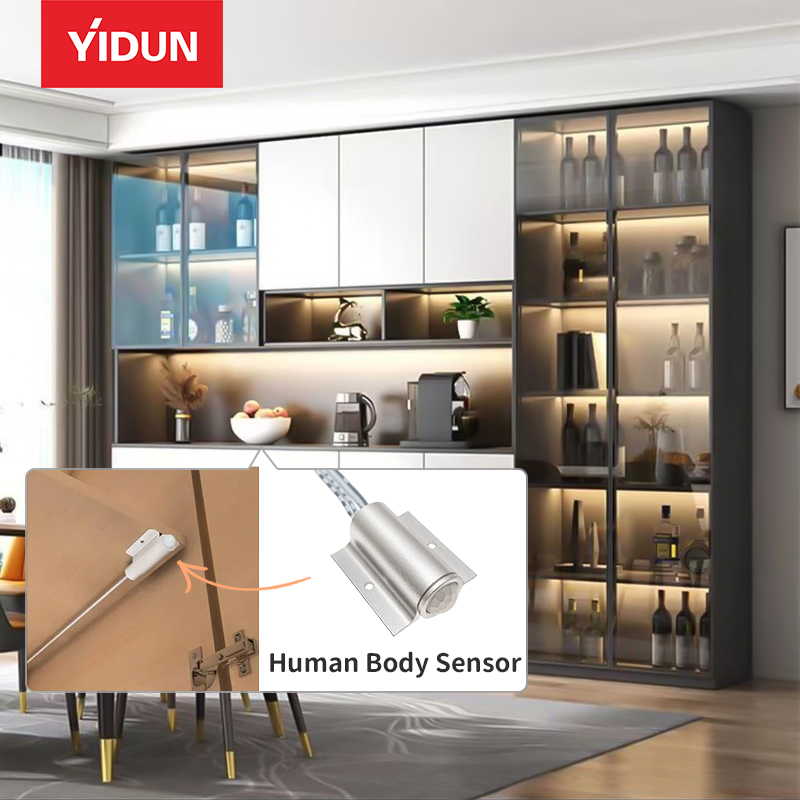

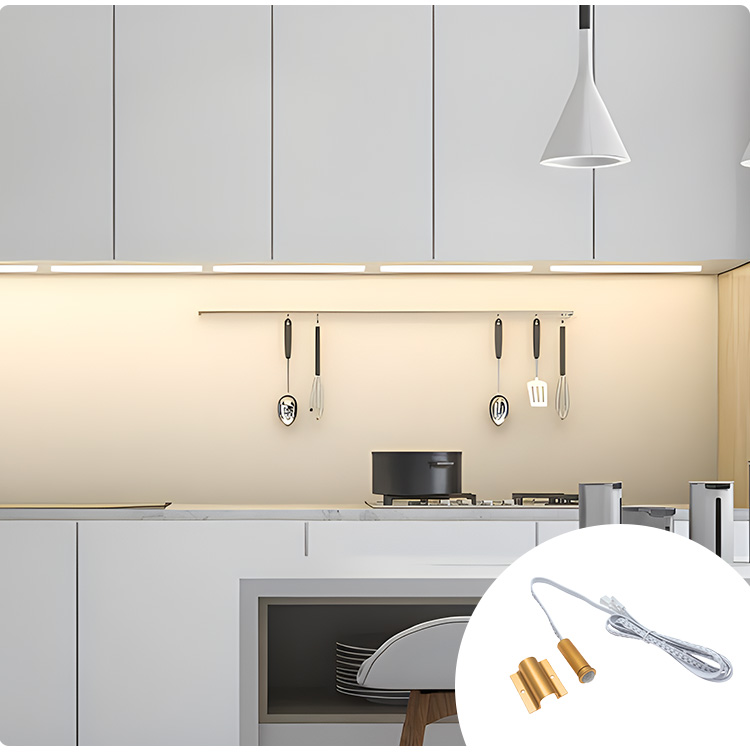

• LED cabinet lighting automation

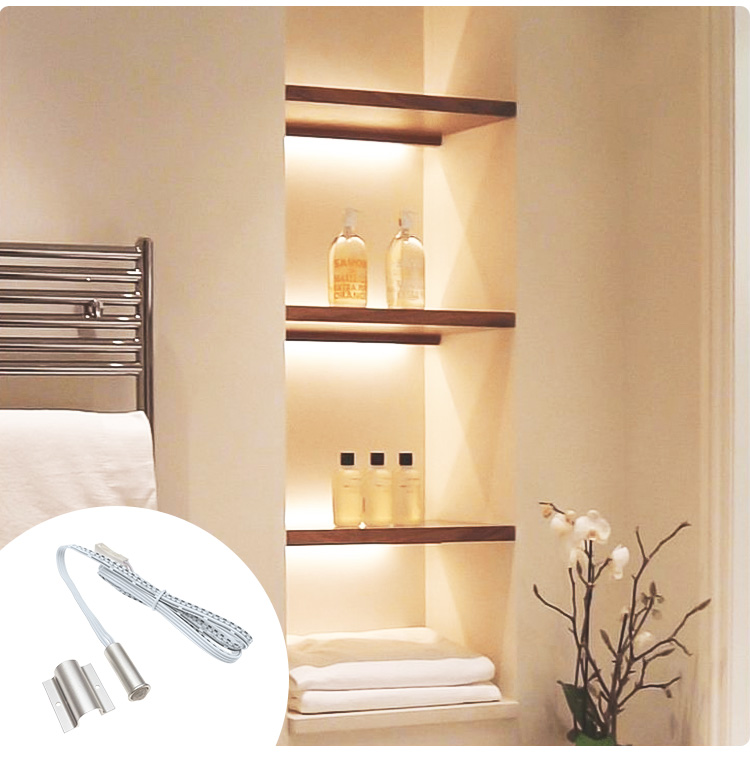

• Wardrobe and closet lighting
• LED furniture lighting solutions
• Under‑cabinet and display lighting control

Working Principle

This sensor uses PIR (Passive Infrared) technology to detect the change in infrared radiation caused by human movement within its sensing range. When motion is detected, the sensor sends a signal to turn the connected LED lights on; when no movement is sensed for a period, the LED lights turn off again, helping save energy and enhancing convenience.

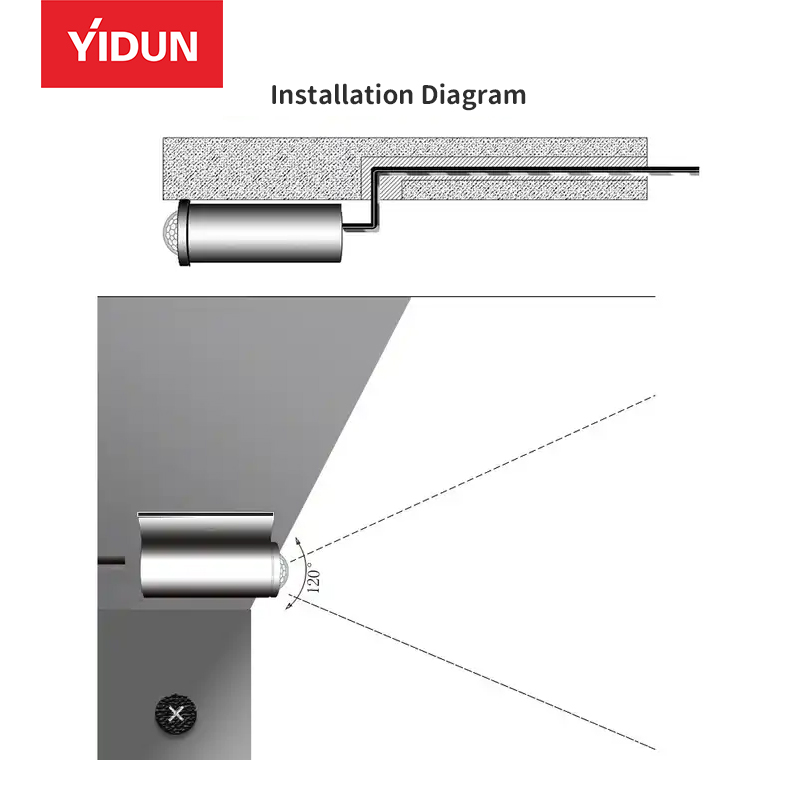

Installation & Usage Notes

• Pair with a DC12 V–24 V constant voltage power supply — do NOT connect directly to AC mains without a suitable driver.
• Ensure the total connected LED load does not exceed 5 A / 60 W.

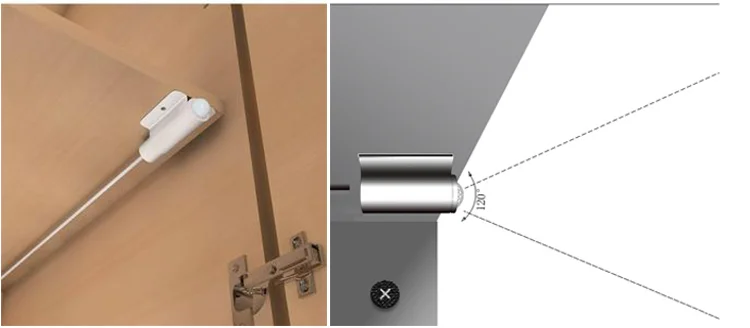

• Mount the sensor where detection is unobstructed.
• Avoid direct moisture or water exposure.

Benefits Summary

The YD‑PIR‑D01 LED human body PIR sensor switch delivers smart, motion‑activated LED lighting control with reliable detection and easy installation — ideal for cabinets, wardrobes, closets, and other indoor LED lighting applications.
