LED Human Body PIR Sensor Switch (Model YD‑PIR‑D01) – Motion‑Activated LED Control Switch

Product Definition

The LED human body PIR sensor switch (Model YD‑PIR‑D01) is a motion‑activated controller designed to sense human movement using passive infrared (PIR) technology. When motion is detected, it automatically toggles connected LED lighting on or off, providing smart and hands‑free lighting control for various LED applications.

Key Features

• PIR motion detection for automatic on/off LED control
• Compatible with low‑voltage DC LED systems (12 V–24 V constant voltage)
• Supports up to 60 W power and 5 A current for LED loads
• Approx. 3 m sensing distance offers reliable detection
• Compact sensor body with Φ12 mm hole size for easy installation

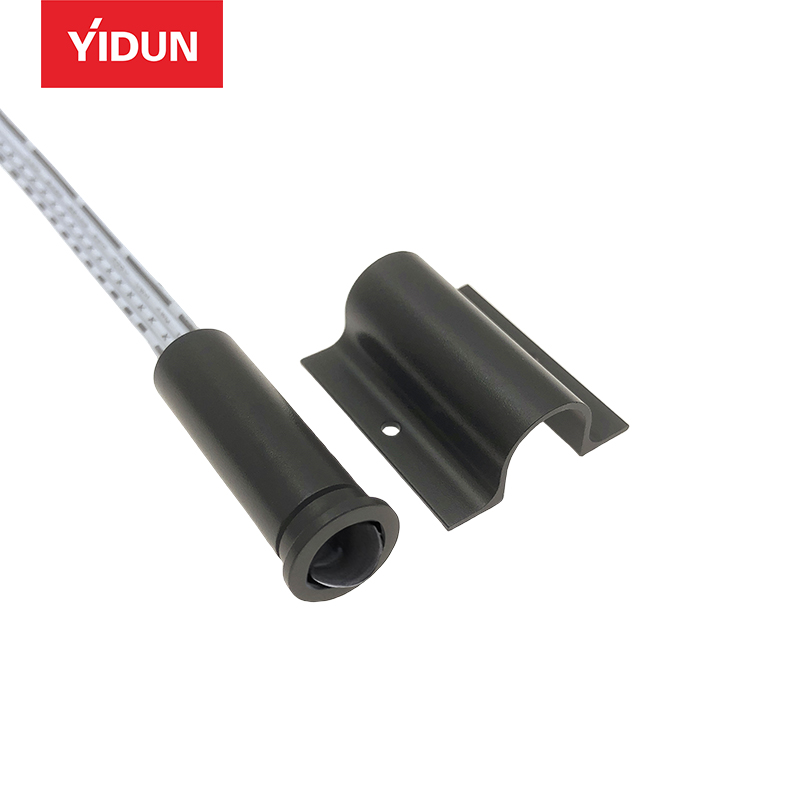

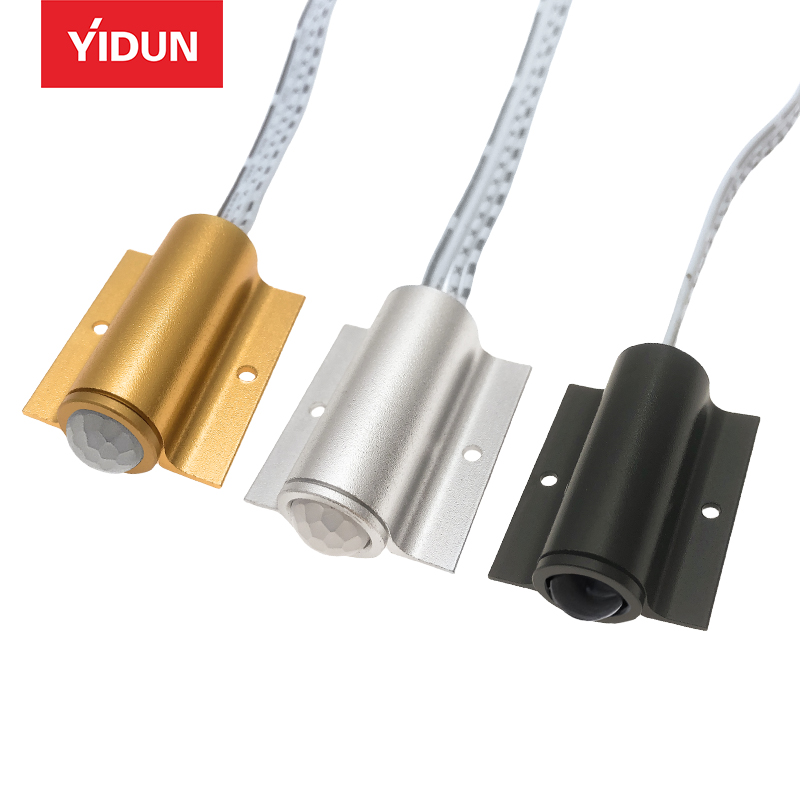

• Available in Black and Silver finishes
• 2‑year warranty included

Technical Specifications

• Model: YD‑PIR‑D01 (Black or Silver)
• Type: Human Body PIR Sensor Switch
• Input Voltage: DC12 V–24 V (constant voltage)
• Rated Power: 60 W
• Rated Current: 5 A
• Sensor Distance: Approx. 3 m
• Hole Size: Φ12 mm

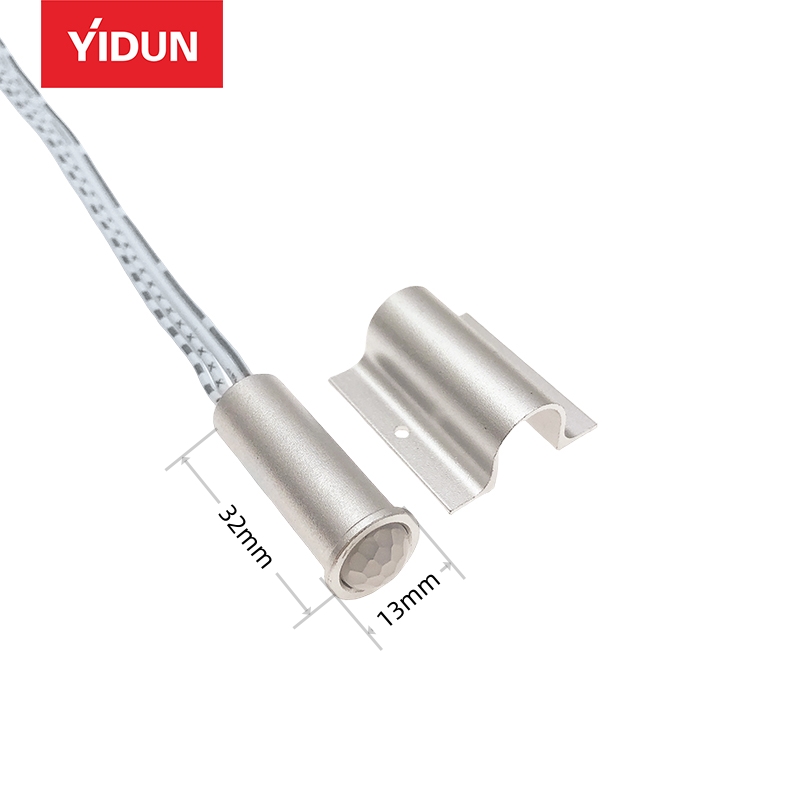

• Sensor Size: 32 × 13 mm
• Warranty Period: 2 years

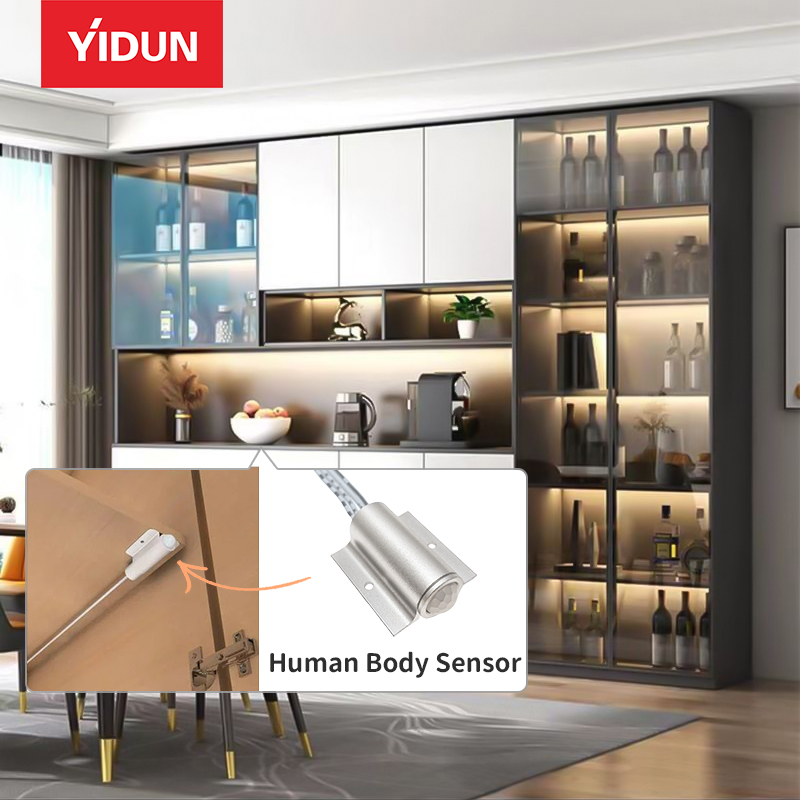

• Application Areas: Under‑cabinet lighting, wardrobe lighting, closets, furniture LED systems

Typical Applications

• LED cabinet lighting automation
• Wardrobe and closet LED lighting control
• LED furniture and display lighting
• Smart LED lighting solutions in residential and commercial interiors

Working Principle

Using passive infrared (PIR) detection, this sensor monitors the infrared heat changes caused by human movement within its sensing range. When motion is detected, it triggers the LED load to turn on instantly; after a period with no motion, the lights switch off, saving energy and offering hands‑free convenience.

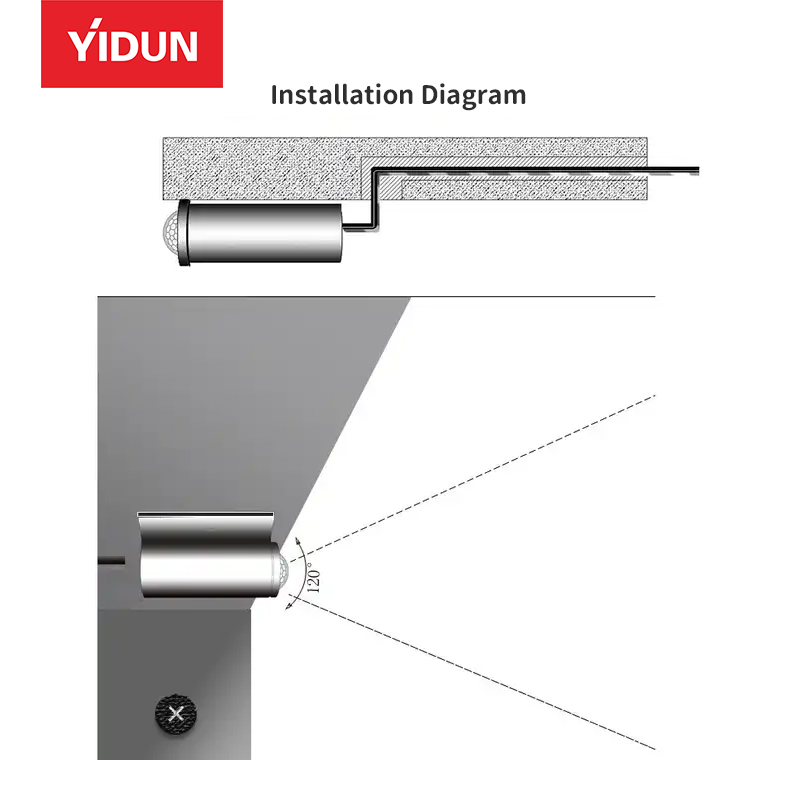

Installation & Usage Notes

• Only use with a DC12 V–24 V constant‑voltage LED driver — do NOT connect directly to AC mains.
• Ensure the connected LED load does not exceed 5 A / 60 W.
• Install where motion detection won’t be blocked by obstacles.
• Avoid exposure to direct water, moisture, or condensation.

Benefits Summary

The YD‑PIR‑D01 LED human body PIR sensor switch provides reliable, motion‑activated LED lighting control with long sensing distance, strong load capacity, and compact design — perfect for smart LED lighting in cabinets, wardrobes, closets, and other indoor areas.
